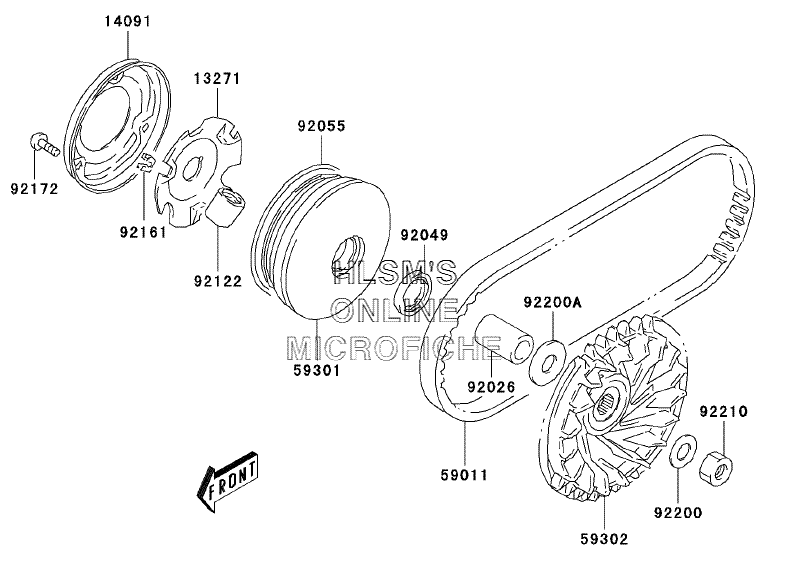

DRIVE CONVERTER для Kawasaki KFX80 (KSF80-A2) - 2004 года выпуска`
-
№АртикулНазвание
-
1327113271-S040 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1409114091-S076 COVER, MOVABLE DRIVECOVER, MOVABLE DRIVE
-
5901159011-S003 BELT, DRIVEBELT, DRIVE
-
5930159301-S003 SHEAVE-MOVABLESHEAVE-MOVABLE
-
5930259302-S007 SHEAVE-COMP, FIXED DRIVESHEAVE-COMP, FIXED DRIVE
-
9202692026-S070 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
9204992049-S035 SEAL-OIL, MOVABLE DRIVESEAL-OIL, MOVABLE DRIVE
-
9205592055-S045 RING-O, MOVABLE DRIVERING-O, MOVABLE DRIVE
-
9212292122-S007 ROLLER, MOVABLE DRIVEROLLER, MOVABLE DRIVE
-
9216192161-S074 DAMPERDAMPER
-
9217292172-S144 SCREW, MOVABLE DRIVESCREW, MOVABLE DRIVE
-
9220092200-S087 WASHER, CLUTCHWASHER, CLUTCH
-
92200A92200-S113 WASHER, MOVABLE DRIVE FACEWASHER, MOVABLE DRIVE FACE
-
9221092210-S082 NUT, FIXED DRIVENUT, FIXED DRIVE
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE PEDAL
- CARBURETOR
- CHASSIS ELECTRICAL EQUIPMENT
- COOLING
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- • DRIVE CONVERTER
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRONT HUB
- FUEL TANK
- GASKET KIT
- GENERATOR
- HANDLE LEVER
- HANDLEBAR
- IGNITION SYSTEM
- KNUCKLE ARM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OIL TANK
- PUBLICATIONS
- REAR HUB
- SEAT
- STARTER - RECOIL
- STARTER MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TRANSMISSION
