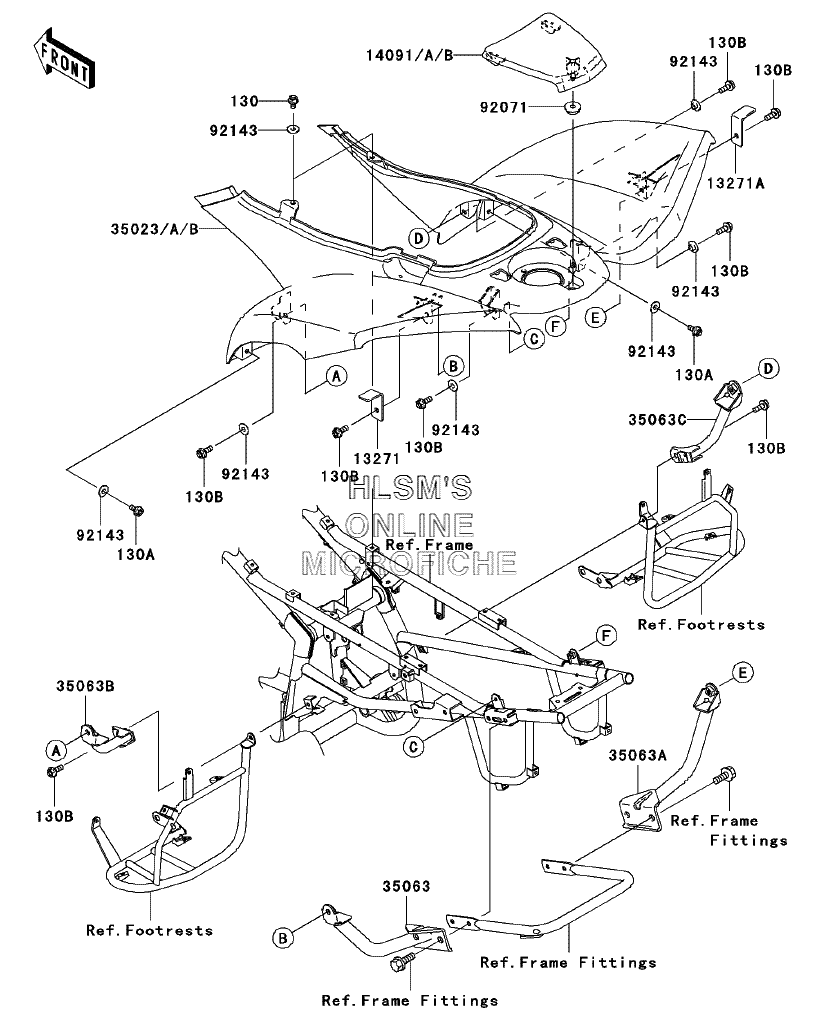

FENDER - REAR для Kawasaki KFX700 (KSV700-A1) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
1327113271-0126 PLATE, REAR FENDER (LEFT)PLATE, REAR FENDER (LEFT)
-
13271A13271-0127 PLATE, REAR FENDER (RIGHT)PLATE, REAR FENDER (RIGHT)
-
1409114091-0096-268 COVER, TANK CAP (B.ORANGE)COVER, TANK CAP (B.ORANGE)
-
14091B14091-0096-6W COVER, TANK CAP (L.GREEN)COVER, TANK CAP (L.GREEN)
-
3502335023-0010-268 FENDER-REAR (B.ORANGE)FENDER-REAR (B.ORANGE)
-
35023B35023-0010-6W FENDER-REAR (L.GREEN)FENDER-REAR (L.GREEN)
-
3506335063-0042 STAY, REAR FENDER (LEFT)STAY, REAR FENDER (LEFT)
-
35063A35063-0043 STAY, REAR FENDER (RIGHT)STAY, REAR FENDER (RIGHT)
-
35063B35063-0044 STAY, REAR FENDER (LEFT)STAY, REAR FENDER (LEFT)
-
35063C35063-0045 STAY, REAR FENDER (RIGHT)STAY, REAR FENDER (RIGHT)
-
9207192071-0008 GROMMETGROMMET
-
9214392143-1087 COLLARCOLLAR
