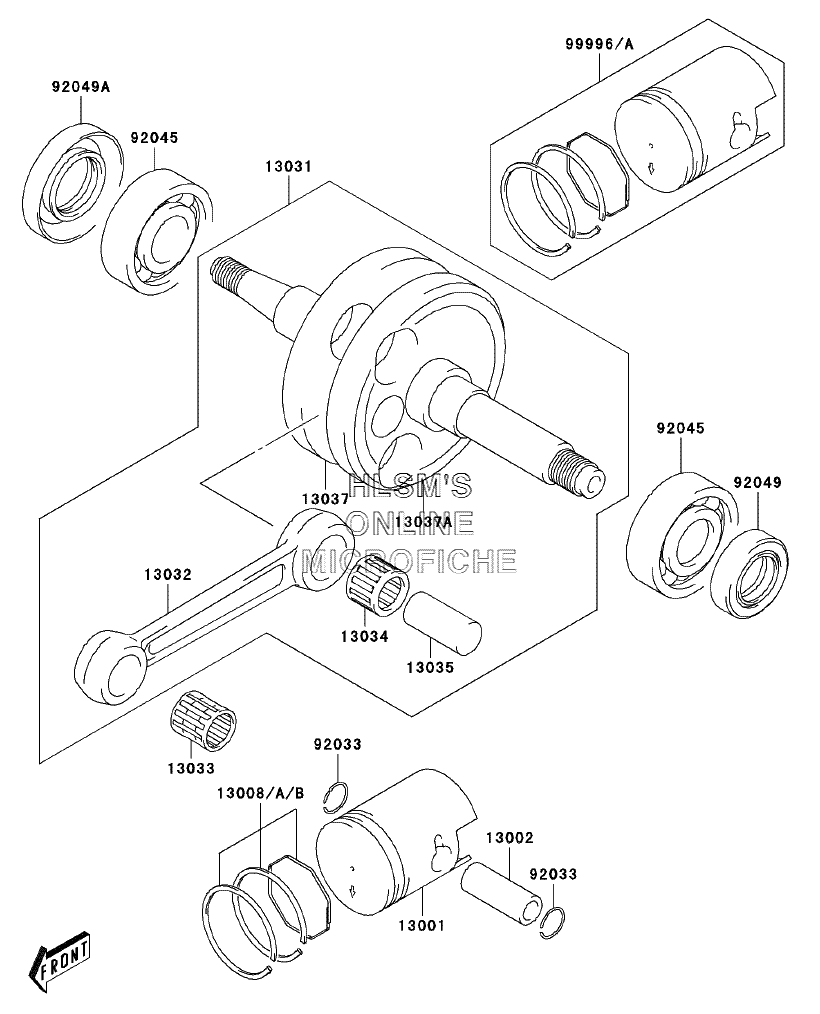

CRANKSHAFT для Kawasaki KFX50 (KSF50-A2) - 2004 года выпуска

  • №
    Артикул
    Название
  • 13001
    13001-S004 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-S004 PIN-PISTON, PISTON
    PIN-PISTON, PISTON
  • 13008
    13008-S004 RING-SET-PISTON (STD)
    RING-SET-PISTON (STD)
  • 13008A
    13008-S009 RING-SET-PISTON (O/S 0.50) (OPT)
    RING-SET-PISTON (O/S 0.50) (OPT)
  • 13008B
    13008-S010 RING-SET-PISTON (O/S 1.00) (OPTN)
    RING-SET-PISTON (O/S 1.00) (OPTN)
  • 13031
    13031-S004 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13032
    13032-S004 ROD-CONNECTING
    ROD-CONNECTING
  • 13033
    13033-S001 BEARING-SMALL END
    BEARING-SMALL END
  • 13034
    13034-S004 BEARING-BIG END
    BEARING-BIG END
  • 13035
    13035-S004 PIN-CRANK, CRANK
    PIN-CRANK, CRANK
  • 13037
    13037-S007 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13037A
    13037-S008 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 92033
    92033-S024 RING-SNAP, PISTON PIN
    RING-SNAP, PISTON PIN
  • 92045
    92045-S035 BEARING-BALL, 17X40X12
    BEARING-BALL, 17X40X12
  • 92049
    92049-S028 SEAL-OIL, CRANKSHAFT OIL (LEFT)
    SEAL-OIL, CRANKSHAFT OIL (LEFT)
  • 92049A
    92049-S029 SEAL-OIL, CRANKSHAFT OIL (RIGHT)
    SEAL-OIL, CRANKSHAFT OIL (RIGHT)
  • 99996
    99996-S008 PISTON (O/S 0.50) (OPT)
    PISTON (O/S 0.50) (OPT)
  • 99996A
    99996-S009 PISTON (O/S 1.00) (OPT)
    PISTON (O/S 1.00) (OPT)
