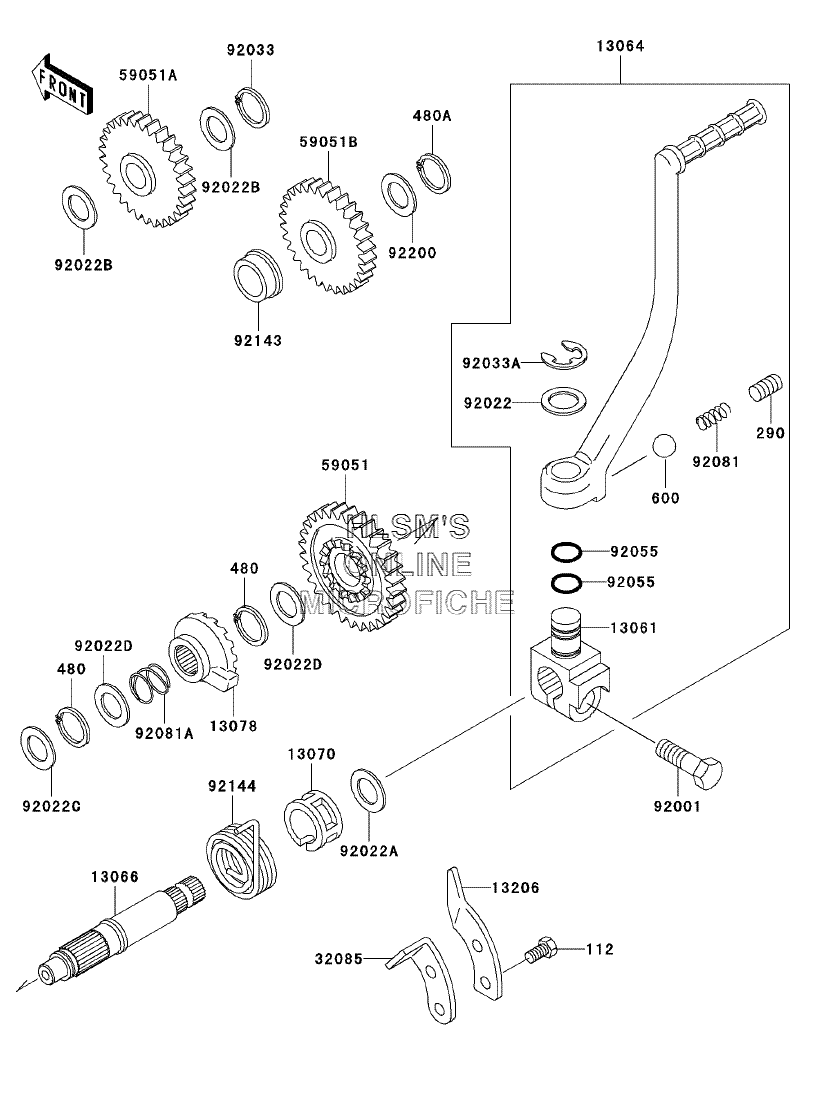

KICKSTARTER MECHANISM для Kawasaki KFX250 Mojave (KSF250-A18) - 2004 года выпуска

  • №
    Артикул
    Название
  • 112
    112G0618 BOLT-UPSET
    BOLT-UPSET
  • 290
    290Q0808 SCREW-SET-SOCKET, 8X8
    SCREW-SET-SOCKET, 8X8
  • 480
    480J1600 CIRCLIP-TYPE-C, 16MM
    CIRCLIP-TYPE-C, 16MM
  • 480A
    480J1900 CIRCLIP-TYPE-C, 19MM
    CIRCLIP-TYPE-C, 19MM
  • 600
    600A0800 BALL-STEEL, 1/4"
    BALL-STEEL, 1/4"
  • 13061
    13061-1189 BOSS, KICK PEDAL
    BOSS, KICK PEDAL
  • 13064
    13064-1127 LEVER-ASSY-KICK
    LEVER-ASSY-KICK
  • 13066
    13066-1062 SHAFT-KICK
    SHAFT-KICK
  • 13070
    13070-011 GUIDE, KICK SPRING
    GUIDE, KICK SPRING
  • 13078
    13078-1053 RATCHET
    RATCHET
  • 13206
    13206-1056 GUIDE-KICK
    GUIDE-KICK
  • 32085
    32085-1237 STOPPER
    STOPPER
  • 59051
    59051-1328 GEAR-SPUR, KICK STARTER (30 TEETH)
    GEAR-SPUR, KICK STARTER (30 TEETH)
  • 59051A
    59051-1329 GEAR-SPUR, REVERSE SHAFT (21 TEETH)
    GEAR-SPUR, REVERSE SHAFT (21 TEETH)
  • 59051B
    59051-1349 GEAR-SPUR, KICK STARTER IDLE
    GEAR-SPUR, KICK STARTER IDLE
  • 92001
    92001-1042 BOLT, 8X28
    BOLT, 8X28
  • 92022
    92022-1019 WASHER, 15.2X20X1
    WASHER, 15.2X20X1
  • 92022A
    92022-118 WASHER, 18.5X23X1.2
    WASHER, 18.5X23X1.2
  • 92022B
    92022-1799 WASHER, 17.3X22X0.5
    WASHER, 17.3X22X0.5
  • 92022C
    92022-269 WASHER, 12.3X20X0.5
    WASHER, 12.3X20X0.5
  • 92022D
    92022-315 WASHER, 16.8X22X0.5
    WASHER, 16.8X22X0.5
  • 92033
    92033-032 RING-SNAP
    RING-SNAP
  • 92033A
    92033-1166 RING-SNAP, 10MM
    RING-SNAP, 10MM
  • 92055
    92055-061 RING-O, 10X1.5
    RING-O, 10X1.5
  • 92081
    92081-020 SPRING, KICK PEDAL
    SPRING, KICK PEDAL
  • 92081A
    92081-122 SPRING, RATCHET
    SPRING, RATCHET
  • 92143
    92143-1957 COLLAR
    COLLAR
  • 92144
    92144-1001 SPRING, KICKSTARTER
    SPRING, KICKSTARTER
  • 92200
    92200-1367 WASHER, 19.3X27X0.5
    WASHER, 19.3X27X0.5
