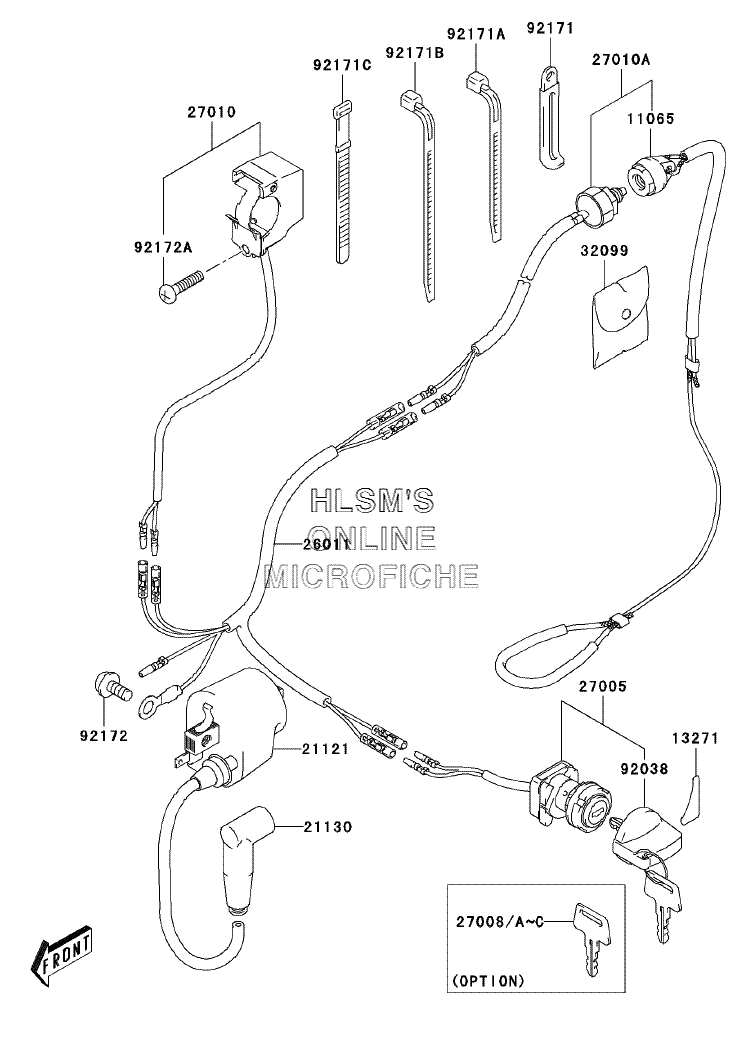

IGNITION SYSTEM для Kawasaki KFX50 (KSF50-A1) - 2003 года выпуска`
-
№АртикулНазвание
-
1106511065-S030 CAPCAP
-
1327113271-S029 PLATE, CONTROL IDENTIFICATIONPLATE, CONTROL IDENTIFICATION
-
2112121121-S004 COIL-IGNITIONCOIL-IGNITION
-
2113021130-S004 CAP-SPARK PLUGCAP-SPARK PLUG
-
2601126011-S008 WIRE-LEAD, IGNITIONWIRE-LEAD, IGNITION
-
2700527005-S003 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-S002 KEY-LOCK, BLANK, (TYPE:C) (OPT)KEY-LOCK, BLANK, (TYPE:C) (OPT)
-
27008A27008-S003 KEY-LOCK, BLANK, (TYPE:D) (OPT)KEY-LOCK, BLANK, (TYPE:D) (OPT)
-
2701027010-S014 SWITCH, HANDLE (LEFT)SWITCH, HANDLE (LEFT)
-
27010A27010-S015 SWITCHSWITCH
-
3209932099-S001 CASECASE
-
9203892038-S005 COVER, KEYCOVER, KEY
-
9217192171-S012 CLAMP, L=80CLAMP, L=80
-
92171A92171-S014 CLAMP, L=125CLAMP, L=125
-
92171B92171-S016 CLAMP, L=165CLAMP, L=165
-
92171C92171-S035 CLAMP, L=120CLAMP, L=120
-
9217292172-S131 SCREW, IGNITION COILSCREW, IGNITION COIL
-
92172A92172-S132 SCREWSCREW
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- ENGINE COVER(S)
- FENDERS
- FRAME
- FRONT HUB
- FUEL FILTER
- FUEL TANK
- GASKET KIT
- GENERATOR
- HANDLE LEVER
- HANDLEBAR
- • IGNITION SYSTEM
- KNUCKLE ARM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OIL TANK
- PUBLICATIONS
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- STARTER - RECOIL
- STEERING SHAFT
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TRANSMISSION
