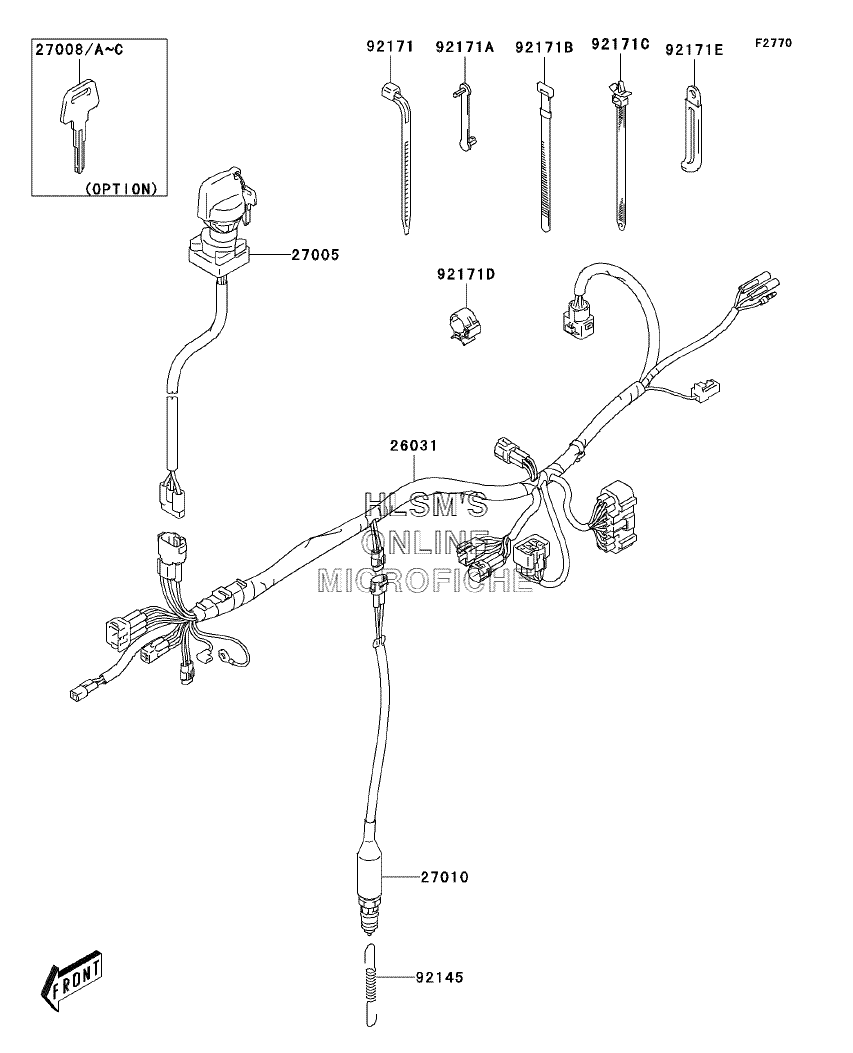

IGNITION SWITCH для Kawasaki KFX400 (KSF400-A1) - 2003 года выпуска`
-
№АртикулНазвание
-
2603126031-S003 HARNESSHARNESS
-
2700527005-S005 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-S002 KEY-LOCK, BLANK (TYPE:C) (OPT)KEY-LOCK, BLANK (TYPE:C) (OPT)
-
27008A27008-S003 KEY-LOCK, BLANK (TYPE:D) (OPT)KEY-LOCK, BLANK (TYPE:D) (OPT)
-
27008B27008-S006 KEY-LOCK, BLANK (TYPE:E) (OPT)KEY-LOCK, BLANK (TYPE:E) (OPT)
-
27008C27008-S007 KEY-LOCK, BLANK (TYPE:F) (OPT)KEY-LOCK, BLANK (TYPE:F) (OPT)
-
2701027010-S026 SWITCH, STOP LAMPSWITCH, STOP LAMP
-
9214592145-S150 SPRING, STOP LAMP SWITCHSPRING, STOP LAMP SWITCH
-
9217192171-S014 CLAMP, L=125CLAMP, L=125
-
92171A92171-S034 CLAMP, L=33CLAMP, L=33
-
92171B92171-S035 CLAMP, L=120CLAMP, L=120
-
92171C92171-S051 CLAMP, L=90CLAMP, L=90
-
92171D92171-S095 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
92171E92171-S096 CLAMP, L=135CLAMP, L=135
