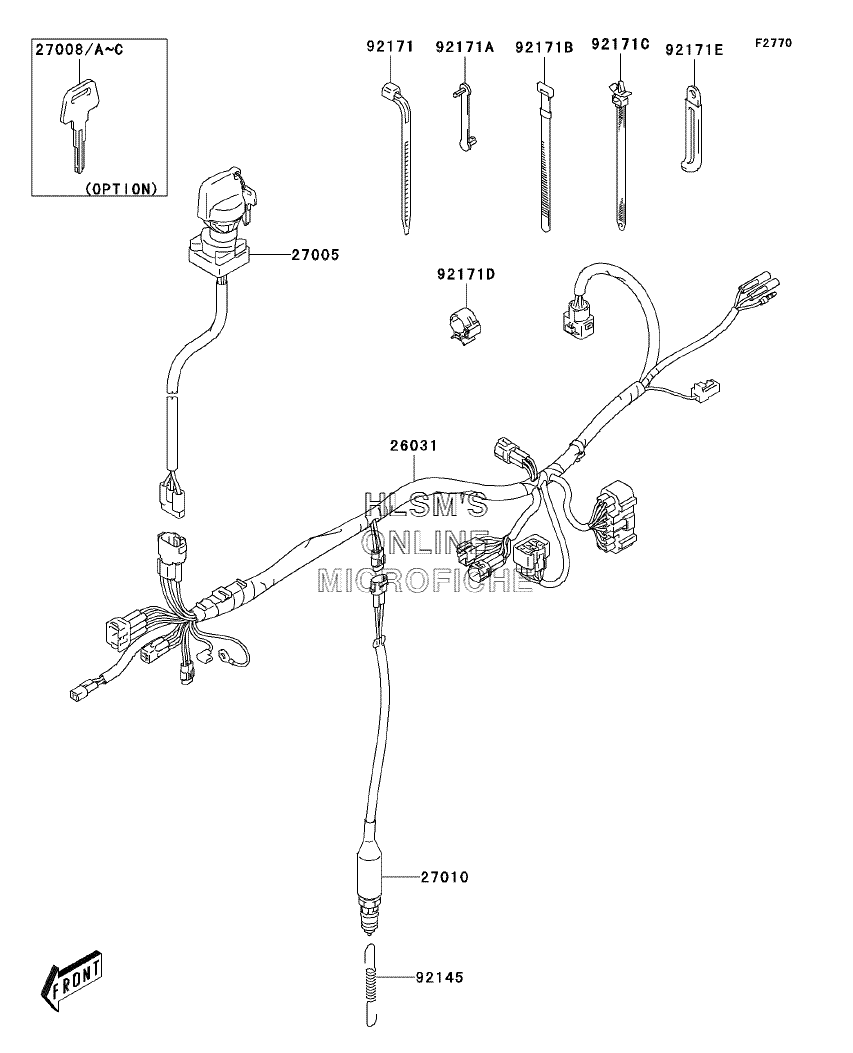

IGNITION SWITCH для Kawasaki KFX400 (KSF400-A1) - 2003 года выпуска

  • №
    Артикул
    Название
  • 26031
    26031-S003 HARNESS
    HARNESS
  • 27005
    27005-S005 SWITCH-ASSY-IGNITION
    SWITCH-ASSY-IGNITION
  • 27008
    27008-S002 KEY-LOCK, BLANK (TYPE:C) (OPT)
    KEY-LOCK, BLANK (TYPE:C) (OPT)
  • 27008A
    27008-S003 KEY-LOCK, BLANK (TYPE:D) (OPT)
    KEY-LOCK, BLANK (TYPE:D) (OPT)
  • 27008B
    27008-S006 KEY-LOCK, BLANK (TYPE:E) (OPT)
    KEY-LOCK, BLANK (TYPE:E) (OPT)
  • 27008C
    27008-S007 KEY-LOCK, BLANK (TYPE:F) (OPT)
    KEY-LOCK, BLANK (TYPE:F) (OPT)
  • 27010
    27010-S026 SWITCH, STOP LAMP
    SWITCH, STOP LAMP
  • 92145
    92145-S150 SPRING, STOP LAMP SWITCH
    SPRING, STOP LAMP SWITCH
  • 92171
    92171-S014 CLAMP, L=125
    CLAMP, L=125
  • 92171A
    92171-S034 CLAMP, L=33
    CLAMP, L=33
  • 92171B
    92171-S035 CLAMP, L=120
    CLAMP, L=120
  • 92171C
    92171-S051 CLAMP, L=90
    CLAMP, L=90
  • 92171D
    92171-S095 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 92171E
    92171-S096 CLAMP, L=135
    CLAMP, L=135
