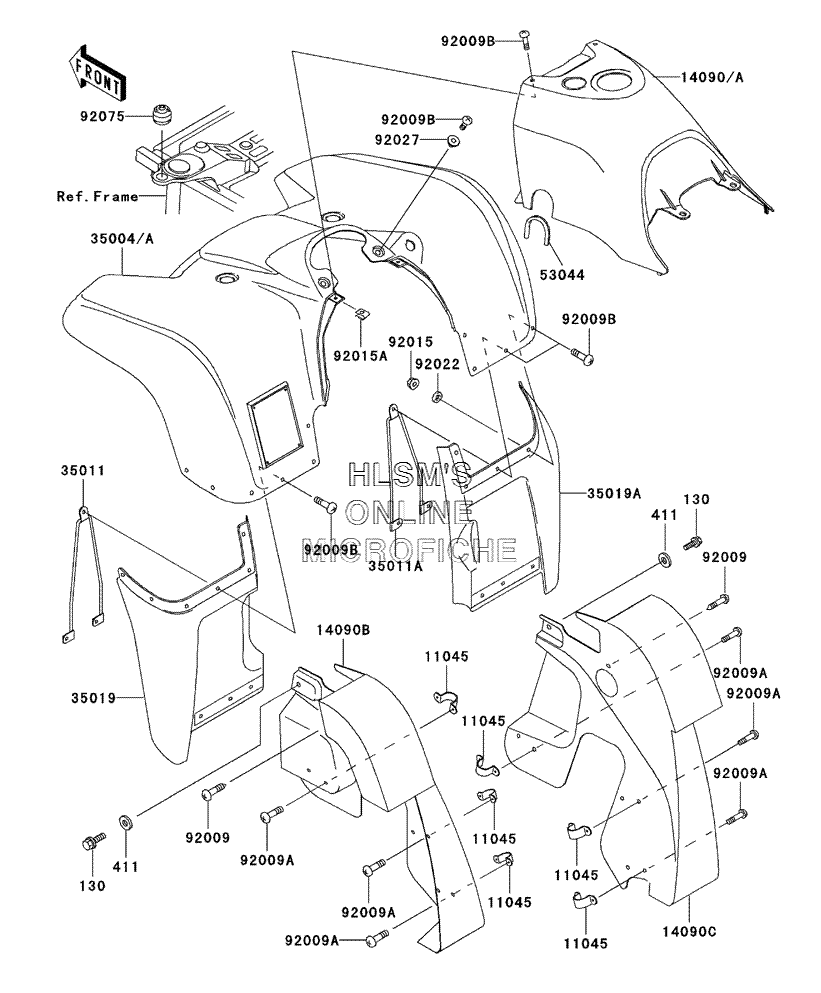

FENDER - FRONT для Kawasaki Prairie 300 (KVF300-B4) - 2002 года выпуска`
-
№АртикулНазвание
-
130130C0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
411411F0800 WASHER-PLAIN, 8MM (BLACK)WASHER-PLAIN, 8MM (BLACK)
-
1104511045-1882 BRACKET, FENDERBRACKET, FENDER
-
1409014090-1666-6A COVER, FUEL TANK (H.GREEN)COVER, FUEL TANK (H.GREEN)
-
14090A14090-1666-6L COVER, FUEL TANK (F.RED)COVER, FUEL TANK (F.RED)
-
14090B14090-1933 COVER, FRONT INNER FLAP (LEFT)COVER, FRONT INNER FLAP (LEFT)
-
14090C14090-1934 COVER, FRONT INNER FLAP (RIGHT)COVER, FRONT INNER FLAP (RIGHT)
-
3500435004-1378-6A FENDER-FRONT (H.GREEN)FENDER-FRONT (H.GREEN)
-
35004A35004-1378-6L FENDER-FRONT (F.RED)FENDER-FRONT (F.RED)
-
3501135011-1761 STAY, FRONT FLAP (LEFT)STAY, FRONT FLAP (LEFT)
-
35011A35011-1784 STAY, FRONT FLAP (RIGHT)STAY, FRONT FLAP (RIGHT)
-
3501935019-1338-6Z FLAP, FRONT (LEFT) (F.BLACK)FLAP, FRONT (LEFT) (F.BLACK)
-
35019A35019-1339-6Z FLAP, FRONT (RIGHT) (F.BLACK)FLAP, FRONT (RIGHT) (F.BLACK)
-
5304453044-1303 TRIM, L=150TRIM, L=150
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1332 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015A92015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1964 COLLAR, L=4.7COLLAR, L=4.7
-
9207592075-1744 DAMPERDAMPER
