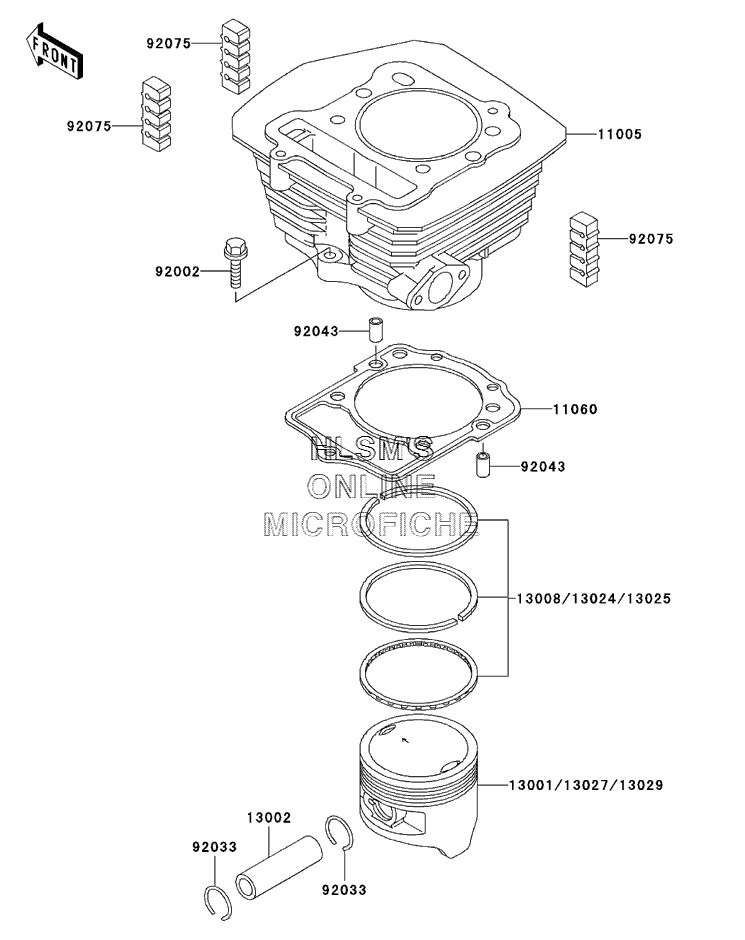

CYLINDER/PISTON(S) для Kawasaki Prairie 300 4x4 (KVF300-A3) - 2001 года выпуска`
-
№АртикулНазвание
-
1100511005-1533 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1652 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1430 PISTON-ENGINE (STD)PISTON-ENGINE (STD)
-
1300213002-1059 PIN-PISTONPIN-PISTON
-
1300813008-1111 RING-SET-PISTON (STD)RING-SET-PISTON (STD)
-
1302413024-1080 RING-SET-PISTON (O/S 1.00)RING-SET-PISTON (O/S 1.00)
-
1302513025-1093 RING-SET-PISTON (O/S 0.50)RING-SET-PISTON (O/S 0.50)
-
1302713027-1178 PISTON-ENGINE (O/S 1.00)PISTON-ENGINE (O/S 1.00)
-
1302913029-1224 PISTON-ENGINE (O/S 0.50)PISTON-ENGINE (O/S 0.50)
-
9200292002-1105 BOLT, 6X28BOLT, 6X28
-
9203392033-1099 RING-SNAP, 20.5X1.2RING-SNAP, 20.5X1.2
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9207592075-1657 DAMPERDAMPER
