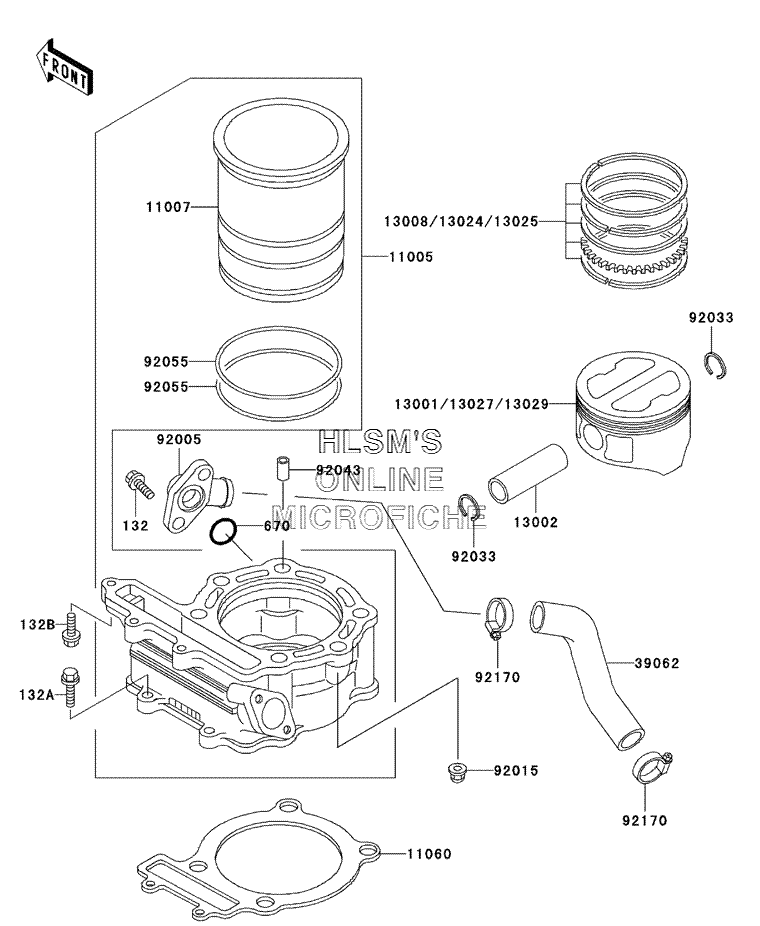

CYLINDER/PISTON(S) для Kawasaki Mojave 250 (KSF250-A15) - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0612 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132A
    132J0620 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132B
    132J0625 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 670
    670B2018 O RING, 18MM
    O RING, 18MM
  • 11005
    11005-1831 CYLINDER-ENGINE
    CYLINDER-ENGINE
  • 11007
    11007-1070 LINER-CYLINDER
    LINER-CYLINDER
  • 11060
    11060-1125 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-1280 PISTON-ENGINE (STD)
    PISTON-ENGINE (STD)
  • 13002
    13002-1023 PIN-PISTON, 12X18X57.2
    PIN-PISTON, 12X18X57.2
  • 13008
    13008-1066 RING-SET-PISTON (STD)
    RING-SET-PISTON (STD)
  • 13024
    13024-1068 RING-SET-PISTON (O/S 1.00)
    RING-SET-PISTON (O/S 1.00)
  • 13025
    13025-1065 RING-SET-PISTON (O/S 0.50)
    RING-SET-PISTON (O/S 0.50)
  • 13027
    13027-1152 PISTON-ENGINE (O/S 1.00)
    PISTON-ENGINE (O/S 1.00)
  • 13029
    13029-1175 PISTON-ENGINE (O/S 0.50)
    PISTON-ENGINE (O/S 0.50)
  • 39062
    39062-1193 HOSE-COOLING, PUMP-CYLINDER
    HOSE-COOLING, PUMP-CYLINDER
  • 92005
    92005-1279 FITTING
    FITTING
  • 92015
    92015-1174 NUT, CAP, 8MM (BLACK)
    NUT, CAP, 8MM (BLACK)
  • 92033
    92033-1182 RING-SNAP
    RING-SNAP
  • 92043
    92043-4009 PIN, 10.1X12X14
    PIN, 10.1X12X14
  • 92055
    92055-1247 RING-O
    RING-O
  • 92170
    92170-1033 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
