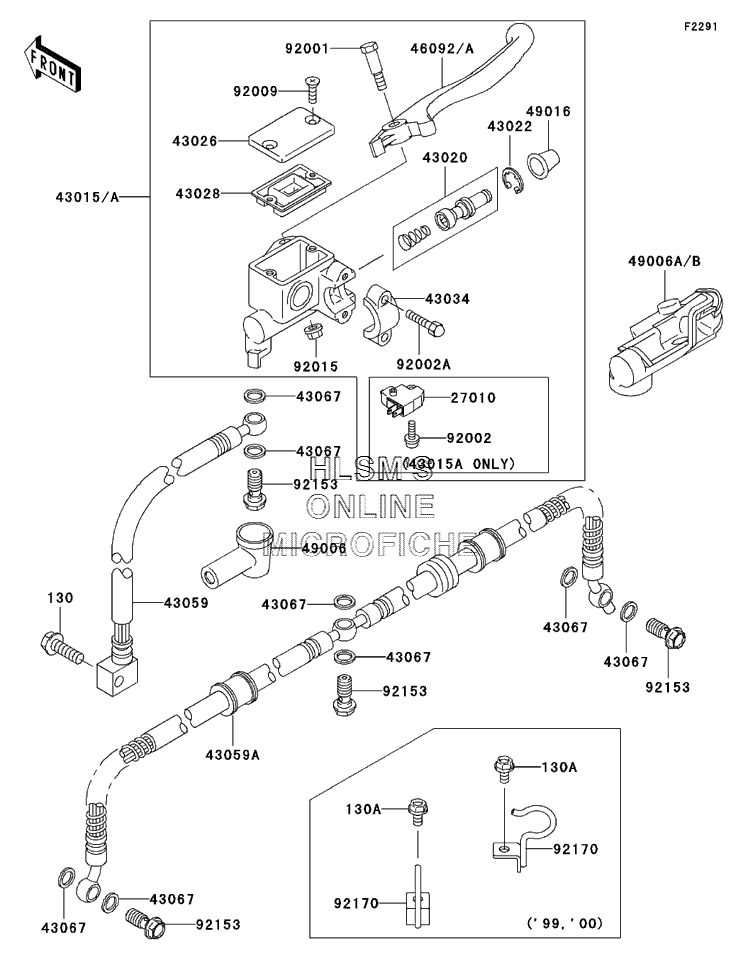

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Prairie 400 4x4 (KVF400-C2) - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0825 BOLT-FLANGED, 8X25
    BOLT-FLANGED, 8X25
  • 130A
    130J0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 27010
    27010-0025 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015A
    43015-1646 CYLINDER-ASSY-MASTER, FRONT
    CYLINDER-ASSY-MASTER, FRONT
  • 43020
    43020-1056 PISTON-COMP-BRAKE, FRONT
    PISTON-COMP-BRAKE, FRONT
  • 43022
    43022-1010 STOPPER-BRAKE, PISTON
    STOPPER-BRAKE, PISTON
  • 43026
    43026-1074 CAP-BRAKE
    CAP-BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER-BRAKE, MASTER CYLINDER
    HOLDER-BRAKE, MASTER CYLINDER
  • 43059
    43059-1926 HOSE-BRAKE, FRONT (UPPER)
    HOSE-BRAKE, FRONT (UPPER)
  • 43059A
    43059-1927 HOSE-BRAKE, FRONT (LOWER)
    HOSE-BRAKE, FRONT (LOWER)
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 46092A
    46092-1208 LEVER-GRIP, FRONT BRAKE
    LEVER-GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49006B
    49006-1338 BOOT (RIGHT)
    BOOT (RIGHT)
  • 49016
    49016-1044 COVER-SEAL, MASTER CYLINDER
    COVER-SEAL, MASTER CYLINDER
  • 92001
    92001-1728 BOLT, FRONT BRAKE LEVER
    BOLT, FRONT BRAKE LEVER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92170
    92170-1720 CLAMP, HOSE
    CLAMP, HOSE
