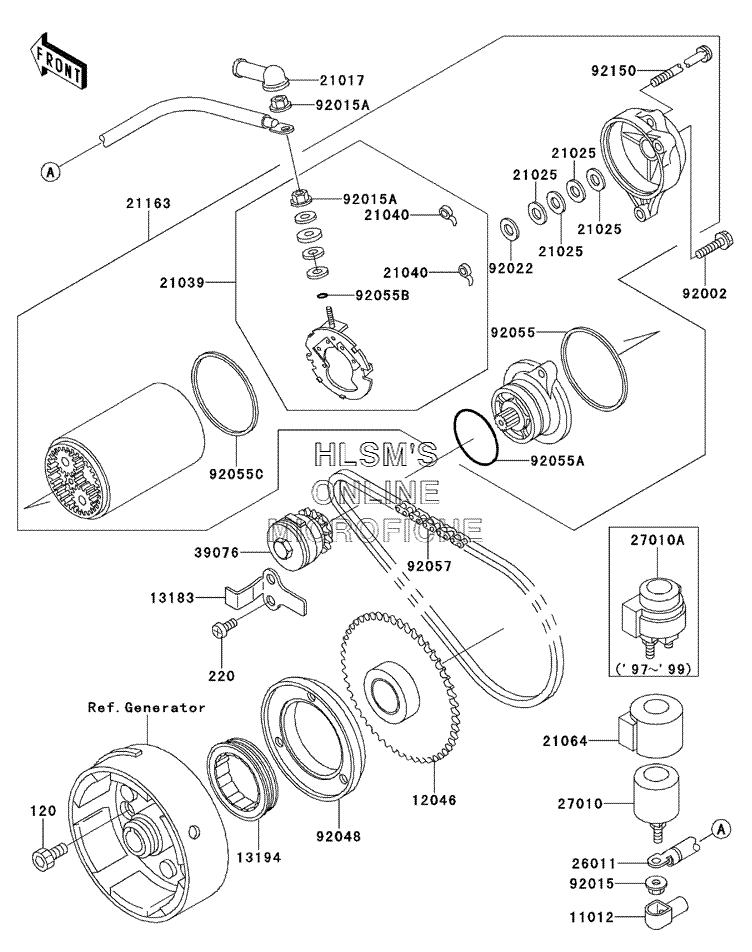

STARTER MOTOR для Kawasaki Bayou 300 (KLF300-B13) - 2000 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0816 BOLT-SOCKET
    BOLT-SOCKET
  • 220
    220B0612 SCREW-PAN-CROS, 6X12
    SCREW-PAN-CROS, 6X12
  • 11012
    11012-1354 CAP, TERMINAL
    CAP, TERMINAL
  • 12046
    12046-1077 SPROCKET, STARTER
    SPROCKET, STARTER
  • 13183
    13183-1002 PLATE, STARTER CHAIN
    PLATE, STARTER CHAIN
  • 13194
    13194-1091 CLUTCH-ONEWAY
    CLUTCH-ONEWAY
  • 21017
    21017-017 GROMMET, STARTER TERMINAL
    GROMMET, STARTER TERMINAL
  • 21025
    21025-011 WASHER, 9.1X18X0.2
    WASHER, 9.1X18X0.2
  • 21039
    21039-1063 BRUSH, CARBON
    BRUSH, CARBON
  • 21040
    21040-1057 SPRING-BRUSH
    SPRING-BRUSH
  • 21064
    21064-002 DAMPER, MAGNETIC SWITCH
    DAMPER, MAGNETIC SWITCH
  • 21163
    21163-1141 STARTER-ELECTRIC
    STARTER-ELECTRIC
  • 26011
    26011-1327 WIRE-LEAD, STATER MOTOR
    WIRE-LEAD, STATER MOTOR
  • 27010
    27010-1098 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 39076
    39076-1054 LIMITER, STARTER IDLE GEAR
    LIMITER, STARTER IDLE GEAR
  • 92002
    92002-1664 BOLT
    BOLT
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1476 NUT, STARTER MOTOR
    NUT, STARTER MOTOR
  • 92022
    92022-1132 WASHER, 9.1X18X0.8
    WASHER, 9.1X18X0.8
  • 92048
    92048-1095 RACE, ONEWAY CLUTCH
    RACE, ONEWAY CLUTCH
  • 92055
    92055-1086 RING-O, 64MM
    RING-O, 64MM
  • 92055A
    92055-1313 RING-O, 42.8MM
    RING-O, 42.8MM
  • 92055B
    92055-1370 RING-O, 4.5X2.0
    RING-O, 4.5X2.0
  • 92055C
    92055-1381 RING-O, STARTER MOTOR
    RING-O, STARTER MOTOR
  • 92057
    92057-1196 CHAIN, STARTER, KEC29H, 64L
    CHAIN, STARTER, KEC29H, 64L
  • 92150
    92150-1138 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
