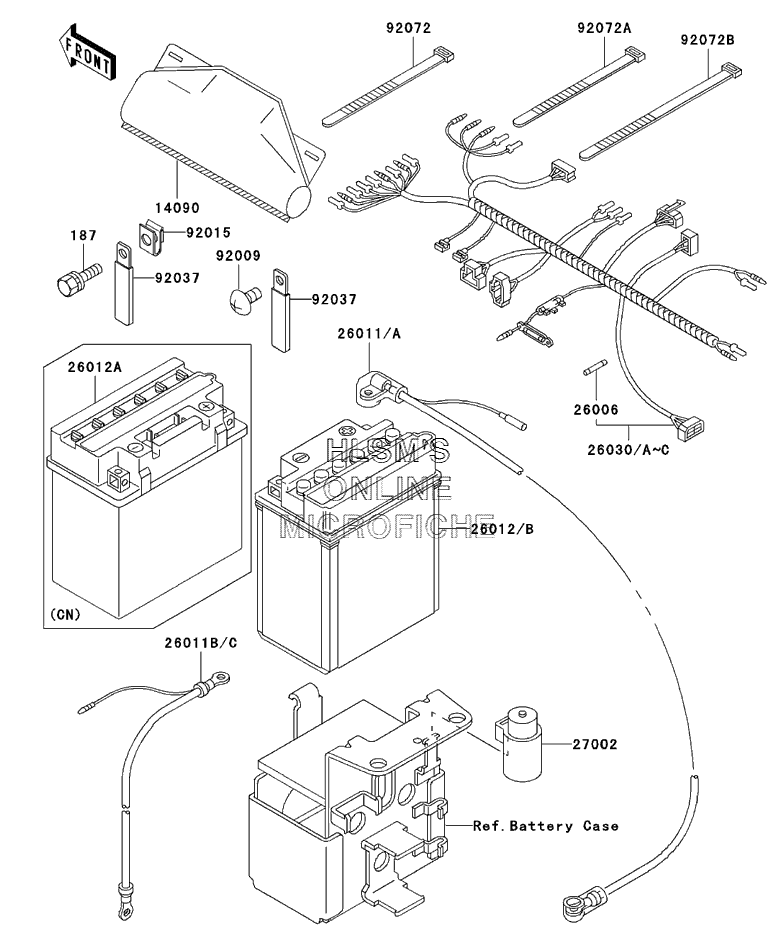

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Bayou 300 4x4 (KLF300-C12) - 2000 года выпуска

  • №
    Артикул
    Название
  • 187
    187C0614 BOLT-UPSET-WSP
    BOLT-UPSET-WSP
  • 14090
    14090-1611 COVER, COUPLER
    COVER, COUPLER
  • 26006
    26006-1059 FUSE, 30A, L=30
    FUSE, 30A, L=30
  • 26011
    26011-1544 WIRE-LEAD, BATTERY(+) (CANADA ONLY)
    WIRE-LEAD, BATTERY(+) (CANADA ONLY)
  • 26011A
    26011-1545 WIRE-LEAD, BATTERY(+) (US ONLY)
    WIRE-LEAD, BATTERY(+) (US ONLY)
  • 26011B
    26011-1559 WIRE-LEAD, BATTERY(-) (US ONLY)
    WIRE-LEAD, BATTERY(-) (US ONLY)
  • 26011C
    26011-1560 WIRE-LEAD, BATTERY(-) (CANADA ONLY)
    WIRE-LEAD, BATTERY(-) (CANADA ONLY)
  • 26012
    26012-1146 BATTERY, YB14A-A2, 12V 14AH (US ONLY)
    BATTERY, YB14A-A2, 12V 14AH (US ONLY)
  • 26012A
    26012-1273 BATTERY, YB16CL-B, 12V 19AH (CANADA ONLY)
    BATTERY, YB16CL-B, 12V 19AH (CANADA ONLY)
  • 26030B
    26030-1689 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1095 RELAY-ASSY
    RELAY-ASSY
  • 92009
    92009-1155 SCREW, TAPPING, 4X8
    SCREW, TAPPING, 4X8
  • 92015
    92015-1671 NUT, 6MM
    NUT, 6MM
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92072A
    92072-031 BAND, L=149
    BAND, L=149
  • 92072B
    92072-1239 BAND, L=188
    BAND, L=188
