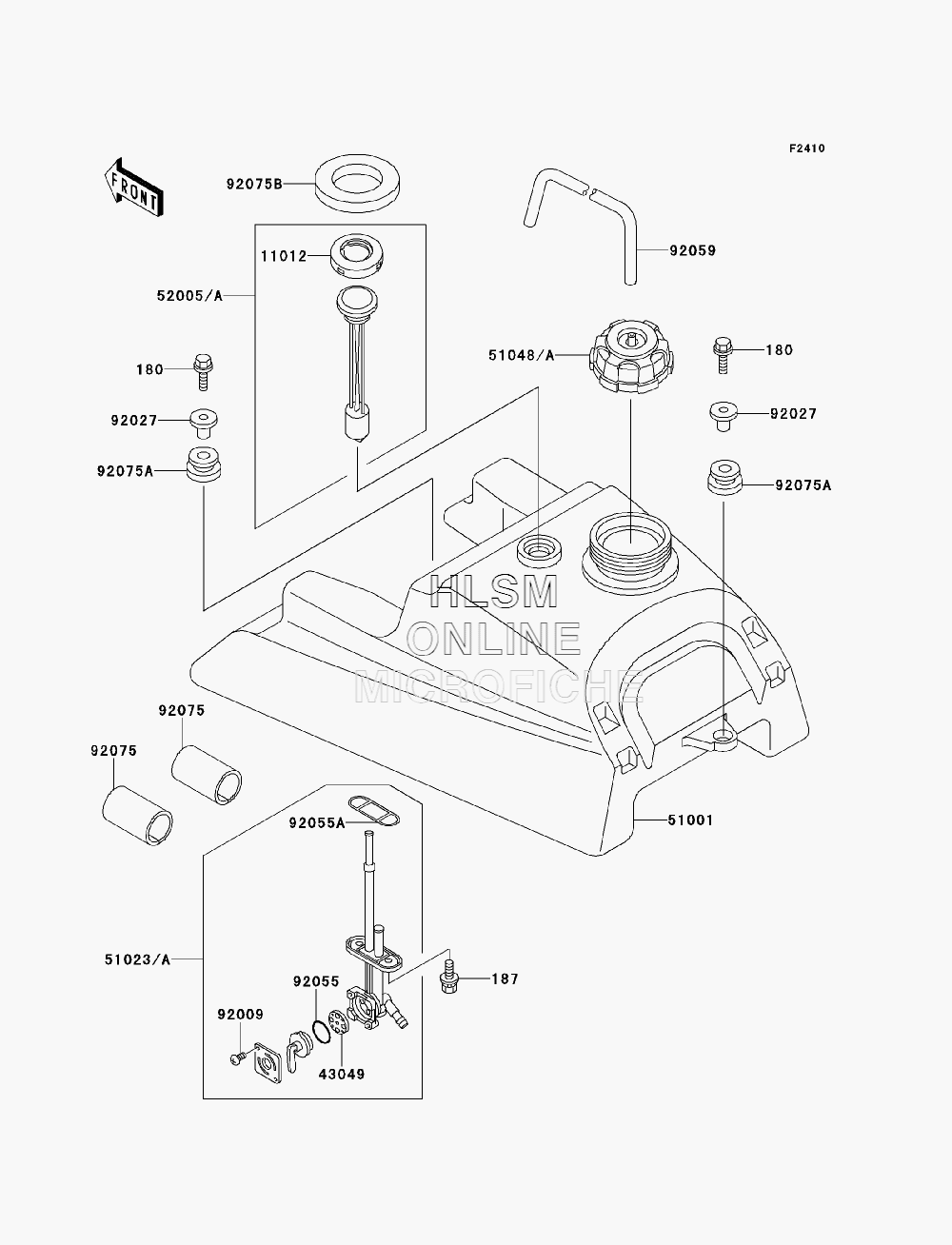

FUEL TANK для Kawasaki BAYOU 220 (KLF220-A13) - 2000 года выпуска

  • №
    Артикул
    Название
  • 180
    180D0625 BOLT-UPSET-WS, 6X25
    BOLT-UPSET-WS, 6X25
  • 187
    187B0614 BOLT-UPSET-WSP
    BOLT-UPSET-WSP
  • 11012
    11012-1627 CAP, FUEL GAUGE
    CAP, FUEL GAUGE
  • 43049
    43049-1017 PACKING, FUEL TAP LEVER
    PACKING, FUEL TAP LEVER
  • 51001
    51001-1272 TANK-COMP-FUEL
    TANK-COMP-FUEL
  • 51023A
    51023-1250 TAP-ASSY, FUEL
    TAP-ASSY, FUEL
  • 51048A
    51048-1127 CAP-ASSY-TANK, FUEL
    CAP-ASSY-TANK, FUEL
  • 52005A
    52005-1121 GAUGE, FUEL
    GAUGE, FUEL
  • 92009
    92009-1123 SCREW, 3X5
    SCREW, 3X5
  • 92027
    92027-1847 COLLAR, L=16.1
    COLLAR, L=16.1
  • 92055
    92055-1111 RING-O, FUEL TAP LEVER
    RING-O, FUEL TAP LEVER
  • 92055A
    92055-1348 RING-O, FUEL TAP PACKING
    RING-O, FUEL TAP PACKING
  • 92059
    92059-1967 TUBE, 5X9.4X250
    TUBE, 5X9.4X250
  • 92075
    92075-1369 DAMPER, FUEL TANK, FRONT, UNDER
    DAMPER, FUEL TANK, FRONT, UNDER
  • 92075A
    92075-1787 DAMPER
    DAMPER
  • 92075B
    92075-1988 DAMPER, 42.5X70X8.5
    DAMPER, 42.5X70X8.5
