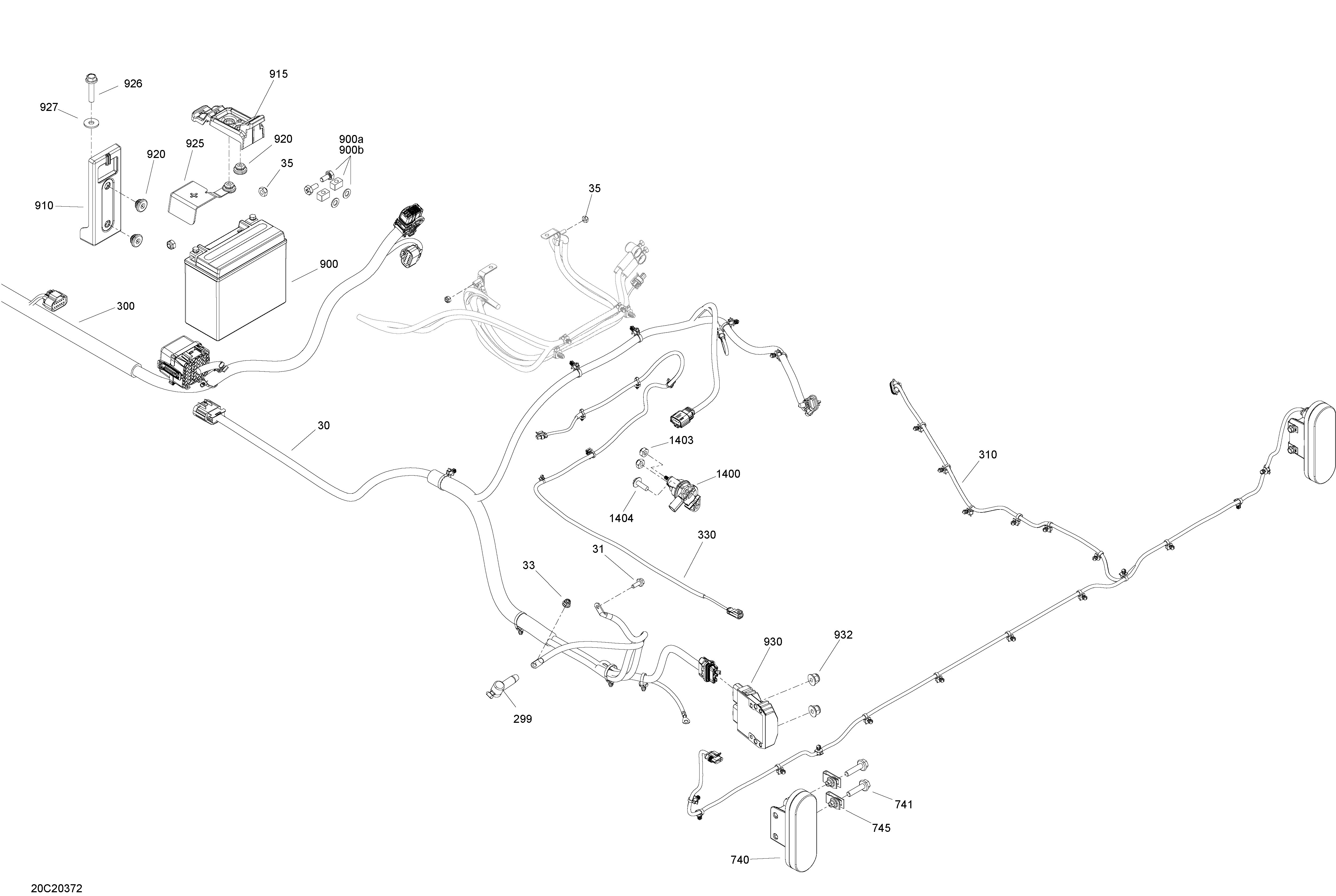

10- Electric - System - Rear Section для BRP 005 - Defender MAX HD8 - International - 2020
-
№АртикулНазвание
-
30710006497 Voltage Regulator Wiring HarnessVoltage Regulator Wiring Harness
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
299710007033 Cap Battery CableCap Battery Cable
-
300710006377 Main Wiring HarnessMain Wiring Harness
-
310710006499 Taillight Wiring HarnessTaillight Wiring Harness
-
330710007042 Safety Belt Wiring HarnessSafety Belt Wiring Harness
-
740710004497 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
900410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
900410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
900b515176081 Battery Bolt KitBattery Bolt Kit
-
910710004788 Fixation PlateFixation Plate
-
915710004789 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
925710006471 Battery Cable CapBattery Cable Cap
-
926207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
927234062410 Flat Washer 6 mmFlat Washer 6 mm
-
930710005842 Voltage RegulatorVoltage Regulator
-
932233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1400278003012 Starter RelayStarter Relay
-
1403232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
1404243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
