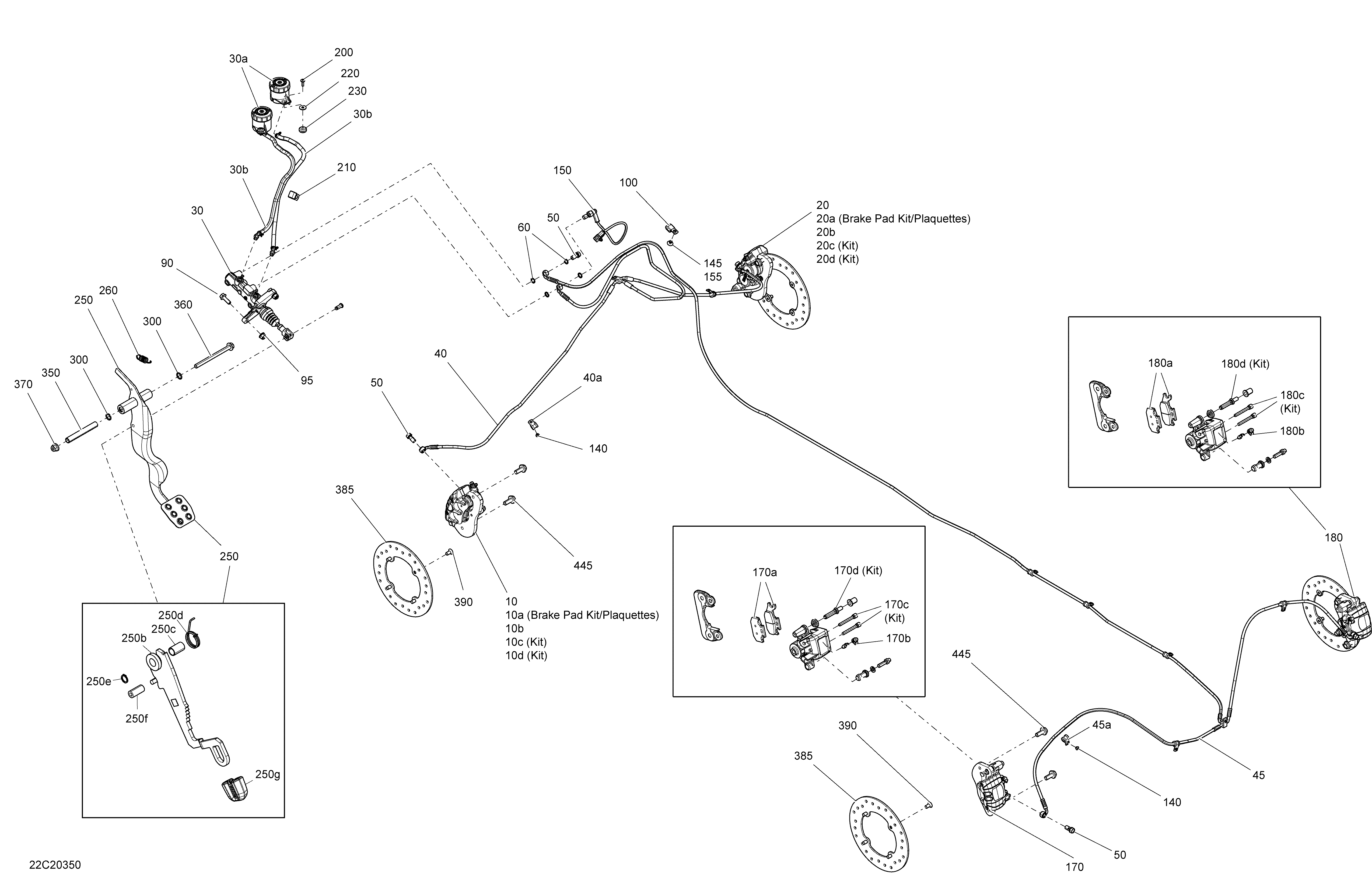

06- Brakes - XMR для BRP 004 - Defender HD10 - XMR - International - 2020
-
№АртикулНазвание
-
10705601462 LH Front Caliper. Includes 10 to 10bLH Front Caliper. Includes 10 to 10b
-
10a715900379 LH Brake PadsLH Brake Pads
-
10b705601017 Bleeding ScrewBleeding Screw
-
10c715900384 Pin KitPin Kit
-
10d715900385 Cap Spring KitCap Spring Kit
-
20705601463 RH Front Caliper. Includes 20 to 20bRH Front Caliper. Includes 20 to 20b
-
20a715900380 RH Brake PadsRH Brake Pads
-
20b705601017 Bleeding ScrewBleeding Screw
-
20c715900384 Pin KitPin Kit
-
20d715900385 Cap Spring KitCap Spring Kit
-
30705601802 Master Cylinder. Includes 30 to 30bMaster Cylinder. Includes 30 to 30b
-
30a705601020 Oil TankOil Tank
-
30b705601019 Housing Oil HoseHousing Oil Hose
-
40705601758 Front Caliper Hose. Includes 40 to 40aFront Caliper Hose. Includes 40 to 40a
-
40a293650256 ClampClamp
-
45705601760 Rear Caliper Hose. Includes 45 to 45aRear Caliper Hose. Includes 45 to 45a
-
45a293650256 ClampClamp
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper WasherCopper Washer
-
90207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
95233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
100293650220 ClampClamp
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
145293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake SwitchBrake Switch
-
155207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
170705601464 LH Rear Caliper. Includes 170 to 170bLH Rear Caliper. Includes 170 to 170b
-
170a715900381 LH Brake PadsLH Brake Pads
-
170b705601017 Bleeding ScrewBleeding Screw
-
170c715900384 Pin KitPin Kit
-
170d715900385 Cap Spring KitCap Spring Kit
-
180705601465 RH Rear Caliper. Includes 180 to 180bRH Rear Caliper. Includes 180 to 180b
-
180a715900382 RH Brake PadsRH Brake Pads
-
180b715900384 Pin KitPin Kit
-
180c705601017 Bleeding ScrewBleeding Screw
-
180d715900385 Cap Spring KitCap Spring Kit
-
200250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
210515175507 Open ClampOpen Clamp
-
220250200040 Flat WasherFlat Washer
-
230414036300 GrommetGrommet
-
250705601777 Brake PedalBrake Pedal
-
250B705601725 LeverLever
-
250c705601722 BushingBushing
-
250d705601729 SpringSpring
-
250e705601770 CirclipCirclip
-
250f709000168 Hose 1/4Hose 1/4
-
250g708002655 HandleHandle
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
300293300144 O-RingO-Ring
-
350705601373 Inside SleeveInside Sleeve
-
360230603046 Flanged Hex. Screw, M10 X 130Flanged Hex. Screw, M10 X 130
-
370233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
385705601511 Brake DiscBrake Disc
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
445207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
