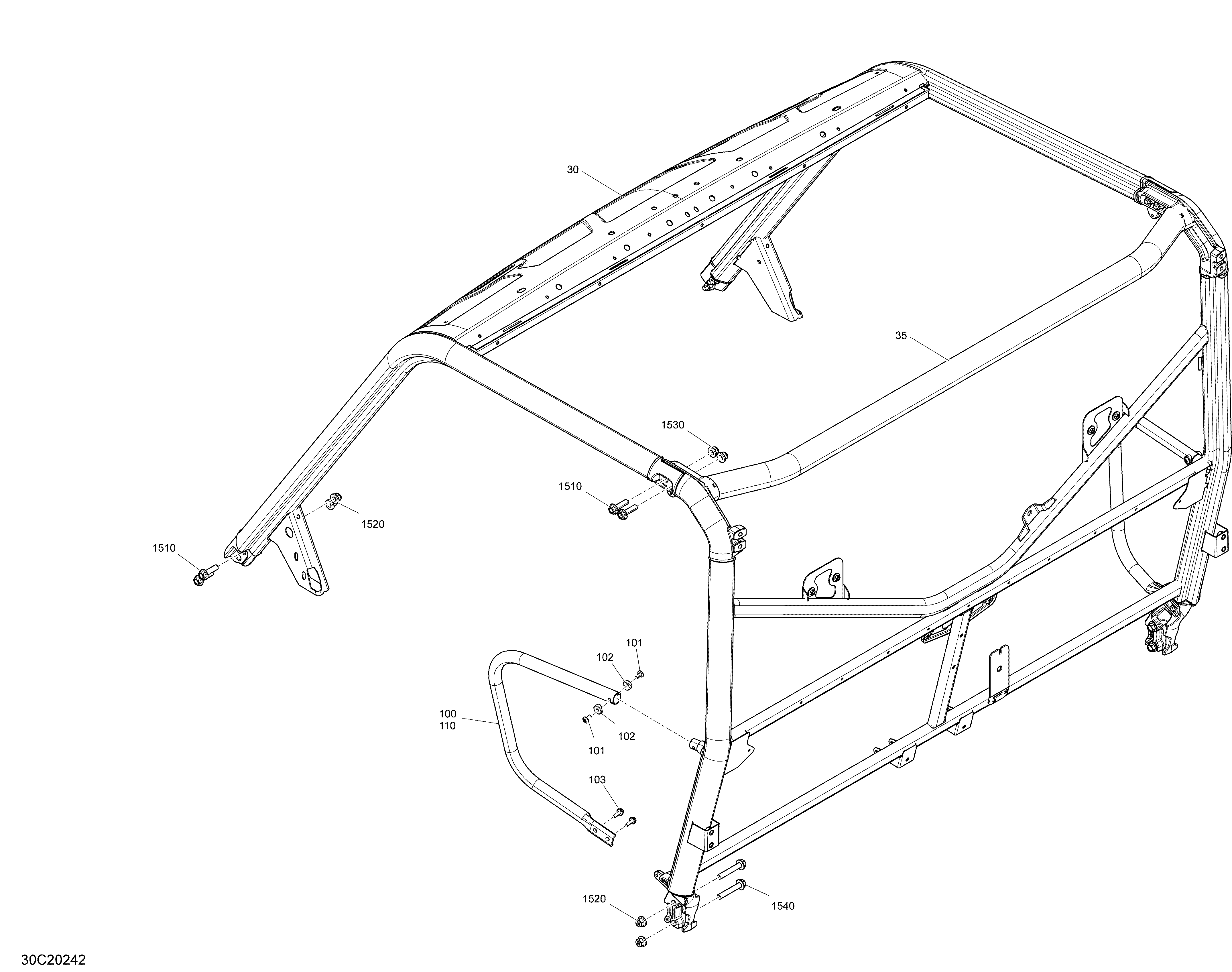

09- Safety Cage - XT для BRP 003 - Defender HD10 - XT - International - 2020
-
№АртикулНазвание
-
30715006528 Front Cage Profile Ass'yFront Cage Profile Ass'y
-
35715006532 Rear Cage Profile Ass'yRear Cage Profile Ass'y
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector TubeRH Protector Tube
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1530233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
