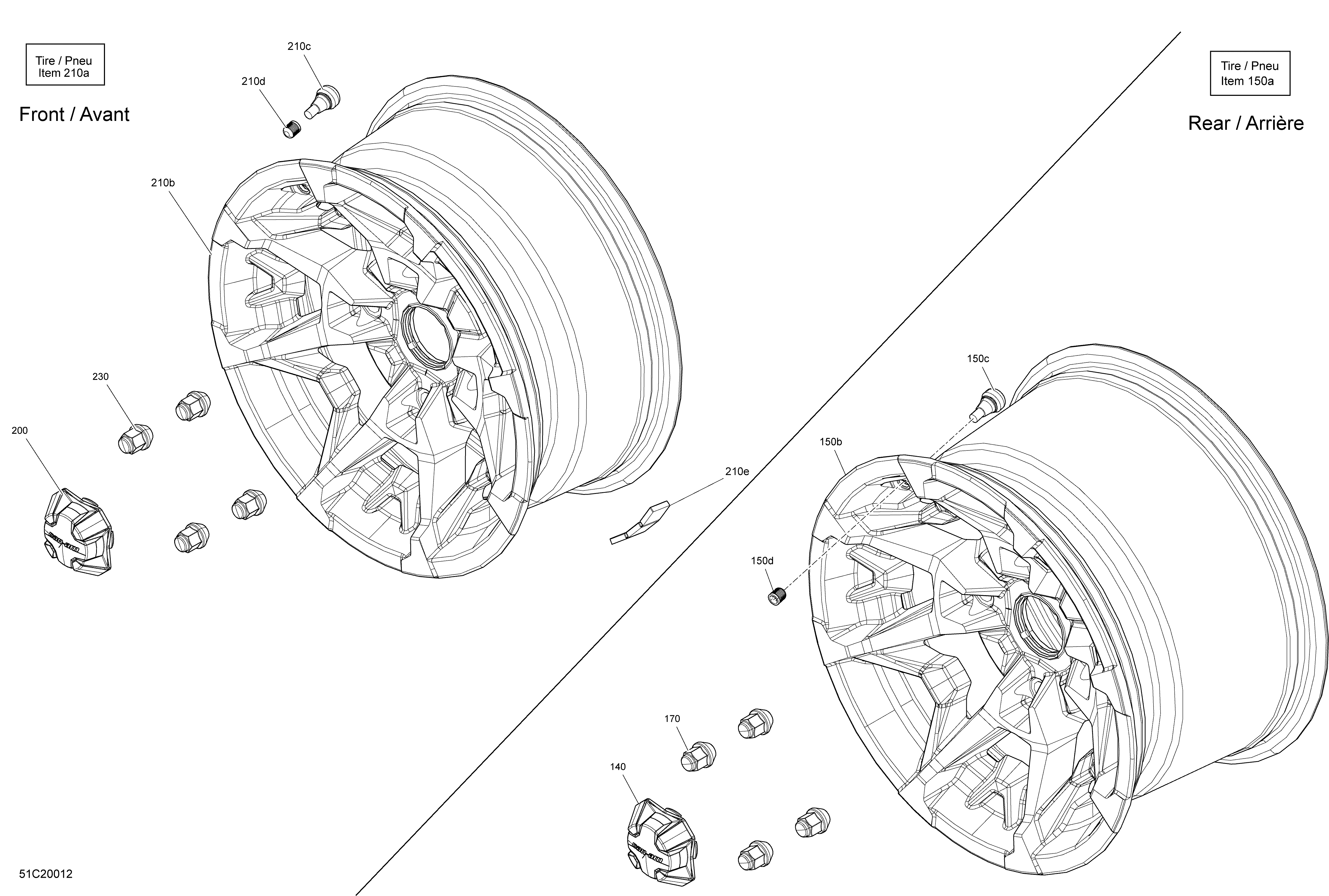

07- Wheels - LTD - XT для BRP 002 - Commander 1000R EFI - International - 2020
-
№АртикулНазвание
-
140705401541 Wheel CapWheel Cap
-
150a705502665 Rear TireRear Tire
-
150b705502397 Rear Rim. Package LTDRear Rim. Package LTD
-
150b705502398 Black Rear Rim. Package XTBlack Rear Rim. Package XT
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d293000110 Valve CapValve Cap
-
150e705501385 1/2 OZ Weight. Not Shown1/2 OZ Weight. Not Shown
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
200705401541 Wheel CapWheel Cap
-
210a705402168 Front TireFront Tire
-
210b705401848 Front Rim. Package LTDFront Rim. Package LTD
-
210b705401849 Front Rim. Package XTFront Rim. Package XT
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d293000110 Valve CapValve Cap
-
210e705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
