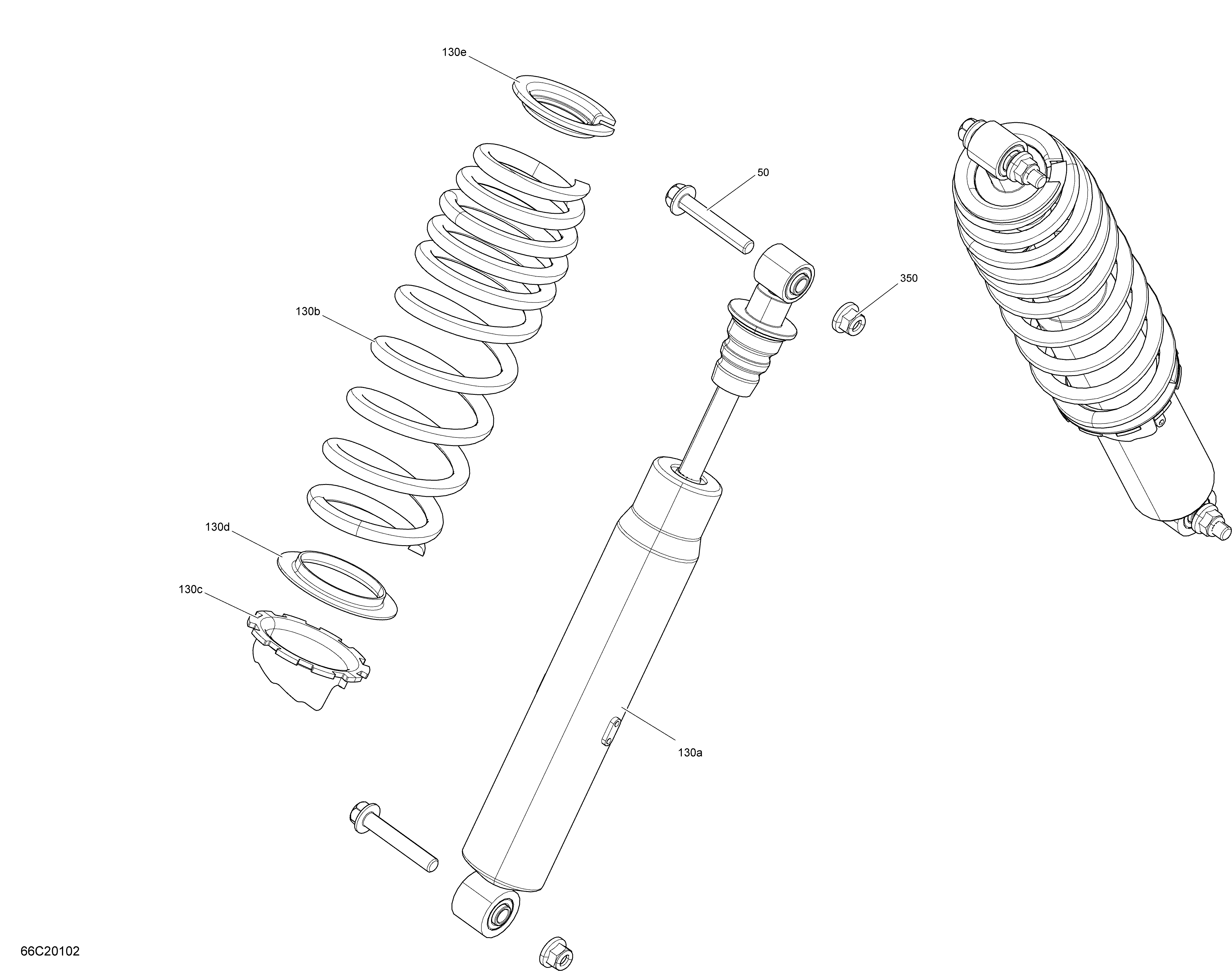

07- Front Shocks - DPS для BRP 001 - Commander 800R EFI - International - 2020
-
№АртикулНазвание
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
130a706200782 Front ShockFront Shock
-
130b706202927 Can-Am Red Front SpringCan-Am Red Front Spring
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706000567 Spring StopperSpring Stopper
-
350233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
