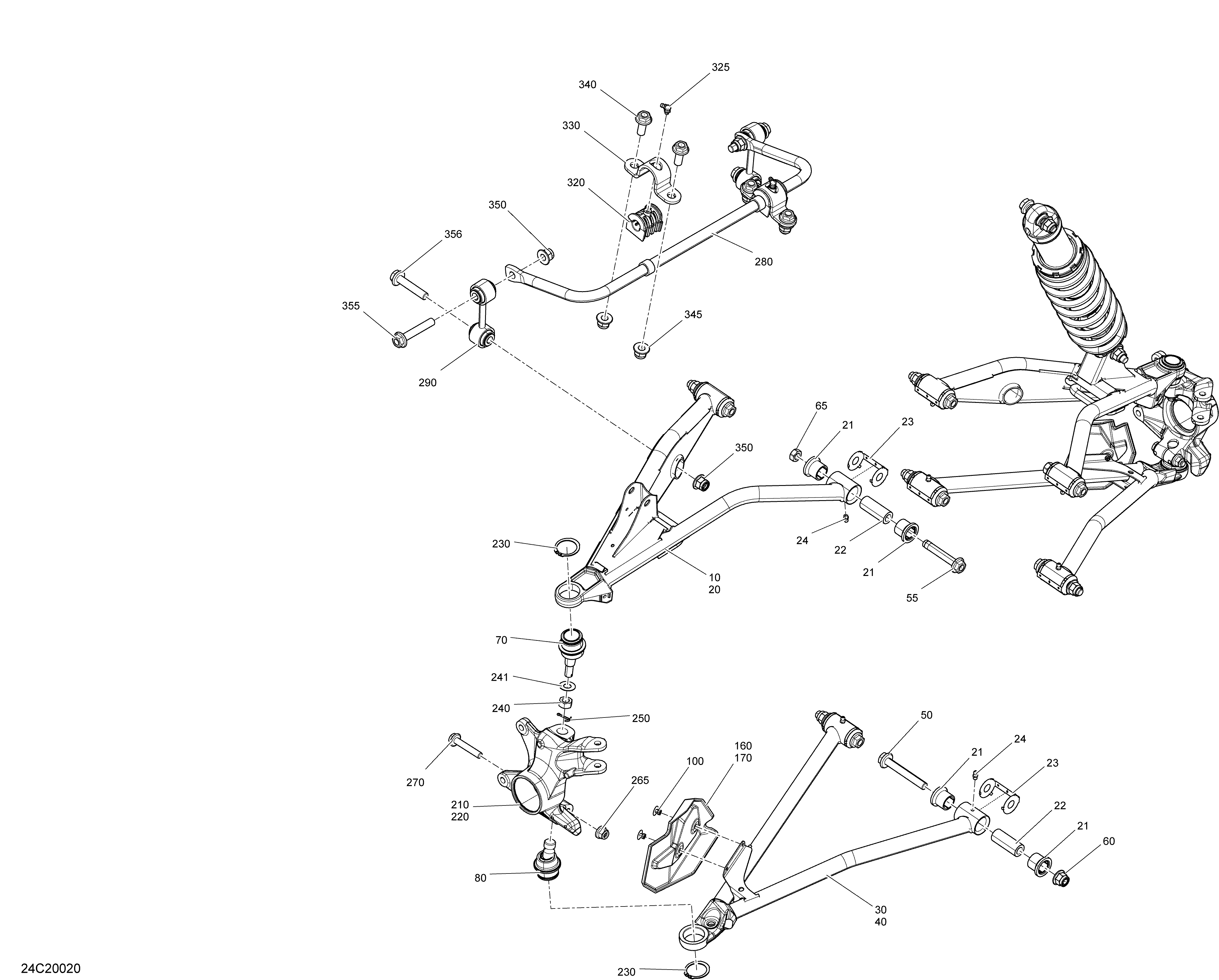

07- Front Suspension для BRP 007 - Maverick Sport MAX 1000R - North America - 2020
-
№АртикулНазвание
-
10706202890 Black, LH Upper Front Suspension ArmBlack, LH Upper Front Suspension Arm
-
20706202891 Black, RH Upper Front Suspension ArmBlack, RH Upper Front Suspension Arm
-
21706201659 CushionCushion
-
22706202257 Interior BushingInterior Bushing
-
23706202300 Wear PlateWear Plate
-
24408200700 Grease FittingGrease Fitting
-
30706202874 Black LH Lower Front Suspension ArmBlack LH Lower Front Suspension Arm
-
40706202875 Black, RH Lower Front Suspension ArmBlack, RH Lower Front Suspension Arm
-
50250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
55250000985 Hex Flanged Screw M12x1.75Hex Flanged Screw M12x1.75
-
60233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
65250100204 Hex. Nut M12Hex. Nut M12
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706202842 LH Front KnuckleLH Front Knuckle
-
220706202844 RH Front KnuckleRH Front Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
265233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
280706203649 Sway-Bar Ass'ySway-Bar Ass'y
-
290706202937 Swaybar Double LinkSwaybar Double Link
-
320706203153 BushingBushing
-
325293550056 Grease Fitting 90°Grease Fitting 90°
-
330706203437 ClampClamp
-
340250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
345233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
350233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
355250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
356250000857 Screw Flange M12 X 60Screw Flange M12 X 60
