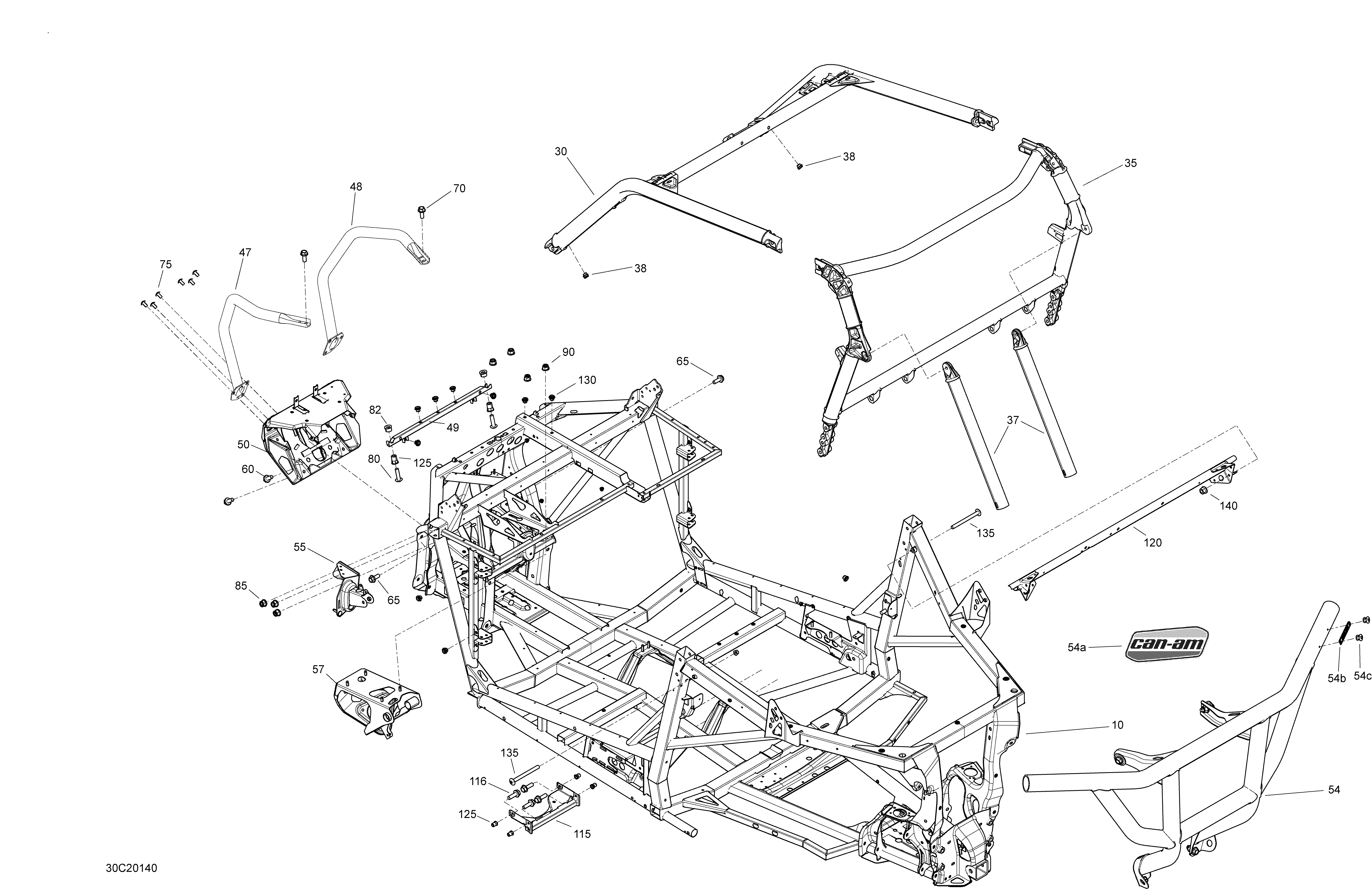

09- Frame для BRP 006 - Maverick Sport 1000R - XXC - North America - 2020
-
№АртикулНазвание
-
38250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
49705206313 Cross MemberCross Member
-
50705205890 Front BumperFront Bumper
-
54715003683 Black, Rear Bumper Kit. Includes 54 to 54cBlack, Rear Bumper Kit. Includes 54 to 54c
-
54a704904566 CAN-AM DecalCAN-AM Decal
-
54b704902307 Can Am LogoCan Am Logo
-
54c293150189 Pop Rivet 1/8'', BlackPop Rivet 1/8'', Black
-
55705206217 Brake SupportBrake Support
-
57705206294 DPS SupportDPS Support
-
60207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
65207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
70207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
75250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
80250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
82705207229 BushingBushing
-
85233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
90233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
115705206746 Bearing SupportBearing Support
-
116207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
120705206568 Mid TubeMid Tube
-
125293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
140233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
