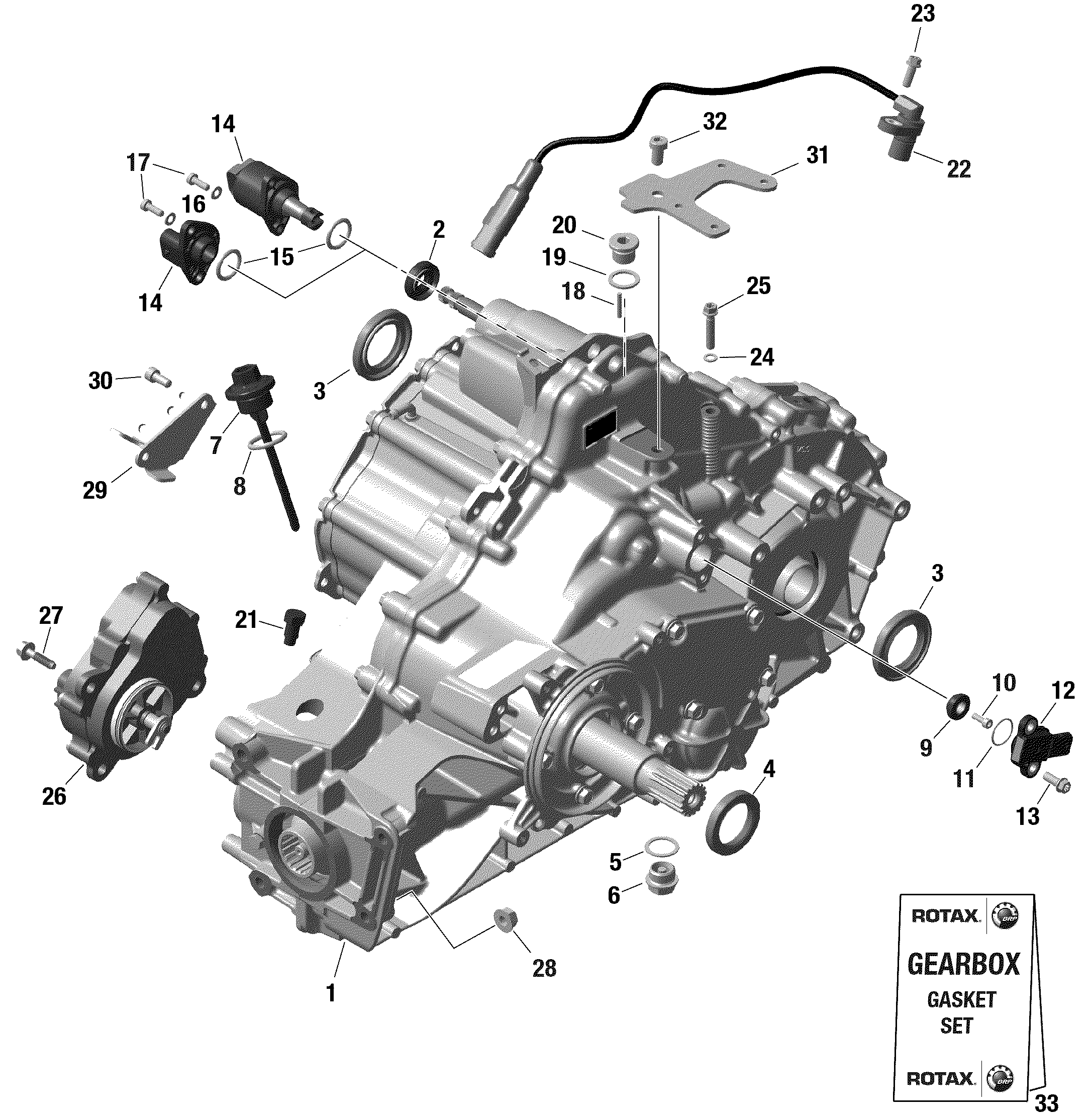

05- Gear Box And Components - 798 для BRP 004 - Maverick Sport 1000R - XMR - North America - 2020
-
№АртикулНазвание
-
1420686798 GearboxGearbox
-
2420250452 Oil SealOil Seal
-
3420230137 Oil SealOil Seal
-
4420950089 Oil SealOil Seal
-
5420552280 O-RingO-Ring
-
6420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
7420256806 Oil DipstickOil Dipstick
-
8420631640 O-RingO-Ring
-
9420256000 MagnetMagnet
-
10420440292 Allen Screw M4 X12Allen Screw M4 X12
-
11420230405 O-RingO-Ring
-
12420265122 Angle Of Rotation SensorAngle Of Rotation Sensor
-
13420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420427563 CoverCover
-
15420450450 O-RingO-Ring
-
16420927574 Washer 5.3Washer 5.3
-
17420240150 Allen Screw M5 X 14Allen Screw M5 X 14
-
19420430622 O-RingO-Ring
-
20420240234 Plug Screw M16 X 1.5Plug Screw M16 X 1.5
-
21420241905 Plug Screw M10X10Plug Screw M10X10
-
22420265621 Speed SensorSpeed Sensor
-
23420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
24420230415 Seal WasherSeal Washer
-
25420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
26>26c715900613 Actuator Ass'y 4 pinsActuator Ass'y 4 pins
-
26a293300117 O-RingO-Ring
-
26b415129175 Shifting ForkShifting Fork
-
26c293370042 CirclipCirclip
-
27420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
28420842619 Hex. Nut M8Hex. Nut M8
-
29420851548 SupportSupport
-
30420840394 Allen Screw M6X14Allen Screw M6X14
-
31420651045 Support PlateSupport Plate
-
32420941527 Allen Screw M8 X 14Allen Screw M8 X 14
-
33420686603 Gasket SetGasket Set
