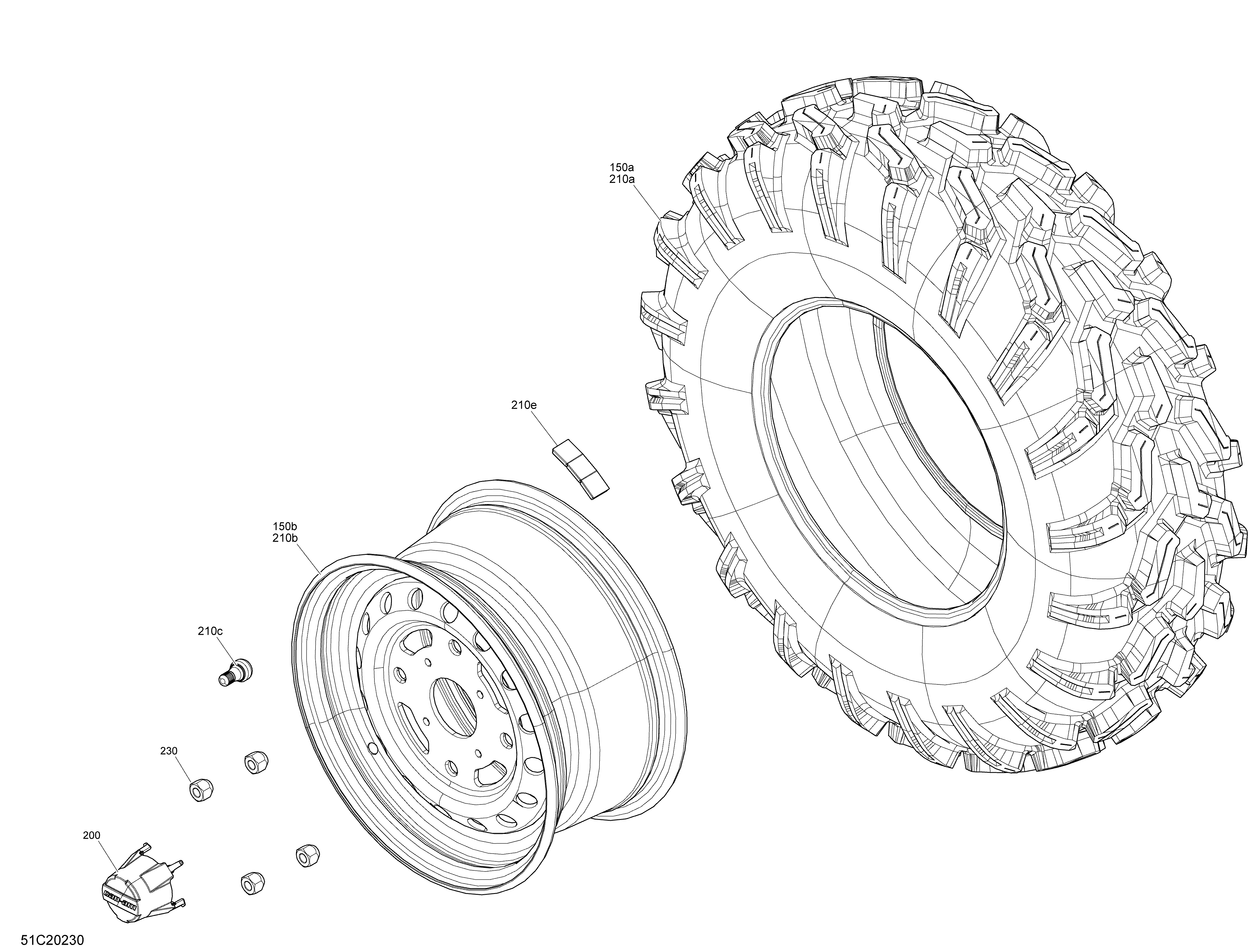

08- Wheels - BASE для BRP 001 - Maverick Sport 1000 - BASE - North America - 2020
-
№АртикулНазвание
-
150a705502938 Rear Tire 27X11X12. RearRear Tire 27X11X12. Rear
-
150b705501853 Black, Rim. RearBlack, Rim. Rear
-
200705400928 Wheel CapWheel Cap
-
210a705402560 Front Tire 27X9X12. FrontFront Tire 27X9X12. Front
-
210b705401417 Black, Rim. FrontBlack, Rim. Front
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210e705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
