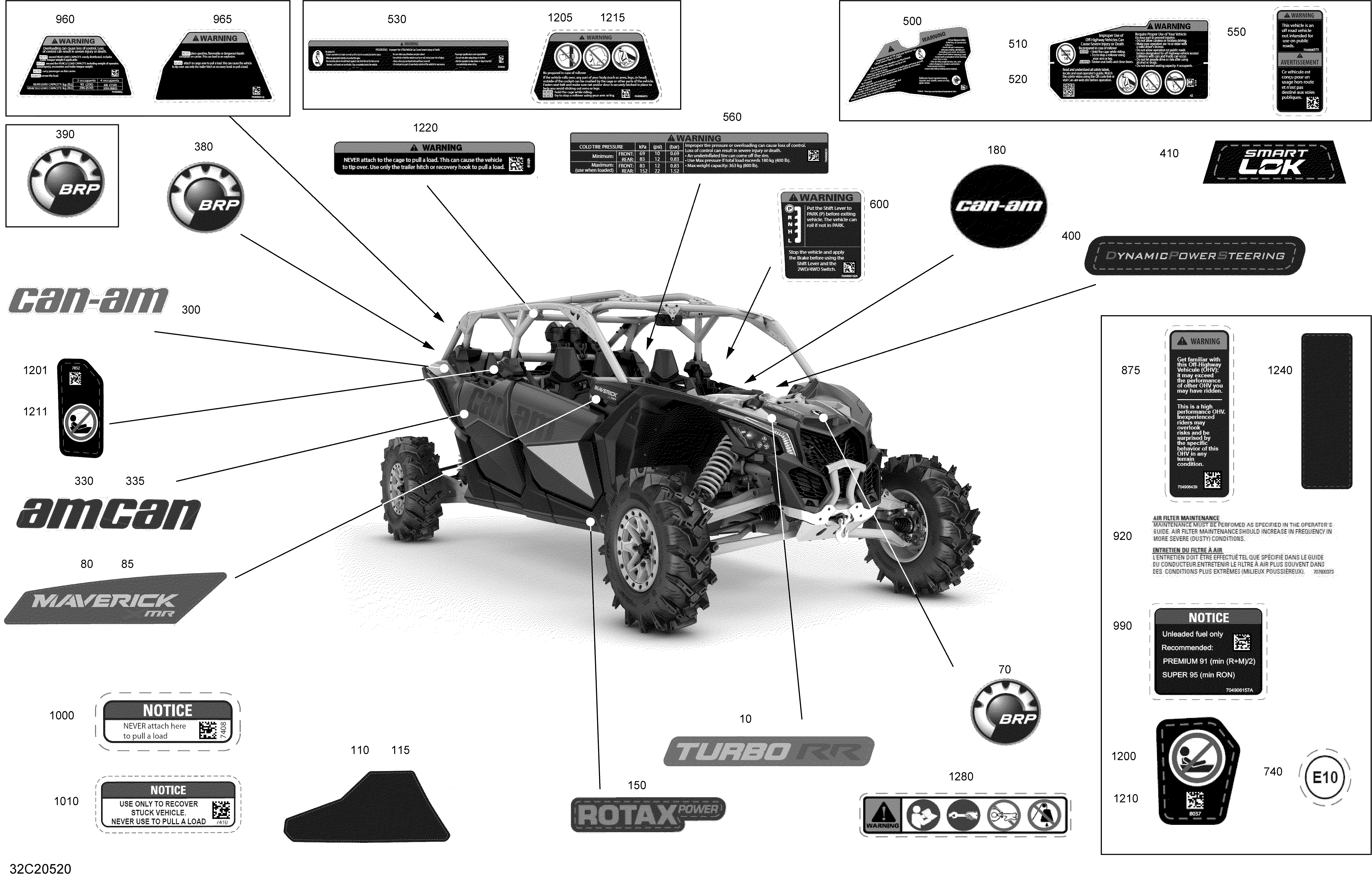

09- Decals - XMR для BRP 009 - Maverick MAX Turbo RR - XMR - North America - 2020
-
№АртикулНазвание
-
10704907767 Hood Decal ''Turbo RR''Hood Decal ''Turbo RR''
-
70516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
80704907786 LH Side Decal ''Maverick XMR''LH Side Decal ''Maverick XMR''
-
85704907792 RH Side Decal ''Maverick XMR''RH Side Decal ''Maverick XMR''
-
150704907804 Decal ''Rotax Power''Decal ''Rotax Power''
-
180704904274 ''Can-Am'' Logo''Can-Am'' Logo
-
300704907807 Decal ''Can-Am''Decal ''Can-Am''
-
330704907840 LH Front Door Decal ''Can-Am''LH Front Door Decal ''Can-Am''
-
335704907845 RH Front Door Decal ''Can-Am''RH Front Door Decal ''Can-Am''
-
380516008738 Logo 48mm ''BRP''Logo 48mm ''BRP''
-
390516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
400704905637 Decal ''Dynamic Power Steering''Decal ''Dynamic Power Steering''
-
410704907185 Decal ''Smart Lok''Decal ''Smart Lok''
-
500704907746 Warning Decal Operating GuideWarning Decal Operating Guide
-
510704908154 Warning Decal Operating GuideWarning Decal Operating Guide
-
520704908155 Warning Decal PassengerWarning Decal Passenger
-
530704906955 Warning Decal, Rear PassengerWarning Decal, Rear Passenger
-
550704906373 Decal Transport CanadaDecal Transport Canada
-
560704907335 Warning Decal Tire PressureWarning Decal Tire Pressure
-
600704907122 Warning Decal Shift LeverWarning Decal Shift Lever
-
740704907278 Decal Ethanol Percantage ''E10''Decal Ethanol Percantage ''E10''
-
875704906439 Warning Decal High PerformanceWarning Decal High Performance
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
960704906932 Warning Decal Luggage Rack 1 of 2Warning Decal Luggage Rack 1 of 2
-
965704906241 Warning Decal Luggage Rack 2 of 2Warning Decal Luggage Rack 2 of 2
-
990704906157 Decal Fuel OctaneDecal Fuel Octane
-
1000704907408 Notice Label BumperNotice Label Bumper
-
1010704907410 Notice Label LoadNotice Label Load
-
1200704908036 Pictogram Decal For DriverPictogram Decal For Driver
-
1201704907851 LH Rear Passenger Pictoram DecalLH Rear Passenger Pictoram Decal
-
1205704906835 Warning Label Roll OverWarning Label Roll Over
-
1210704908037 Passenger Pictogram DecalPassenger Pictogram Decal
-
1211704907852 RH Rear Passenger Pictoram DecalRH Rear Passenger Pictoram Decal
-
1215704906836 Warning Label Roll OverWarning Label Roll Over
-
1220704906160 Warning Decal CageWarning Decal Cage
-
1240704906441 ProtectorProtector
