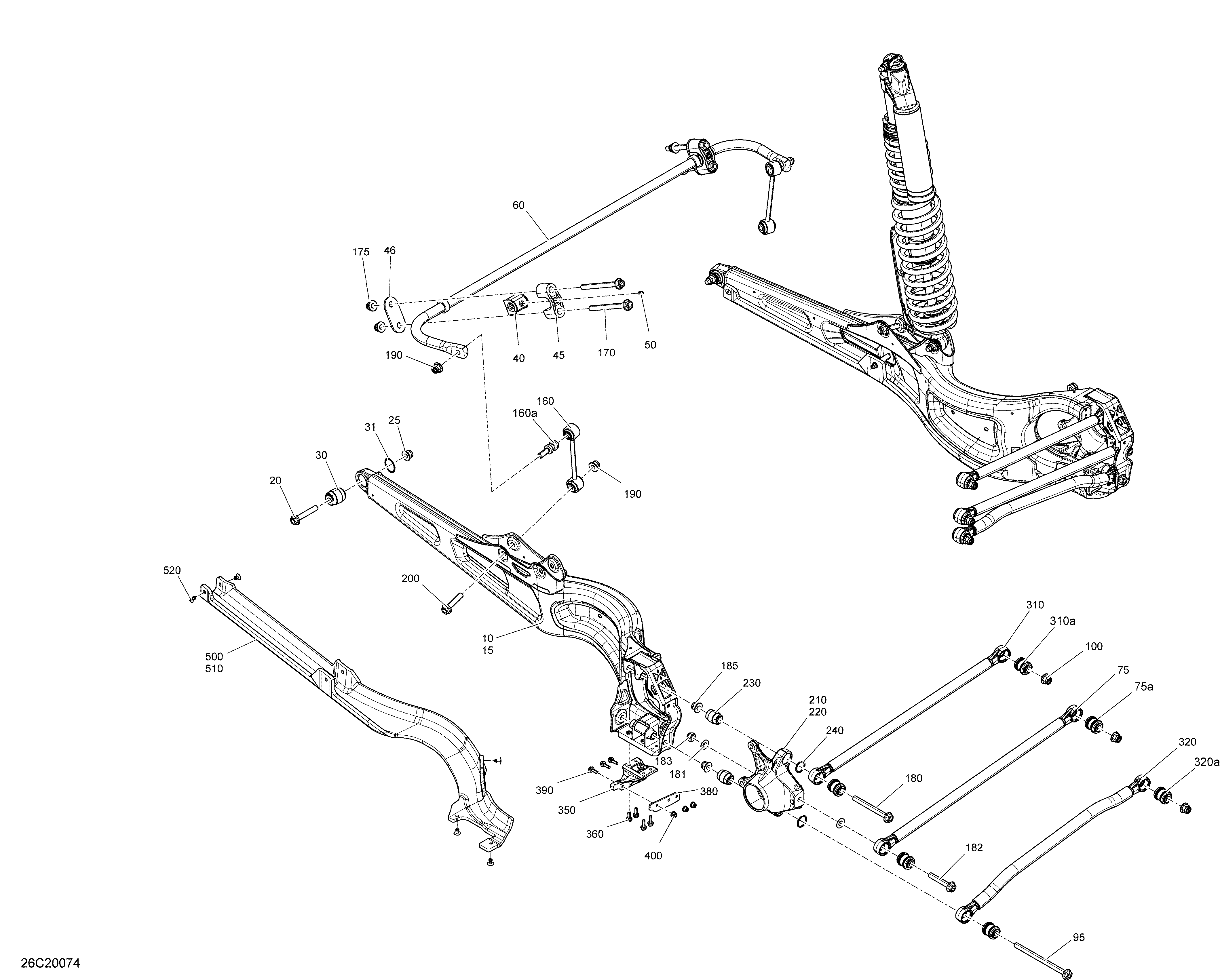

08- Rear Suspension для BRP 006 - Maverick Turbo RR - XRC - North America - 2020
-
№АртикулНазвание
-
10706003944 Orange Crush, LH Rear Suspension Arm GAOrange Crush, LH Rear Suspension Arm GA
-
15706003945 Orange Crush, RH Rear Suspension ArmOrange Crush, RH Rear Suspension Arm
-
20250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
25233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
30706001373 Radial JointRadial Joint
-
31293370093 Retaining RingRetaining Ring
-
40706002302 CushionCushion
-
45706002303 ClampClamp
-
46706002357 Support PlateSupport Plate
-
50408200700 Grease FittingGrease Fitting
-
60706002100 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
75706002307 Central Control Link. Includes 75 to 75aCentral Control Link. Includes 75 to 75a
-
75a706002135 Radial JointRadial Joint
-
95250000862 Screw Flange M12 X 175Screw Flange M12 X 175
-
100233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
160706003752 Rear Stabilizer Bar Link. Includes 160 to 160aRear Stabilizer Bar Link. Includes 160 to 160a
-
160a706002135 Radial JointRadial Joint
-
170250000861 Screw Flange M12 X 145Screw Flange M12 X 145
-
175233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
180250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
181250200086 Flat WasherFlat Washer
-
182250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
183232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
185233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
190233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
200250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210706001960 LH KhuckleLH Khuckle
-
220706001961 RH KhuckleRH Khuckle
-
230706002317 Radial JointRadial Joint
-
240293370118 Retaining RingRetaining Ring
-
310706002751 Upper Control Link. Includes 310 to 310aUpper Control Link. Includes 310 to 310a
-
310a706002135 Radial JointRadial Joint
-
320706002964 Control LinkControl Link
-
320a706002135 Radial JointRadial Joint
-
350706002905 DeflectorDeflector
-
360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
380706002851 Wear PlateWear Plate
-
390207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
400233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500706003209 72'' LH Rear Arm Protector72'' LH Rear Arm Protector
-
510706003210 72'' RH Rear Arm Protector72'' RH Rear Arm Protector
-
520293150108 Pop Rivet 3/16”Pop Rivet 3/16”
