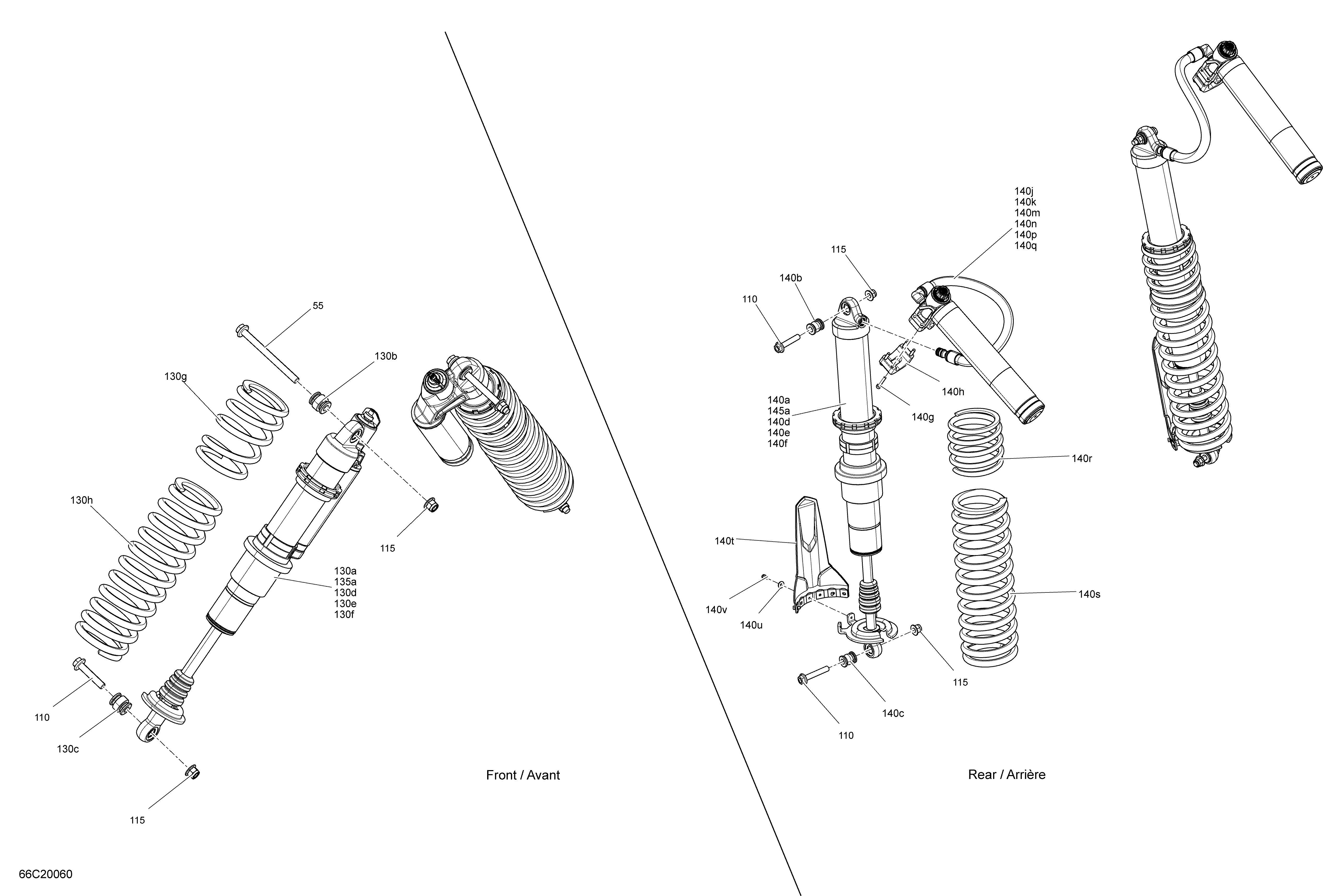

08- Shocks - XRS для BRP 004 - Maverick Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020

  • №
    Артикул
    Название
  • 55
    250000861 Screw Flange M12 X 145
    Screw Flange M12 X 145
  • 110
    250000857 Screw Flange M12 X 60
    Screw Flange M12 X 60
  • 115
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 130a
    706204044 LH Front Shock. Includes 130a to 130f
    LH Front Shock. Includes 130a to 130f
  • 130b
    715900337 Spherical Bearing
    Spherical Bearing
  • 130c
    715900482 Bearing
    Bearing
  • 130d
    715900338 O-Ring Bushing
    O-Ring Bushing
  • 130e
    715900480 Circlip
    Circlip
  • 130f
    715900481 Reducer
    Reducer
  • 130g
    706204086 Manta Green, Front Compression Spring. Model Dazzling Blue
    Manta Green, Front Compression Spring. Model Dazzling Blue
  • 130h
    706202696 Black, Front Spring. Model Timeless Black
    Black, Front Spring. Model Timeless Black
  • 130h
    706203483 Liquid Gold, Fr. Compression Spring. Model Hyper Silver
    Liquid Gold, Fr. Compression Spring. Model Hyper Silver
  • 130h
    706203842 Manta Green, Front Compression Spring. Model Dazzling Blue
    Manta Green, Front Compression Spring. Model Dazzling Blue
  • 135a
    706204045 RH Front Shock. Includes 135a to 135f
    RH Front Shock. Includes 135a to 135f
  • 140a
    706003896 Rear Shock Absorber. Includes 140a to 140h
    Rear Shock Absorber. Includes 140a to 140h
  • 140b
    715900337 Spherical Bearing
    Spherical Bearing
  • 140c
    715900482 Bearing
    Bearing
  • 140d
    715900338 O-Ring Bushing
    O-Ring Bushing
  • 140e
    715900480 Circlip
    Circlip
  • 140f
    715900481 Reducer
    Reducer
  • 140g
    715900521 Screw M6 X 35
    Screw M6 X 35
  • 140h
    715900522 Reservoir Clamp
    Reservoir Clamp
  • 140j
    715900605 Preload Ring
    Preload Ring
  • 140k
    715900606 Preload Ring Backup
    Preload Ring Backup
  • 140m
    715900607 Spring Adapter
    Spring Adapter
  • 140n
    715900608 Crossover ring
    Crossover ring
  • 140p
    715900597 Spring Retainer
    Spring Retainer
  • 140q
    715900593 Spring Coupler
    Spring Coupler
  • 140r
    706003585 Manta Green, Rear Compression Spring. Model Dazzling Blue
    Manta Green, Rear Compression Spring. Model Dazzling Blue
  • 140r
    706002564 Black, Rear Spring. Model Timeless Black
    Black, Rear Spring. Model Timeless Black
  • 140r
    706003291 Liquid Gold, Rear Compression Spring. Model Hyper Silver
    Liquid Gold, Rear Compression Spring. Model Hyper Silver
  • 140s
    706003936 Manta Green, Compression Spring. Model Dazzling Blue
    Manta Green, Compression Spring. Model Dazzling Blue
  • 140t
    706202215 Protector
    Protector
  • 140u
    250200025 Washer M5
    Washer M5
  • 140v
    210251150 Hex. Flanged Screw M5 X 11
    Hex. Flanged Screw M5 X 11
  • 145a
    706003896 Rear Shock Absorber. Includes 145a to 145h
    Rear Shock Absorber. Includes 145a to 145h
