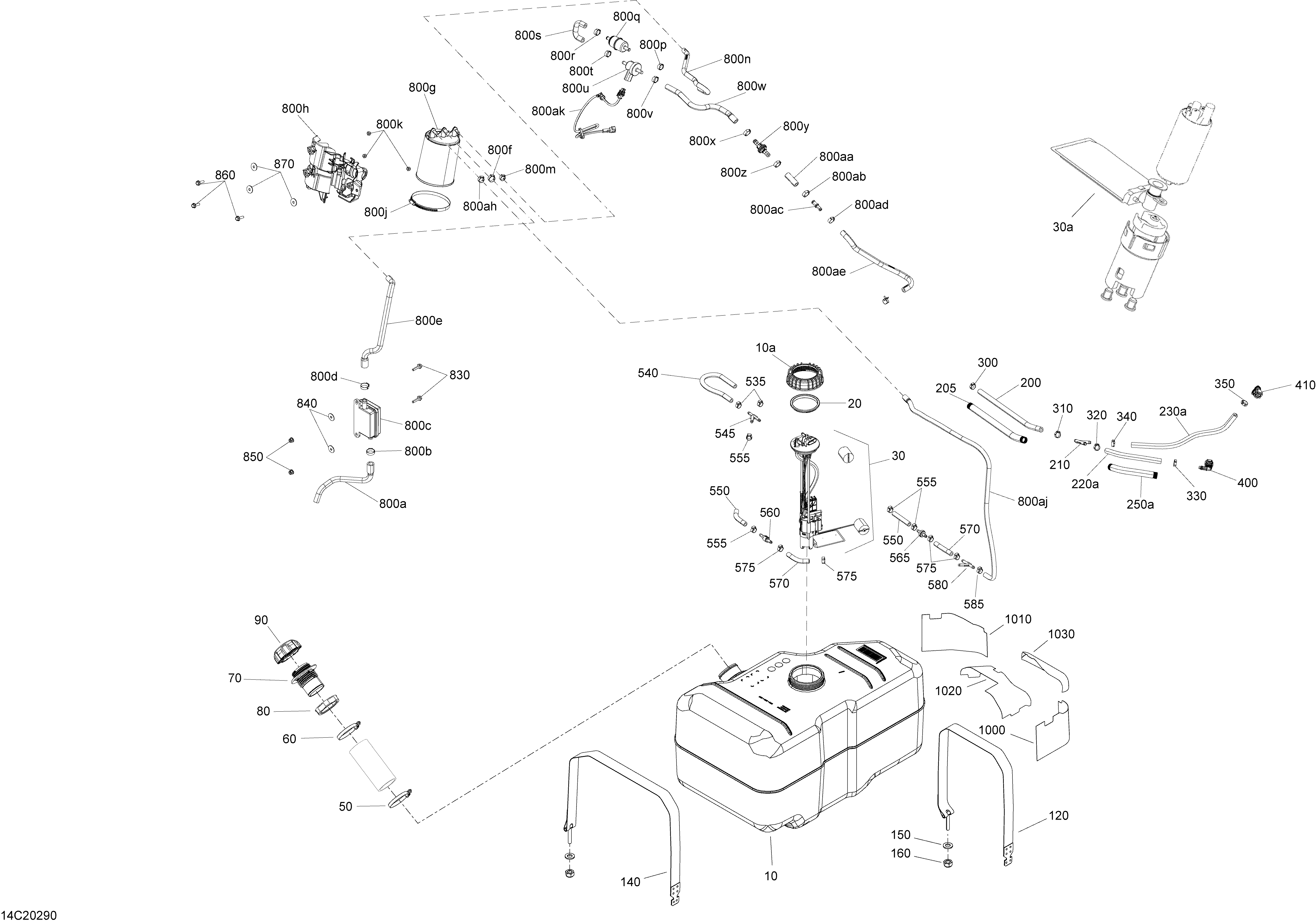

02- Engine - Fuel - Evap для BRP 009 - Defender MAX HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
10709001077 Fuel Tank Ass'y. Includes 10 to 10aFuel Tank Ass'y. Includes 10 to 10a
-
10a709000328 Fuel Pump Module NutFuel Pump Module Nut
-
20709000208 SealSeal
-
30709000662 Fuel Pump. Includes 30 to 30aFuel Pump. Includes 30 to 30a
-
30a715900322 Prefilter Fuel Pump KitPrefilter Fuel Pump Kit
-
50293650081 Norma ClampNorma Clamp
-
60293650081 Norma ClampNorma Clamp
-
70709000867 Filler NeckFiller Neck
-
80211100012 Filler Neck Nut, FuelFiller Neck Nut, Fuel
-
90709000868 Fuel CapFuel Cap
-
120709001140 Retaining StrapRetaining Strap
-
140709001141 Retaining StrapRetaining Strap
-
150234081410 Flat Washer 8 mmFlat Washer 8 mm
-
160232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
200709000516 Fuel LineFuel Line
-
205415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
210293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
220a709000516 Fuel LineFuel Line
-
230a709000516 Fuel LineFuel Line
-
250a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
-
300293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
310293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
320293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
330293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
340293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
350293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
400275500700 Quick Attach 90°Quick Attach 90°
-
410275500700 Quick Attach 90°Quick Attach 90°
-
535293650042 Oetiker ClampOetiker Clamp
-
540709000667 HoseHose
-
545293710059 Y-FittingY-Fitting
-
550709000667 HoseHose
-
555293650042 Oetiker ClampOetiker Clamp
-
560513033469 Check ValveCheck Valve
-
565275500398 Check ValveCheck Valve
-
570709000667 HoseHose
-
575293650042 Oetiker ClampOetiker Clamp
-
580293710059 Y-FittingY-Fitting
-
585293650042 Oetiker ClampOetiker Clamp
-
800a709000849 Formed HoseFormed Hose
-
800b293650186 Oetiker ClampOetiker Clamp
-
800c709000524 Air FilterAir Filter
-
800d293650186 Oetiker ClampOetiker Clamp
-
800e709000850 Formed HoseFormed Hose
-
800f293650053 Crimp ClampCrimp Clamp
-
800g709000806 Vapor CanisterVapor Canister
-
800h709000851 Canister SupportCanister Support
-
800j293650054 Tridon ClampTridon Clamp
-
800k232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
800m293650042 Oetiker ClampOetiker Clamp
-
800n709000853 Formed HoseFormed Hose
-
800p293650046 Oetiker ClampOetiker Clamp
-
800q513033719 FilterFilter
-
800r293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800s709000857 Formed HoseFormed Hose
-
800t293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800u709000443 Bleed ValveBleed Valve
-
800v293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800w709000937 Formed HoseFormed Hose
-
800x293650053 Crimp ClampCrimp Clamp
-
800y275500941 Valve-CheckValve-Check
-
800z293650053 Crimp ClampCrimp Clamp
-
800aa709000882 HoseHose
-
800ab293650053 Crimp ClampCrimp Clamp
-
800ac709000933 Flow ReducerFlow Reducer
-
800ad293650047 Crimp Clamp, 15.3-706RCrimp Clamp, 15.3-706R
-
800ae709000855 Formed HoseFormed Hose
-
800ae709001092 Formed HoseFormed Hose
-
800ah293650046 Oetiker Clamp. Includes 800ah to 800ajOetiker Clamp. Includes 800ah to 800aj
-
800aj709000667 HoseHose
-
800ak710005718 Purge Valve CablePurge Valve Cable
-
830207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
840250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
850233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
860207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
870250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1000707002670 Heat ShieldHeat Shield
-
1010707002671 Heat ShieldHeat Shield
-
1020707002673 Heat ShieldHeat Shield
-
1030707002674 Heat ShieldHeat Shield
