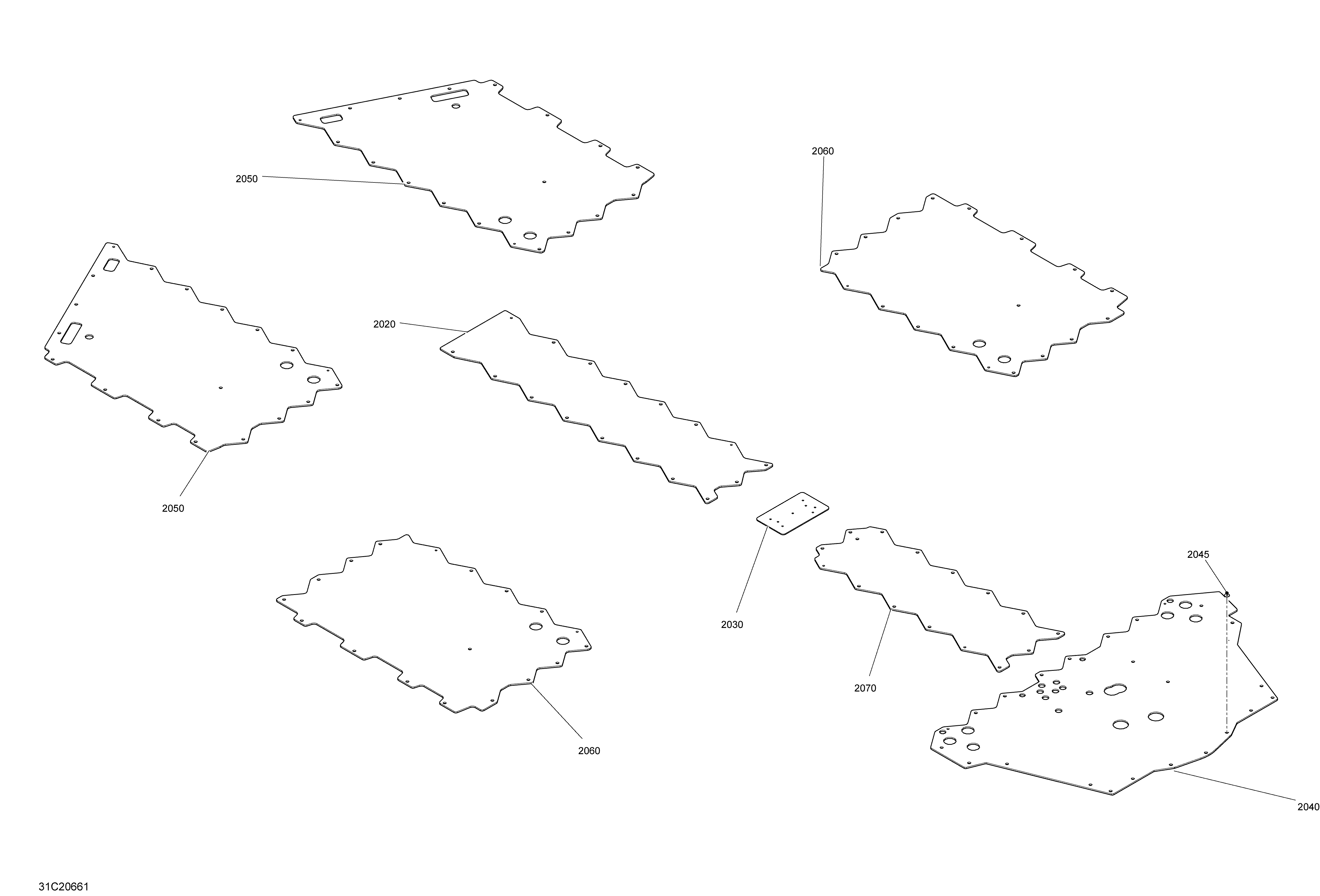

09- Body - Skid Plates - XMR для BRP 008 - Defender MAX HD10 - XMR - North America - 2020
-
№АртикулНазвание
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2030705010884 Connection PlateConnection Plate
-
2040705013630 Rear Skid PlateRear Skid Plate
-
2045293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050705010422 Lateral Skid PlateLateral Skid Plate
-
2060705010587 Rear Side Skid PlateRear Side Skid Plate
-
2070705010588 Rear Central Skid PlateRear Central Skid Plate
