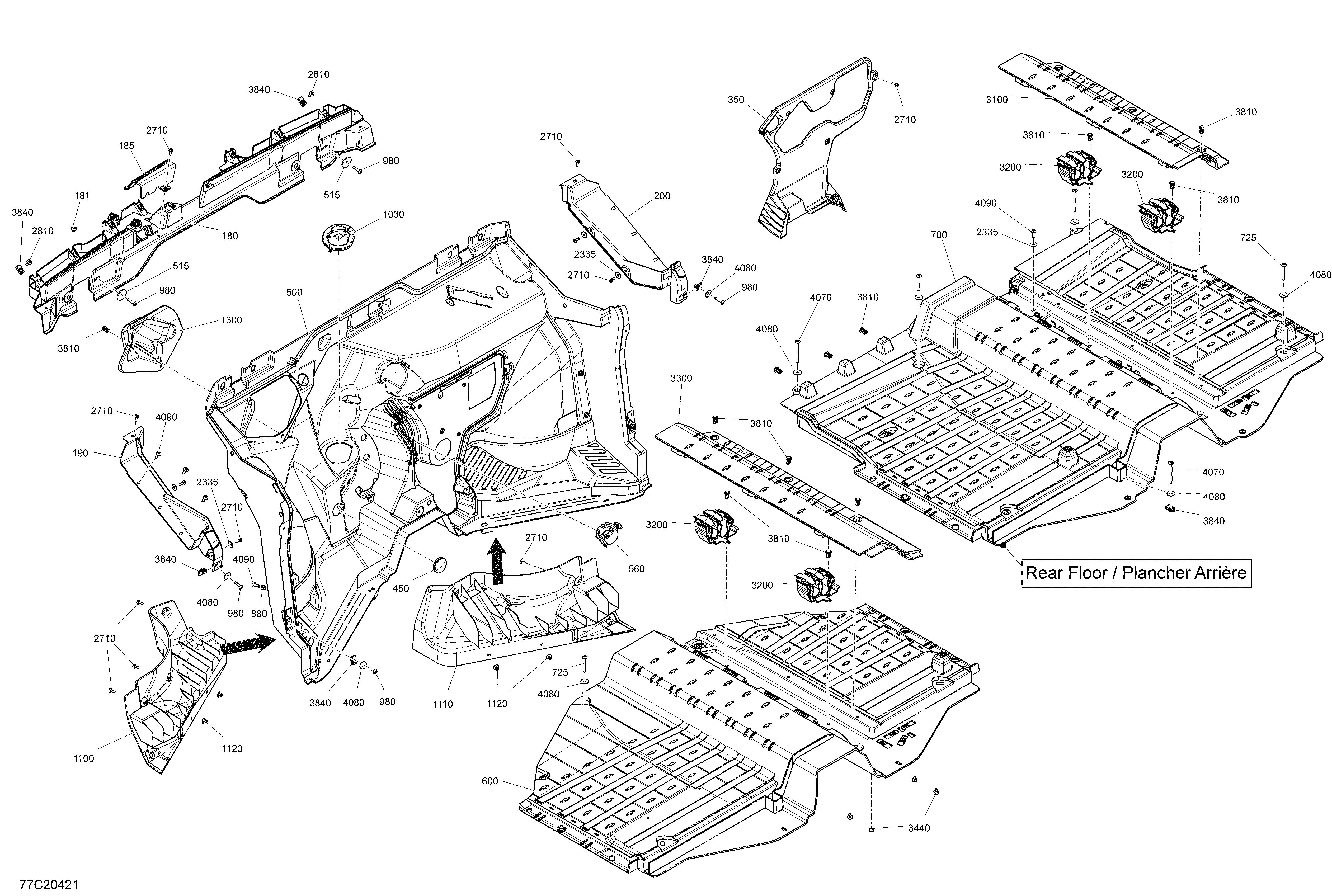

09- Cab Interior - Fire Wall Section для BRP 007 - Defender MAX HD10 - Except XMR - North America - 2020

  • №
    Артикул
    Название
  • 180
    707900755 Front Upper Deflector
    Front Upper Deflector
  • 181
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 185
    707900747 Front Upper Deflector
    Front Upper Deflector
  • 190
    707900738 LH Upper Deflector
    LH Upper Deflector
  • 200
    707900739 RH Upper Deflector
    RH Upper Deflector
  • 350
    707900740 Front Panel Trim
    Front Panel Trim
  • 450
    293250242 Rubber Cover
    Rubber Cover
  • 500
    707900712 Front Cab Panel Ass'y
    Front Cab Panel Ass'y
  • 515
    250200158 Flat Washer M8
    Flat Washer M8
  • 560
    707900719 Split Grommet
    Split Grommet
  • 600
    707900431 Floor
    Floor
  • 700
    707900464 Rear Floor Ass'y
    Rear Floor Ass'y
  • 725
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 880
    233161464 Hex. Elastic Flange Nut M6
    Hex. Elastic Flange Nut M6
  • 980
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 1030
    707900753 Steering Column Trim
    Steering Column Trim
  • 1100
    707900750 LH Front Deflector
    LH Front Deflector
  • 1110
    707900751 RH Front Deflector
    RH Front Deflector
  • 1120
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1300
    707900389 Exterior Cover
    Exterior Cover
  • 2335
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2710
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 2810
    250000721 Torx Truss Screw M6 X 16
    Torx Truss Screw M6 X 16
  • 3100
    707900806 Floor Panel
    Floor Panel
  • 3200
    707900325 Hose Support
    Hose Support
  • 3300
    707900807 Floor Plancher
    Floor Plancher
  • 3440
    293830005 Rubber Bumper
    Rubber Bumper
  • 3810
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 3840
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 4070
    250000954 Torx Screw M6 X 70
    Torx Screw M6 X 70
  • 4080
    250200162 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 4090
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
