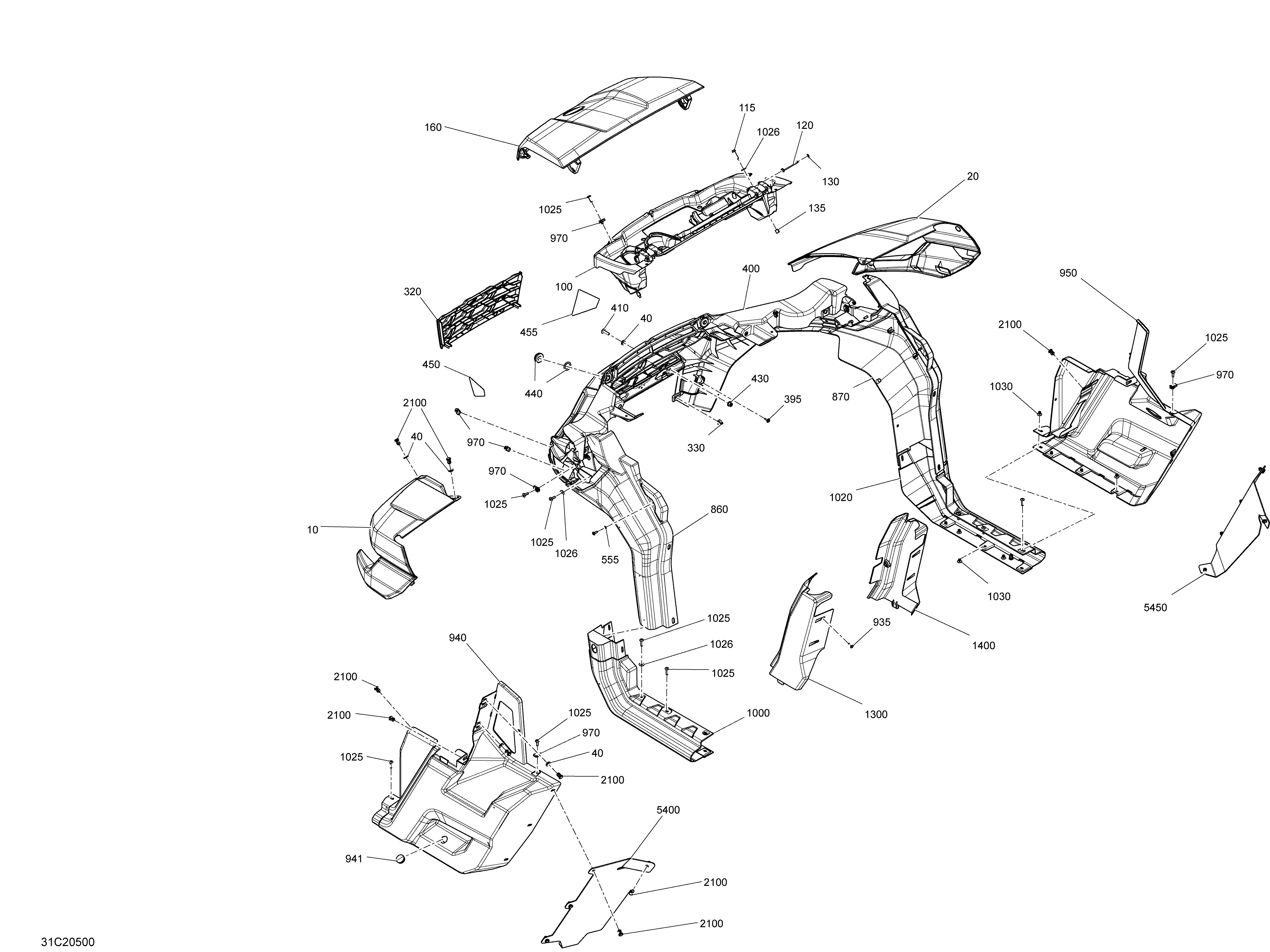

09- Body - XTP для BRP 003 - Defender HD10 - Except XMR - North America - 2020

  • №
    Артикул
    Название
  • 10
    705012322 Carbon Black, Front LH Fender
    Carbon Black, Front LH Fender
  • 20
    705012323 Carbon Black, RH Front Fender
    Carbon Black, RH Front Fender
  • 40
    503192494 Washer
    Washer
  • 100
    705013766 Multi Purpose Support
    Multi Purpose Support
  • 115
    210263050 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 120
    207667554 Screw Hex Flange M6 X 75
    Screw Hex Flange M6 X 75
  • 130
    732610072 Push Nut
    Push Nut
  • 135
    293900125 Bushing
    Bushing
  • 160
    705014062 Carbon Black, Front Hood
    Carbon Black, Front Hood
  • 320
    705013590 Grill
    Grill
  • 330
    517306478 Clip
    Clip
  • 395
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 400
    705013591 Deep Black, Front Fascia
    Deep Black, Front Fascia
  • 410
    250000886 Torx Screw M8 X 30
    Torx Screw M8 X 30
  • 430
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 440
    705010718 Grommet
    Grommet
  • 450
    704905072 LH Front Reflector
    LH Front Reflector
  • 455
    704905073 RH Front Reflector
    RH Front Reflector
  • 555
    234051670 Flat Washer M5
    Flat Washer M5
  • 860
    705008152 LH Front Lateral Panel
    LH Front Lateral Panel
  • 870
    705008153 RH Front Lateral Panel
    RH Front Lateral Panel
  • 935
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 940
    705013658 Deep Black, LH Rear Body Panel
    Deep Black, LH Rear Body Panel
  • 941
    414916600 Black Nylon Cap
    Black Nylon Cap
  • 950
    705013659 Deep Black, RH Rear Body Panel
    Deep Black, RH Rear Body Panel
  • 970
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 1000
    705008699 LH Central Lateral Panel
    LH Central Lateral Panel
  • 1020
    705008700 RH Central Lateral Panel
    RH Central Lateral Panel
  • 1025
    250000807 Torx Truss Screw M6 X 25
    Torx Truss Screw M6 X 25
  • 1026
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1030
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 1300
    715003564 LH Rear Cage Cover Kit
    LH Rear Cage Cover Kit
  • 1400
    715003565 RH Rear Cage Cover Kit
    RH Rear Cage Cover Kit
  • 2100
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 5400
    705013057 LH Rear Deflector
    LH Rear Deflector
  • 5450
    705013058 RH Rear Deflector
    RH Rear Deflector
