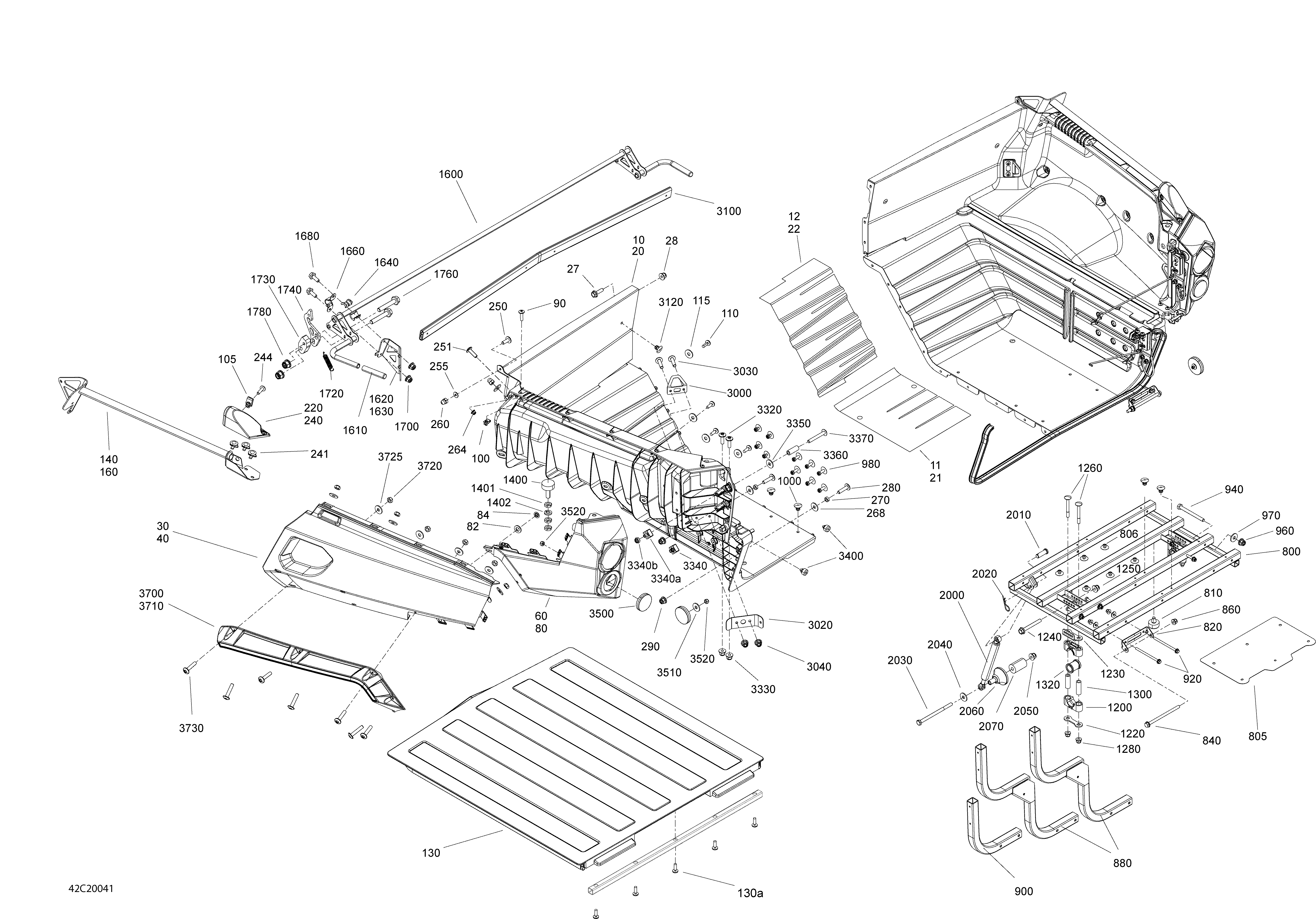

09- Rear Cargo Box - Box для BRP 004 - Commander MAX 1000R EFI - North America - 2020
-
№АртикулНазвание
-
10715002361 Left Box KitLeft Box Kit
-
11708300809 Heat Deflector SheetHeat Deflector Sheet
-
12708300811 Heat Deflector SheetHeat Deflector Sheet
-
20715003387 Right Box KitRight Box Kit
-
21708300810 Heat Deflector SheetHeat Deflector Sheet
-
22708300812 Heat Deflector SheetHeat Deflector Sheet
-
27207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
30708302767 Boreal Green, LH Rear Fender. Package XTBoreal Green, LH Rear Fender. Package XT
-
40708302768 Boreal Green, RH Rear Fender. Package XTBoreal Green, RH Rear Fender. Package XT
-
60708301383 LH Rear FaciaLH Rear Facia
-
80708301384 RH Rear FaciaRH Rear Facia
-
82234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
84732610072 Push NutPush Nut
-
90250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
100250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
105250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
110250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
115234062670 Flat Washer, StainlessFlat Washer, Stainless
-
130708300131 Separator Pannel Ass'y. Includes 130 to 130aSeparator Pannel Ass'y. Includes 130 to 130a
-
130a250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140708300231 LH Welded RailLH Welded Rail
-
160708300232 RH Welded RailRH Welded Rail
-
220708301380 LH Rail CoverLH Rail Cover
-
240708301381 RH Rail CoverRH Rail Cover
-
241293150190 Pop Rivet 3/16Pop Rivet 3/16
-
244250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
250250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
251250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
255234062670 Flat Washer, StainlessFlat Washer, Stainless
-
260232361493 Domed Nut M6Domed Nut M6
-
264233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
268234062670 Flat Washer, StainlessFlat Washer, Stainless
-
270708300737 BushingBushing
-
280250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
290233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
800708300875 Black Box SupportBlack Box Support
-
805708300780 Heat DeflectorHeat Deflector
-
806293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
810708000884 Rubber StopperRubber Stopper
-
820708300185 Bracket PivotBracket Pivot
-
840230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
860233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
880708300879 Black Welded Lateral SupportBlack Welded Lateral Support
-
900708300877 Black Lateral SupportBlack Lateral Support
-
920207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
940207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
960233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
970234062410 Flat Washer 6 mmFlat Washer 6 mm
-
980293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200506150400 Housing HalfHousing Half
-
1220506150600 Stopper PlateStopper Plate
-
1230708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
1240207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
1250233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1260207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
1280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1300506150500 Housing BushingHousing Bushing
-
1320708300172 Pivot BushingPivot Bushing
-
1400293720091 Frame Rubber BumperFrame Rubber Bumper
-
1401232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
1402234181401 Lock Washer 8 mmLock Washer 8 mm
-
1600708300751 Cargo Handle Ass'yCargo Handle Ass'y
-
1610708300358 Cap Latch LeverCap Latch Lever
-
1620708300278 LH Latch Lever SupportLH Latch Lever Support
-
1630708300351 RH Latch Lever SupportRH Latch Lever Support
-
1640705500033 Half RingHalf Ring
-
1660708300392 Clamp ReatinerClamp Reatiner
-
1680207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1700233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1720708300454 SpringSpring
-
1730708300902 SpacerSpacer
-
1740708300136 Box RetainerBox Retainer
-
1760250001028 Hex. Flanged Screw M6 X 45Hex. Flanged Screw M6 X 45
-
1780233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2000708301136 Gaz ShockGaz Shock
-
2010414079100 PinPin
-
2020414575600 Hair PinHair Pin
-
2030207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
2040234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2050233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2060708301059 SpacerSpacer
-
2070708300470 SpacerSpacer
-
3000708300183 Retaining PlateRetaining Plate
-
3020708300206 Retaining Plate SupportRetaining Plate Support
-
3030250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
3040233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
3100708301633 Front SupportFront Support
-
3120293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3330233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
3340269500725 Nut Housing Ass'y. Includes 3340 to 3340bNut Housing Ass'y. Includes 3340 to 3340b
-
3340a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
3340b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
3350234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3360708300736 SpacerSpacer
-
3370250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
3400293830005 Rubber BumperRubber Bumper
-
3500705011221 Red ReflectorRed Reflector
-
3510234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3520232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3700705008671 LH Upper Rear MudguardsLH Upper Rear Mudguards
-
3710705008673 RH Upper Rear MudguardsRH Upper Rear Mudguards
-
3720232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3725234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3730250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
