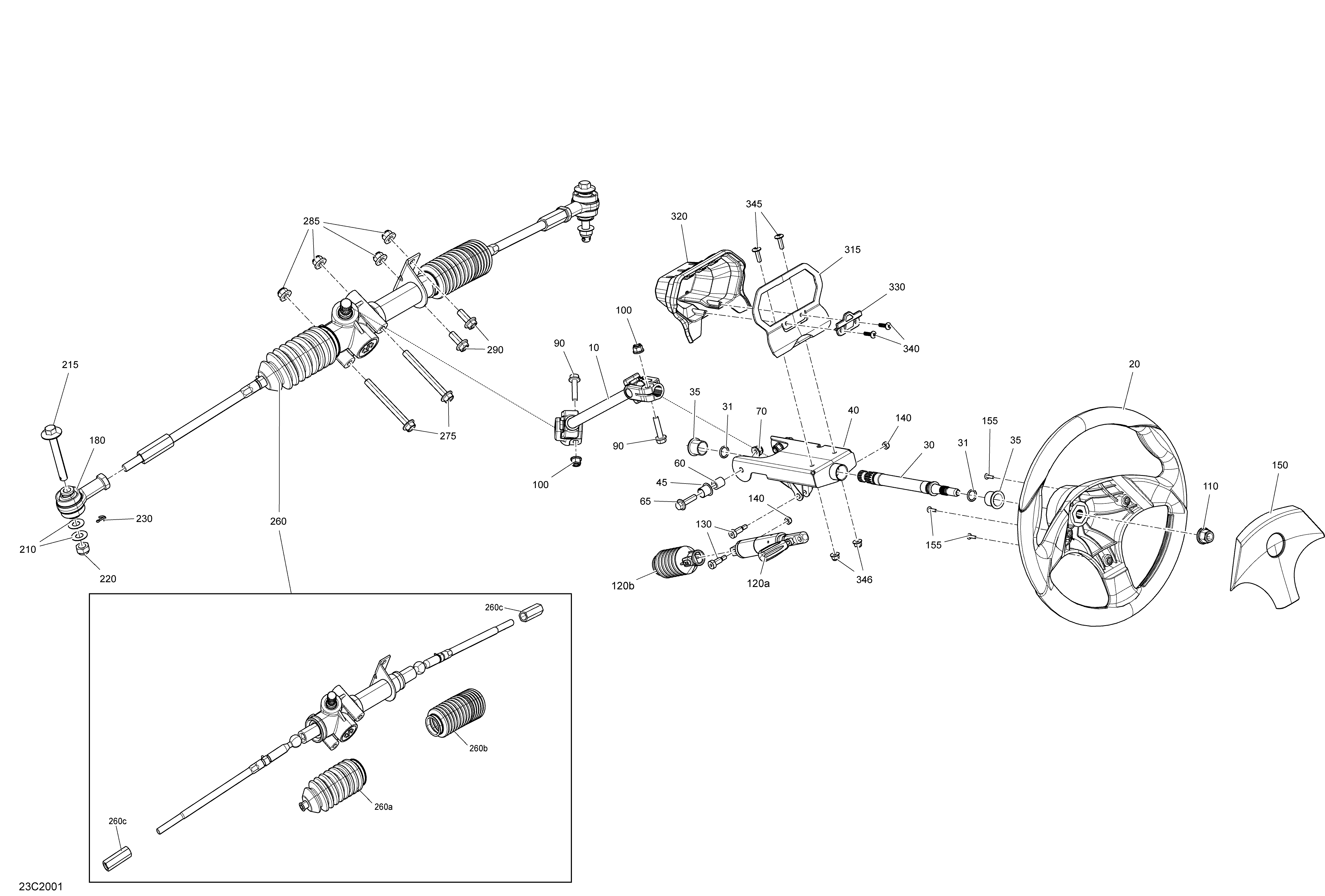

07- Steering - STD для BRP 001 - Commander 800R EFI - North America - 2020

  • №
    Артикул
    Название
  • 10
    709401498 Steering Shaft Ass'y
    Steering Shaft Ass'y
  • 20
    709400650 Steering Wheel
    Steering Wheel
  • 30
    709401167 Steering Shaft
    Steering Shaft
  • 31
    293300144 O-Ring
    O-Ring
  • 35
    415108000 Cushion
    Cushion
  • 40
    709401391 Painted Steering Wheel Support
    Painted Steering Wheel Support
  • 45
    705600799 Bushing
    Bushing
  • 60
    293900106 Bushing
    Bushing
  • 65
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 70
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 90
    250001021 Flanged Hex. Screw M8 X 35
    Flanged Hex. Screw M8 X 35
  • 100
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 110
    233221414 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 120a
    709402419 Adjustment Cylinder
    Adjustment Cylinder
  • 120b
    709401232 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 130
    250000669 Socket Head Screw M8 X 16
    Socket Head Screw M8 X 16
  • 140
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 150
    709400780 Steering Center
    Steering Center
  • 155
    250000723 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 180
    709401134 Ball Joint
    Ball Joint
  • 210
    250200086 Flat Washer
    Flat Washer
  • 215
    250001029 Hexagonal Screw M12 X 88
    Hexagonal Screw M12 X 88
  • 220
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 230
    211400017 Cotter Pin
    Cotter Pin
  • 260
    709402387 Rack And Pinion Steering. Includes 260 to 260c
    Rack And Pinion Steering. Includes 260 to 260c
  • 260a
    715900235 Boot Kit, Pinion Side
    Boot Kit, Pinion Side
  • 260b
    715900236 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 260c
    715900237 Nut Tie Rod End
    Nut Tie Rod End
  • 275
    230600046 Screw-Hex.Flange DIN.6921
    Screw-Hex.Flange DIN.6921
  • 285
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 290
    207602546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 315
    709400760 Cluster Support
    Cluster Support
  • 320
    709400514 Speedometer Cover
    Speedometer Cover
  • 330
    709400573 Latch Indicator Cover
    Latch Indicator Cover
  • 340
    250000760 Torx Screw Truss Head K50X20 T20
    Torx Screw Truss Head K50X20 T20
  • 345
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 346
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
