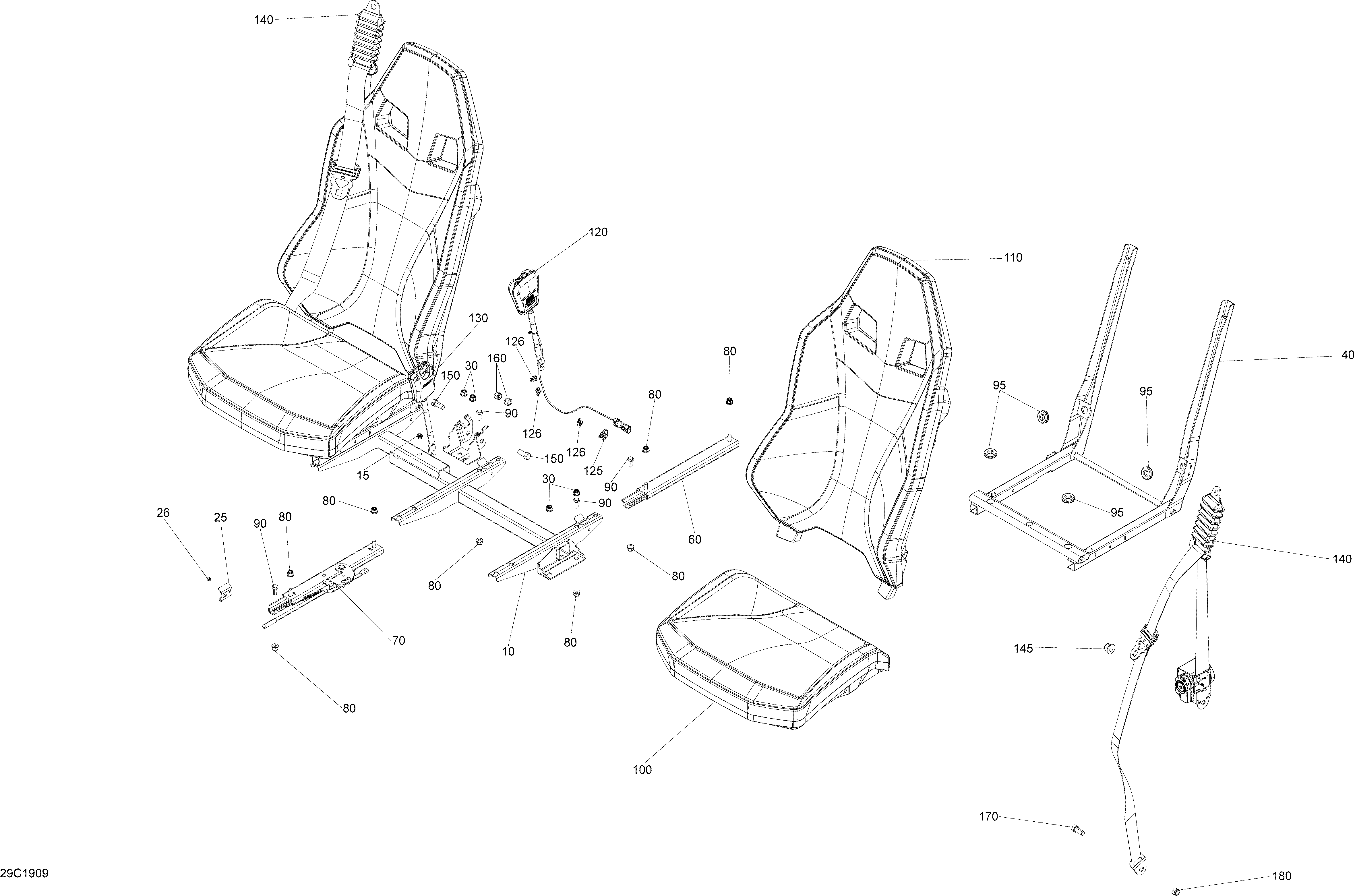

09- Seat для BRP 003 - Maverick Trail 1000 - DPS - T2B Series - 2019

  • №
    Артикул
    Название
  • 10
    708002421 Seat Member
    Seat Member
  • 15
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
  • 25
    708002640 Seat Stopper
    Seat Stopper
  • 26
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 30
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 40
    708002423 Seat Frame
    Seat Frame
  • 45
    708002945 Seat Support Kit. Includes 45 to 45a
    Seat Support Kit. Includes 45 to 45a
  • 45a
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 60
    708000848 LH Rail
    LH Rail
  • 70
    708002711 RH Rail
    RH Rail
  • 80
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 90
    207182044 Hex. Screw M8 X 20
    Hex. Screw M8 X 20
  • 95
    517303756 Grommet
    Grommet
  • 100
    708002839 Cushion Assembly. Package Base
    Cushion Assembly. Package Base
  • 100
    708002847 Cushion Assembly. Package DPS
    Cushion Assembly. Package DPS
  • 100
    708002862 Cushion Assembly. Package Base
    Cushion Assembly. Package Base
  • 100
    708002863 Cushion Assembly. Package DPS
    Cushion Assembly. Package DPS
  • 105
    708002862 Cushion Assembly. Package Base
    Cushion Assembly. Package Base
  • 105
    708002863 Cushion Assembly. Package DPS
    Cushion Assembly. Package DPS
  • 110
    708002430 Backrest Ass'y. Package Base
    Backrest Ass'y. Package Base
  • 110
    708002859 Backrest Ass'y. Package DPS
    Backrest Ass'y. Package DPS
  • 114
    515176795 Clip
    Clip
  • 115
    710005543 Passanger Detection Switch
    Passanger Detection Switch
  • 116
    250000760 Torx Screw Truss Head K50X20 T20
    Torx Screw Truss Head K50X20 T20
  • 120
    708002331 Driver Buckle
    Driver Buckle
  • 125
    710005237 Christmas Tree Tie-Rap
    Christmas Tree Tie-Rap
  • 126
    710003168 Christmas Tree Tie-Rap 200 mm
    Christmas Tree Tie-Rap 200 mm
  • 130
    708002329 Passenger Buckle
    Passenger Buckle
  • 140
    708002712 Safety Belt
    Safety Belt
  • 145
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 150
    250000521 Hex. Cap Screw 7/16'' X 1''
    Hex. Cap Screw 7/16'' X 1''
  • 160
    250100183 Lock Nut Nylon 7/16
    Lock Nut Nylon 7/16
  • 170
    250000521 Hex. Cap Screw 7/16'' X 1''
    Hex. Cap Screw 7/16'' X 1''
  • 180
    250100183 Lock Nut Nylon 7/16
    Lock Nut Nylon 7/16
  • 1000
    708002443 Safet Belt Screw. Not Shown
    Safet Belt Screw. Not Shown
  • 1010
    708000891 Position Washer. Not Shown
    Position Washer. Not Shown
