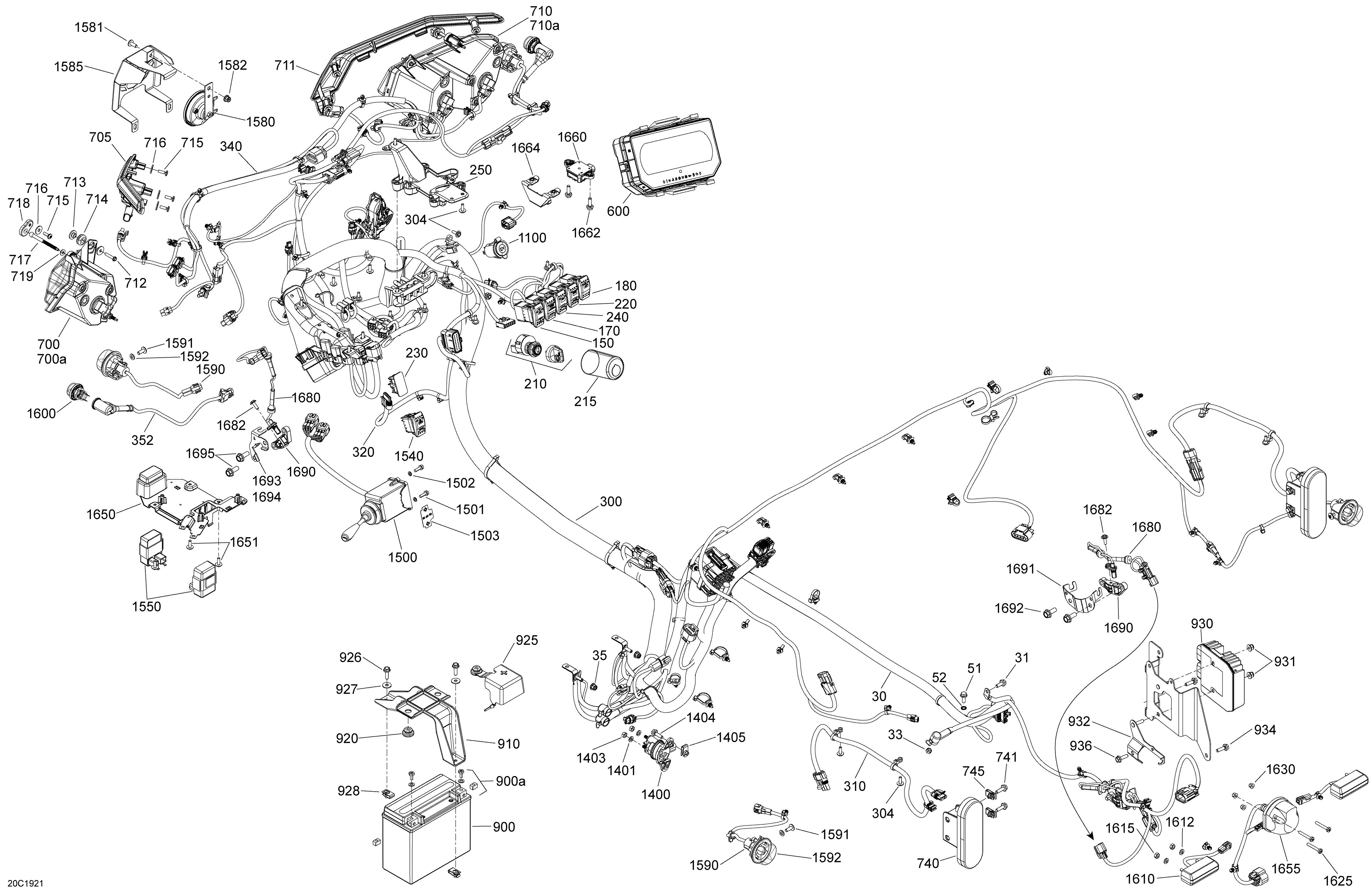

10- Electrical для BRP 002 - Maverick Sport MAX 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
30710006233 Starter Wiring HarnessStarter Wiring Harness
-
31207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
51207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
52234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
150710005489 SwitchSwitch
-
170710005470 Differential Lock SwitchDifferential Lock Switch
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
220710005909 Driving Mode SwitchDriving Mode Switch
-
230710001999 Plug CarlingPlug Carling
-
240710006183 Cluster Navigator SwitchCluster Navigator Switch
-
250710005672 Housing SupportHousing Support
-
300710006237 Main Wiring Harness LongMain Wiring Harness Long
-
304250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
310710006551 Rear HarnessRear Harness
-
320710005929 Trottle Pedal HarnessTrottle Pedal Harness
-
340710006218 Front Wiring HarnessFront Wiring Harness
-
352710005676 Position Light HarnessPosition Light Harness
-
600710005263 SpeedometerSpeedometer
-
700710006422 LH Headlamp. Includes 700 to 700aLH Headlamp. Includes 700 to 700a
-
700a715900141 Bulb 12V 55WBulb 12V 55W
-
705710004994 LH Signature BeamLH Signature Beam
-
710710006423 RH Headlamp. Includes 710 to 710aRH Headlamp. Includes 710 to 710a
-
710a715900141 Bulb 12V 55WBulb 12V 55W
-
711710004995 RH Signature BeamRH Signature Beam
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
713710004749 Shoulder BushingShoulder Bushing
-
714293720053 GrommetGrommet
-
715250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
716234062670 Flat Washer, StainlessFlat Washer, Stainless
-
717710005837 Ajustment ScrewAjustment Screw
-
718710005097 Adjustment GuideAdjustment Guide
-
719293300192 O-RingO-Ring
-
740710004257 Tail LightTail Light
-
741207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
910710005673 Fixation PlateFixation Plate
-
920705003666 Rubber GrommetRubber Grommet
-
925710005930 Battery Cable CapBattery Cable Cap
-
926207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
927234062670 Flat Washer, StainlessFlat Washer, Stainless
-
928250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
930710005842 Voltage RegulatorVoltage Regulator
-
931233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
932710006402 Voltage Regulator AttachVoltage Regulator Attach
-
934710006656 Voltage Regulator SupportVoltage Regulator Support
-
936207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1100710005374 12V Power Outlet12V Power Outlet
-
1400278003012 Starter RelayStarter Relay
-
1401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1403232061600 Hex. Nut M6Hex. Nut M6
-
1404207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1405250100198 Panel Nut , M6 X 1.0Panel Nut , M6 X 1.0
-
1500710001721 Turn SignalTurn Signal
-
1501210251650 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
1502234151401 Lock Washer 5 mmLock Washer 5 mm
-
1503704902614 Flasher DecalFlasher Decal
-
1504293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1540710006107 Hazard Lights SwitchHazard Lights Switch
-
1550710003239 Flasher UnitFlasher Unit
-
1580710004791 HornHorn
-
1581250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1582233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1585710006055 Horn BracketHorn Bracket
-
1590710002964 FlasherFlasher
-
1591250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1592234061410 Flat Washer 6 mmFlat Washer 6 mm
-
1594710003168 Dart Tie Rap 200MMDart Tie Rap 200MM
-
1600710001726 Day Light. Includes 1600 to 1600aDay Light. Includes 1600 to 1600a
-
1600a710003269 Cap ProtectorCap Protector
-
1610710002055 License Light. Includes 1610 to 1610aLicense Light. Includes 1610 to 1610a
-
1610a219800128 BulbBulb
-
1612234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1615232061600 Hex. Nut M6Hex. Nut M6
-
1625208653560 Phillips Screw M5 X 35Phillips Screw M5 X 35
-
1630233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
1650710006056 Support ConnectorSupport Connector
-
1651250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
1652250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
1655710006245 Trailer Wiring HarnessTrailer Wiring Harness
-
1660710005658 Yaw Rate SensorYaw Rate Sensor
-
1662207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1664710006501 Yaw Sensor SupportYaw Sensor Support
-
1680710005610 Speed SensorSpeed Sensor
-
1682250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
1683278002910 Clip (double dart)Clip (double dart)
-
1684710001343 ClipClip
-
1690705402088 Sensor SupportSensor Support
-
1691710006452 ABS Harness SupportABS Harness Support
-
1692207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
1693710006554 RH ABS Harness SuppportRH ABS Harness Suppport
-
1694710006555 LH ABS Harness SupportLH ABS Harness Support
-
1695207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
