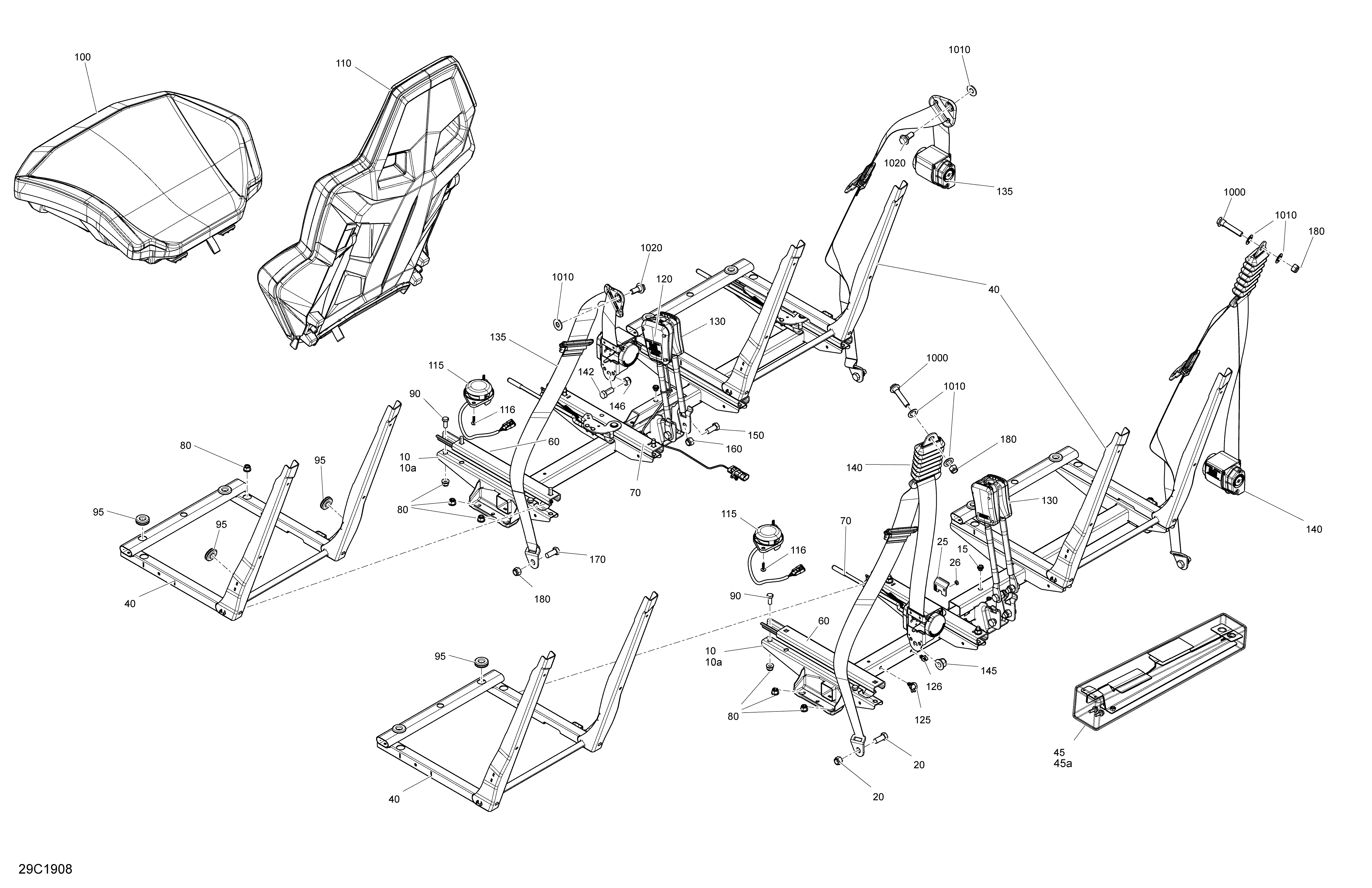

09- Seat - Sport для BRP 002 - Maverick Sport MAX 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
10708002568 Seat Member. Includes 10 to 10aSeat Member. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
25708002640 Seat StopperSeat Stopper
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
40708002423 Seat FrameSeat Frame
-
45708002945 Seat Support Kit. Includes 45 to 45aSeat Support Kit. Includes 45 to 45a
-
45a207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
60708000848 LH RailLH Rail
-
70708002711 RH RailRH Rail
-
80233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
90207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
95517303756 GrommetGrommet
-
100708002863 Cushion AssemblyCushion Assembly
-
110715005851 RH Seat Base KitRH Seat Base Kit
-
110715005849 LH Seat Base KitLH Seat Base Kit
-
115710005543 Passanger Detection SwitchPassanger Detection Switch
-
116250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
120708002331 Driver BuckleDriver Buckle
-
125710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
126710003168 Dart Tie Rap 200MMDart Tie Rap 200MM
-
130708002329 Passenger BucklePassenger Buckle
-
135708002835 Safety BeltSafety Belt
-
140708002712 Safety BeltSafety Belt
-
142250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
145233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
146250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
150250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
160250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
170250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
180250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
1000708002443 Safet Belt ScrewSafet Belt Screw
-
1010708000891 Position WasherPosition Washer
-
1020708002504 Safety Belt screwSafety Belt screw
