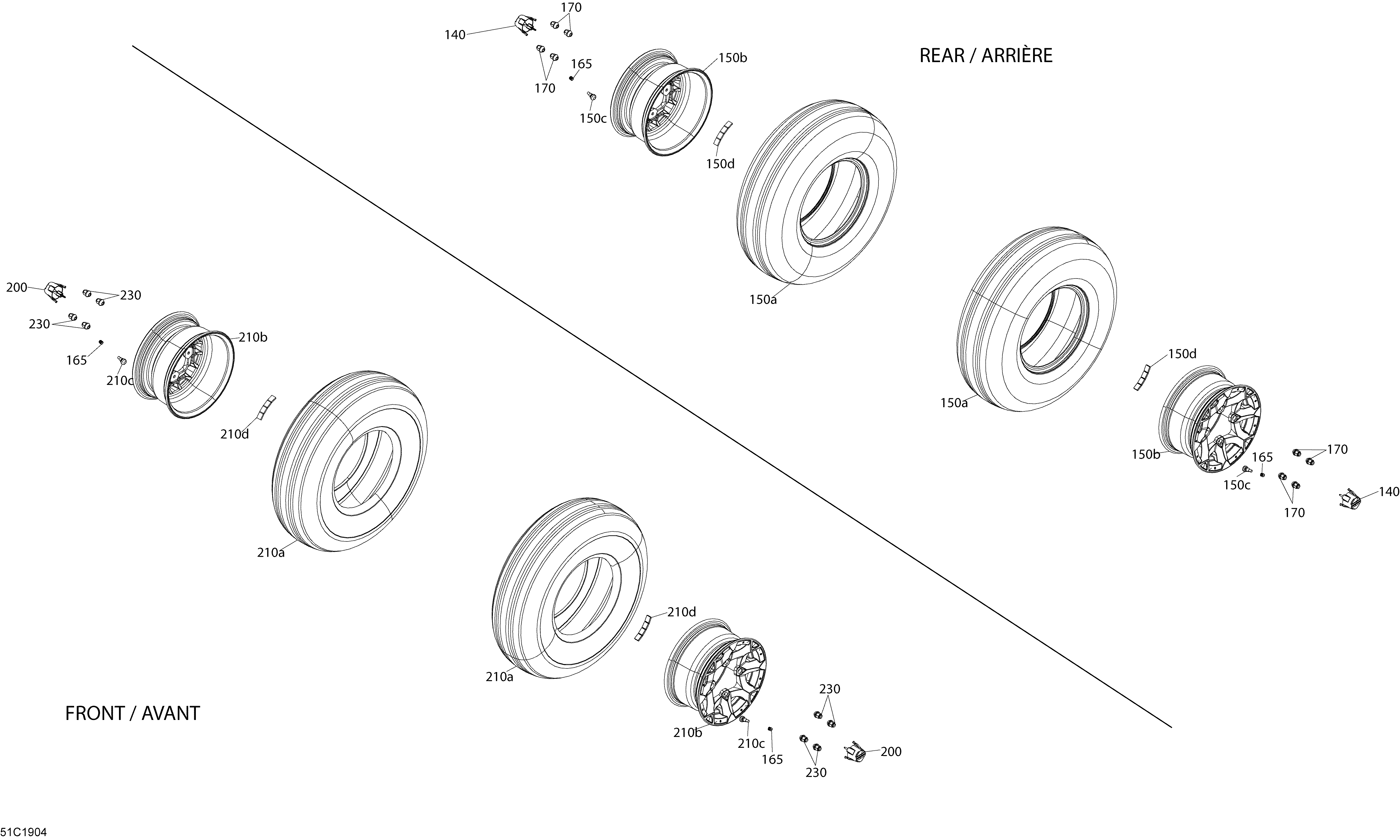

07- Wheels And Tires - DPS для BRP 001 - Maverick Sport 1000R - DPS - T1B Series - 2019
-
№АртикулНазвание
-
165293000110 Valve CapValve Cap
-
200705401541 Wheel CapWheel Cap
-
705402401 Tire Maxxis 28X10X14. Non Max versionTire Maxxis 28X10X14. Non Max version
-
210a705402563 Tire Maxxis 28X10X14. Max VersionTire Maxxis 28X10X14. Max Version
-
210b705402338 RimRim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
140705401541 Wheel CapWheel Cap
-
150a705402401 Tire Maxxis 28X10X14. Non Max versionTire Maxxis 28X10X14. Non Max version
-
150a705402563 Tire Maxxis 28X10X14. Max VersionTire Maxxis 28X10X14. Max Version
-
150b705402338 RimRim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
