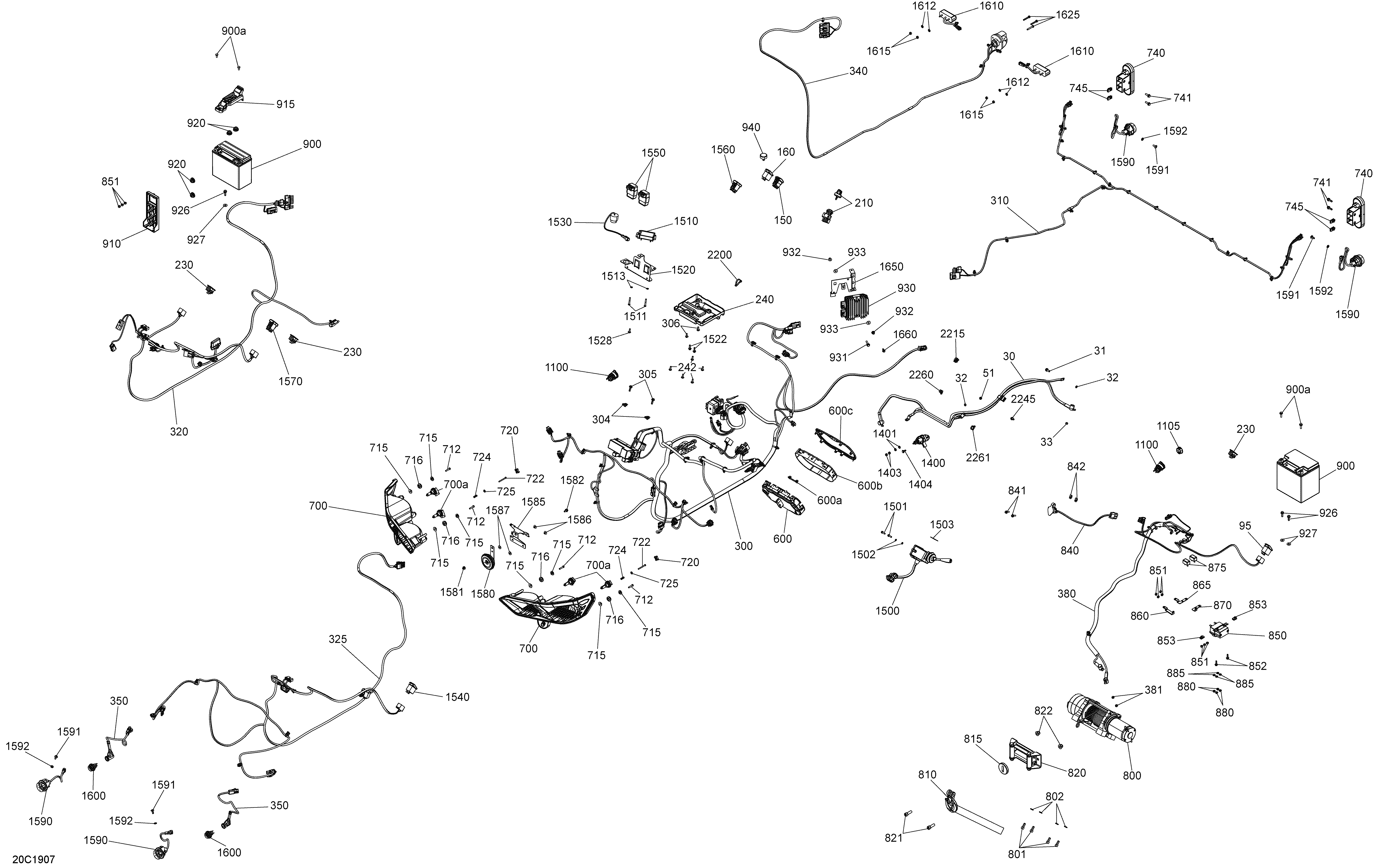

10- Electrical - HD8 - T1B для BRP 002 - Traxter HD8 - T1B Series - 2019

  • №
    Артикул
    Название
  • 30
    710005512 Negative Cable
    Negative Cable
  • 31
    207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
    Hex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
  • 32
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 33
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 51
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 95
    710002052 Switch. Package PRO
    Switch. Package PRO
  • 150
    710005489 Switch
    Switch
  • 160
    710005470 Differential Lock Switch. Package BASE
    Differential Lock Switch. Package BASE
  • 160
    710005470 Differential Lock Switch. Package PRO
    Differential Lock Switch. Package PRO
  • 210
    710004198 Ignition Switch With Keys
    Ignition Switch With Keys
  • 215
    710005739 Key Switch Protector
    Key Switch Protector
  • 230
    710001999 Plug Carling
    Plug Carling
  • 240
    710004741 Housing Support
    Housing Support
  • 242
    250000959 Screw PT Type K-50 X 16
    Screw PT Type K-50 X 16
  • 300
    710006159 Wiring Harness Main
    Wiring Harness Main
  • 301
    710005760 DPS Connector Cap. Package BASE
    DPS Connector Cap. Package BASE
  • 304
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 305
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 306
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
  • 310
    710005544 Rear Harness. Includes 310 to 310v
    Rear Harness. Includes 310 to 310v
  • 321
    710006158 Wiring Harness. Includes 321 to 321bt
    Wiring Harness. Includes 321 to 321bt
  • 325
    710005546 Flasher Harness. Includes 325 to 325a
    Flasher Harness. Includes 325 to 325a
  • 325a
    710005713 Switch's Connector
    Switch's Connector
  • 340
    710006034 Trailer Harness
    Trailer Harness
  • 350
    710005676 Position Harness
    Position Harness
  • 380
    710004465 Winch Harness. Package PRO
    Winch Harness. Package PRO
  • 381
    232561434 Elastic Stop Nut M6. Package PRO
    Elastic Stop Nut M6. Package PRO
  • 600
    710005719 Speedometer. Includes 600 to 600c
    Speedometer. Includes 600 to 600c
  • 600a
    415129349 Lens
    Lens
  • 600b
    415129355 Speedometer Button
    Speedometer Button
  • 600c
    415129348 Gauge Ring
    Gauge Ring
  • 700
    710005729 LH Beam Ass'y. Includes 700 to 700a
    LH Beam Ass'y. Includes 700 to 700a
  • 700
    710005730 RH Beam Ass'y. Includes 710 to 710a
    RH Beam Ass'y. Includes 710 to 710a
  • 700a
    219800149 Halogen Bulb H8 12V 35W
    Halogen Bulb H8 12V 35W
  • 712
    241152540 Hex. Flanged Screw K50 X 2.24 X 25
    Hex. Flanged Screw K50 X 2.24 X 25
  • 715
    710004749 Shoulder Bushing
    Shoulder Bushing
  • 716
    293720053 Grommet
    Grommet
  • 720
    572106600 Handle
    Handle
  • 722
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 724
    517168600 Spring
    Spring
  • 725
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 740
    710004257 Tail Light
    Tail Light
  • 741
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 745
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 800
    710005731 Winch. Package PRO
    Winch. Package PRO
  • 801
    205083044 Socket Head Screw M8 X 30. Package PRO
    Socket Head Screw M8 X 30. Package PRO
  • 802
    234181401 Lock Washer 8 mm. Package PRO
    Lock Washer 8 mm. Package PRO
  • 810
    715003523 Hook and Strap kit. Package PRO
    Hook and Strap kit. Package PRO
  • 815
    710005142 Winch Cable Stopper. Package PRO
    Winch Cable Stopper. Package PRO
  • 820
    710004822 Winch Cable Guide. Package PRO
    Winch Cable Guide. Package PRO
  • 821
    205003044 Socket Screw M10 x 30. Package PRO
    Socket Screw M10 x 30. Package PRO
  • 822
    233201414 Hex. Flanged Elastic Nut M10. Package PRO
    Hex. Flanged Elastic Nut M10. Package PRO
  • 840
    710004823 Winch Remote Connector. Package PRO
    Winch Remote Connector. Package PRO
  • 841
    207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO
    Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO
  • 842
    250000958 Panel Nut M5 X 0.8. Package PRO
    Panel Nut M5 X 0.8. Package PRO
  • 850
    703500947 Solenoid. Package PRO
    Solenoid. Package PRO
  • 851
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 852
    207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO
    Hex. Flanged Screw M5 X 20, Scotch Grip. Package PRO
  • 853
    250000958 Panel Nut M5 X 0.8. Package PRO
    Panel Nut M5 X 0.8. Package PRO
  • 860
    710004772 Power Bar. Package PRO
    Power Bar. Package PRO
  • 865
    710004872 Power Bar. Package PRO
    Power Bar. Package PRO
  • 870
    710004873 Power Bar. Package PRO
    Power Bar. Package PRO
  • 875
    703500948 Breaker 50 Amp. Package PRO
    Breaker 50 Amp. Package PRO
  • 880
    250100071 Hex. Flanged Nut M5. Package PRO
    Hex. Flanged Nut M5. Package PRO
  • 885
    234161601 Lock Washer Helical M6. Package PRO
    Lock Washer Helical M6. Package PRO
  • 900
    410301203 Battery Ass'y, 18 Amperes. Package BASE. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Package BASE. Includes 900 to 900a
  • 900
    515176151 Battery. Package PRO. Includes 900 to 900a
    Battery. Package PRO. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit. Package BASE
    Battery Bolt Kit. Package BASE
  • 900a
    515176081 Battery Bolt Kit. Package PRO
    Battery Bolt Kit. Package PRO
  • 910
    710004788 Fixation Plate
    Fixation Plate
  • 915
    710004789 Fixation Plate
    Fixation Plate
  • 920
    705003666 Rubber Grommet
    Rubber Grommet
  • 926
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 927
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 930
    710005842 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 931
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 932
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 933
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 940
    708001827 Rubber Stopper
    Rubber Stopper
  • 1100
    710001248 Outlet DC
    Outlet DC
  • 1105
    710004993 Cap. Package BASE
    Cap. Package BASE
  • 1400
    278003012 Starter Relay
    Starter Relay
  • 1401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 1403
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 1404
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
  • 1500
    710001721 Turn Signal
    Turn Signal
  • 1501
    210251650 Hex. Forming Screw M5 X 16
    Hex. Forming Screw M5 X 16
  • 1502
    234151401 Lock Washer 5 mm
    Lock Washer 5 mm
  • 1503
    704902614 Flasher Decal
    Flasher Decal
  • 1510
    710005436 SKM Module
    SKM Module
  • 1511
    207053544 Hex. Screw M5 X 35
    Hex. Screw M5 X 35
  • 1513
    234051410 Flat Washer M5
    Flat Washer M5
  • 1520
    710005475 SKM Holder
    SKM Holder
  • 1522
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 1528
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
  • 1530
    204470913 Buzzer Ass'y
    Buzzer Ass'y
  • 1540
    710002076 Switch
    Switch
  • 1550
    710003239 Flasher Unit
    Flasher Unit
  • 1560
    710005478 Brake Fluid Indicator
    Brake Fluid Indicator
  • 1570
    710005479 Trailer Flasher Indicator
    Trailer Flasher Indicator
  • 1580
    710004791 Horn
    Horn
  • 1581
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
  • 1582
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 1585
    710005495 Horn Bracket
    Horn Bracket
  • 1586
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1587
    250200025 Washer M5
    Washer M5
  • 1590
    710002964 Flasher
    Flasher
  • 1591
    250000721 Torx Screw
    Torx Screw
  • 1592
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 1600
    710001726 Day Light
    Day Light
  • 1610
    710002055 License Light
    License Light
  • 1612
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 1615
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 1625
    208653560 Phillips Screw M5 X 35
    Phillips Screw M5 X 35
  • 1650
    710005620 Housing Holder
    Housing Holder
  • 1660
    207651646 Hex. Flanged Screw M5 X 16
    Hex. Flanged Screw M5 X 16
  • 2245
    210261650 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
