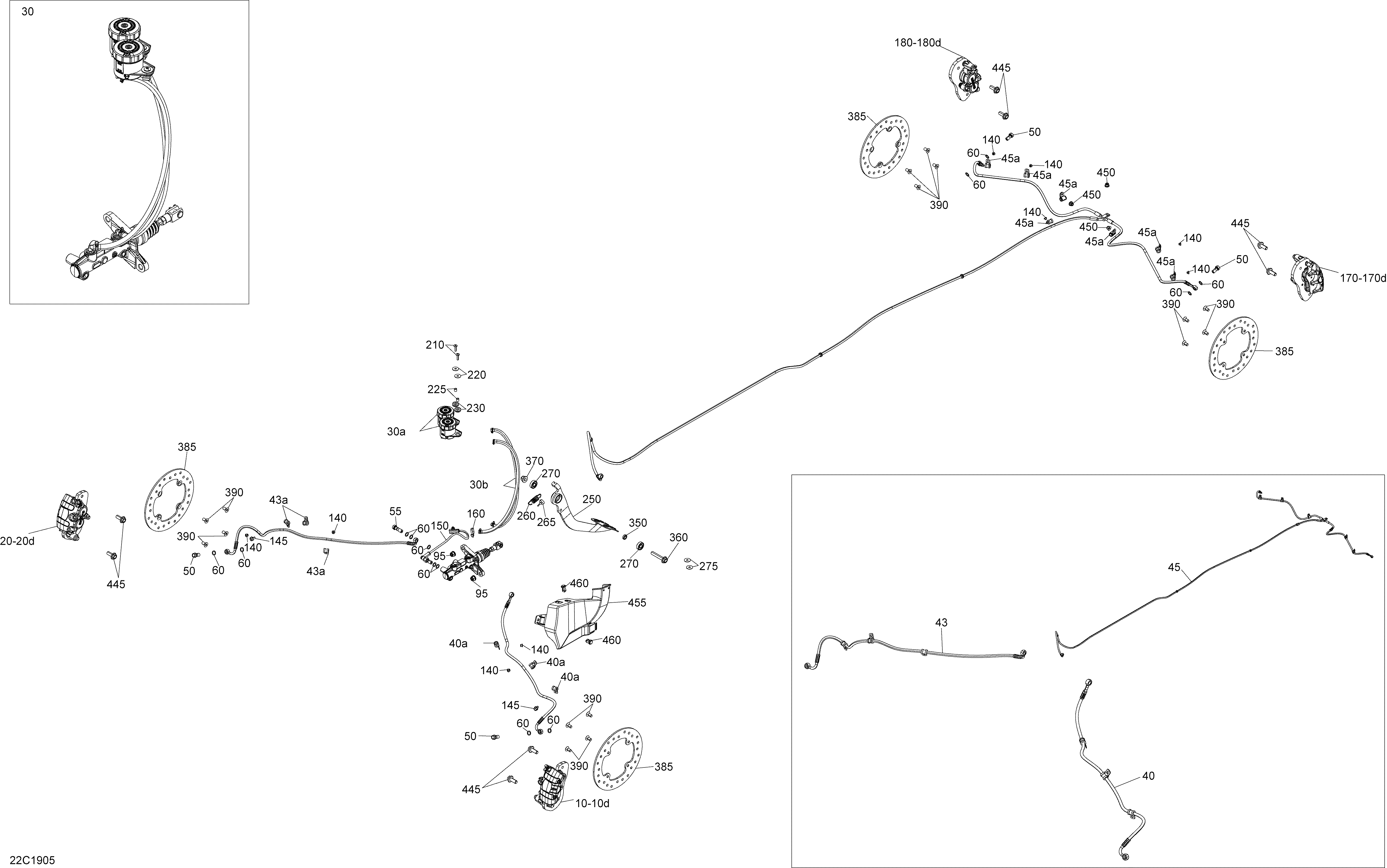

06- Brakes для BRP 001 - Maverick Sport 1000 - BASE - International - 2019

  • №
    Артикул
    Название
  • 10
    705601462 LH Front Caliper. Includes 10 to 10d
    LH Front Caliper. Includes 10 to 10d
  • 10a
    715900379 LH Brake Pads
    LH Brake Pads
  • 10b
    705601017 Bleeding Screw
    Bleeding Screw
  • 10c
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 10d
    715900384 Pin Kit
    Pin Kit
  • 20
    705601463 RH Front Caliper. Includes 20 to 20d
    RH Front Caliper. Includes 20 to 20d
  • 20a
    715900380 RH Brake Pads
    RH Brake Pads
  • 20b
    705601017 Bleeding Screw
    Bleeding Screw
  • 20c
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 20d
    715900384 Pin Kit
    Pin Kit
  • 30
    705601549 Master Cylinder. Includes 30 to 30b
    Master Cylinder. Includes 30 to 30b
  • 30a
    705601020 Oil Tank
    Oil Tank
  • 30b
    705601019 Housing Oil Hose
    Housing Oil Hose
  • 40
    705601639 LH Front Hose Caliper. Includes 40 to 40a
    LH Front Hose Caliper. Includes 40 to 40a
  • 40a
    293650256 Clamp
    Clamp
  • 43
    705601640 RH Front Hose Caliper. Includes 43 to 43a
    RH Front Hose Caliper. Includes 43 to 43a
  • 43a
    293650256 Clamp
    Clamp
  • 45
    705601641 Rear Brake Hose. Includes 45 to 45a
    Rear Brake Hose. Includes 45 to 45a
  • 45a
    715900250 Hose Clip
    Hose Clip
  • 50
    705600609 Banjo Bolt
    Banjo Bolt
  • 55
    705601723 Double Banjo Bolt
    Double Banjo Bolt
  • 60
    705601628 Copper Washer
    Copper Washer
  • 95
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 140
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 145
    210261040 Hex. Flanged Screw M6 X 10
    Hex. Flanged Screw M6 X 10
  • 150
    705601250 Brake Switch
    Brake Switch
  • 160
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 170
    705601466 LH Rear Caliper. Includes 170 to 170d
    LH Rear Caliper. Includes 170 to 170d
  • 170a
    715900386 LH Brake Pads
    LH Brake Pads
  • 170b
    705601017 Bleeding Screw
    Bleeding Screw
  • 170c
    715900384 Pin Kit
    Pin Kit
  • 170d
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 180
    705601467 RH Rear Caliper. Includes 180 to 180d
    RH Rear Caliper. Includes 180 to 180d
  • 180a
    715900387 RH Brake Pads
    RH Brake Pads
  • 180b
    705601017 Bleeding Screw
    Bleeding Screw
  • 180c
    715900384 Pin Kit
    Pin Kit
  • 180d
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 210
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 220
    250200040 Flat Washer
    Flat Washer
  • 225
    293900112 Bushing
    Bushing
  • 230
    414036300 Grommet
    Grommet
  • 250
    705601537 Brake Pedal
    Brake Pedal
  • 260
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 265
    708000759 Rubber Stopper
    Rubber Stopper
  • 270
    705600458 Bearing
    Bearing
  • 275
    250200183 Nylon Flat Washer M8
    Nylon Flat Washer M8
  • 350
    705601622 Bushing
    Bushing
  • 360
    207605546 Hex. Flanged Screw M10 X 55
    Hex. Flanged Screw M10 X 55
  • 370
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 385
    705601511 Brake Disc
    Brake Disc
  • 390
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 400
    705601750 Support Hose
    Support Hose
  • 405
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 445
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 450
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 455
    705601626 Master Cylinder Deflector
    Master Cylinder Deflector
  • 460
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 465
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
