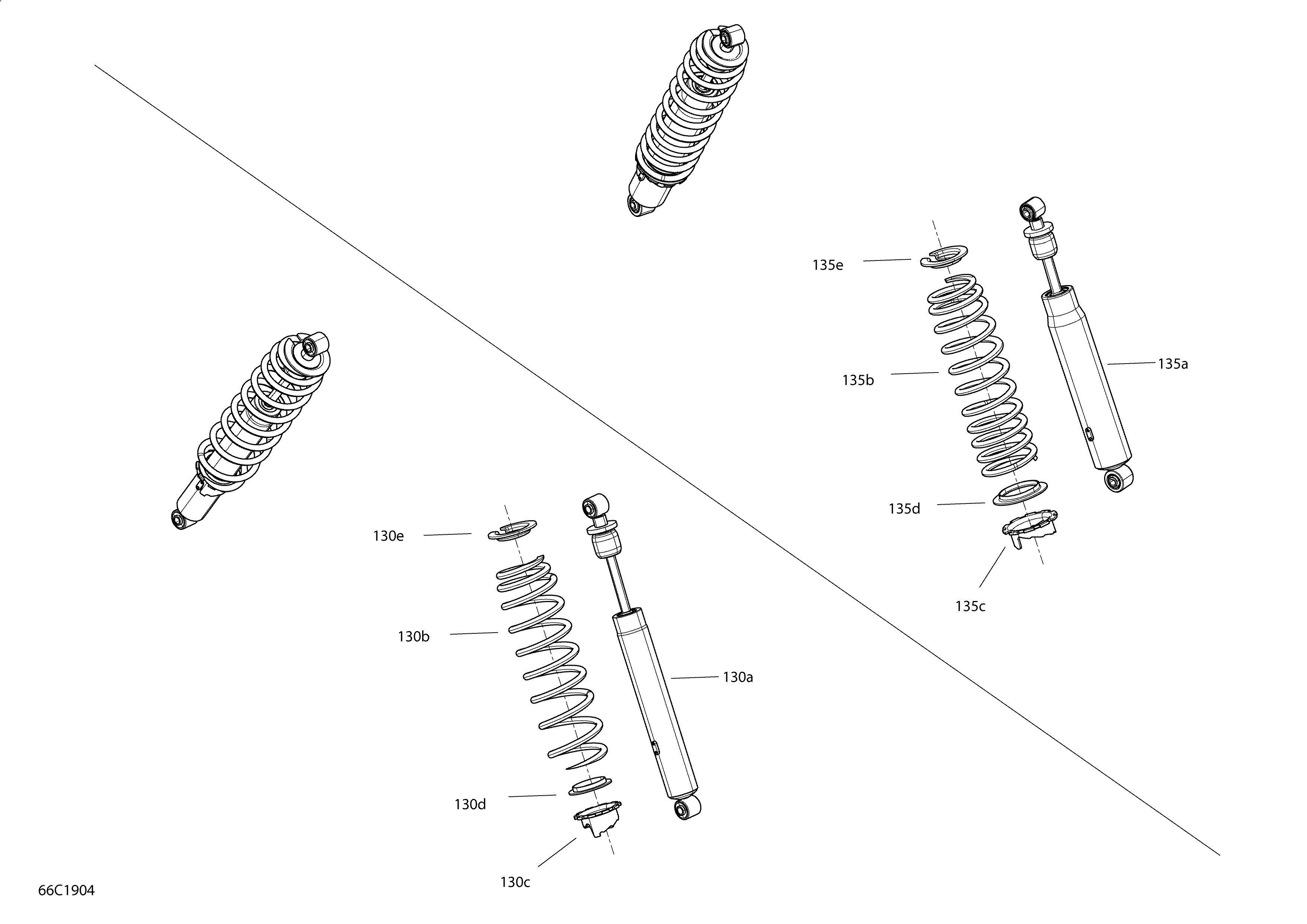

07- Shocks - XMR для BRP 002 - Traxter HD10 - International - 2019
‹-+›
-
№АртикулНазвание
-
130a706203374 Front Absorber Shock OilFront Absorber Shock Oil
-
130b706203448 Sunburst Yellow, Front Spring. Sunburst YellowSunburst Yellow, Front Spring. Sunburst Yellow
-
130b706203450 Deep Black, Spring. CamoDeep Black, Spring. Camo
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706001894 Spring CupSpring Cup
-
135a706002853 Rear ShockRear Shock
-
135b706003391 Sunburst Yellow, Rear Compression Spring. Sunburst YellowSunburst Yellow, Rear Compression Spring. Sunburst Yellow
-
135b706003197 Deep Black, Rear Compression Spring. CamoDeep Black, Rear Compression Spring. Camo
-
135c706000910 Adjustable RingAdjustable Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
