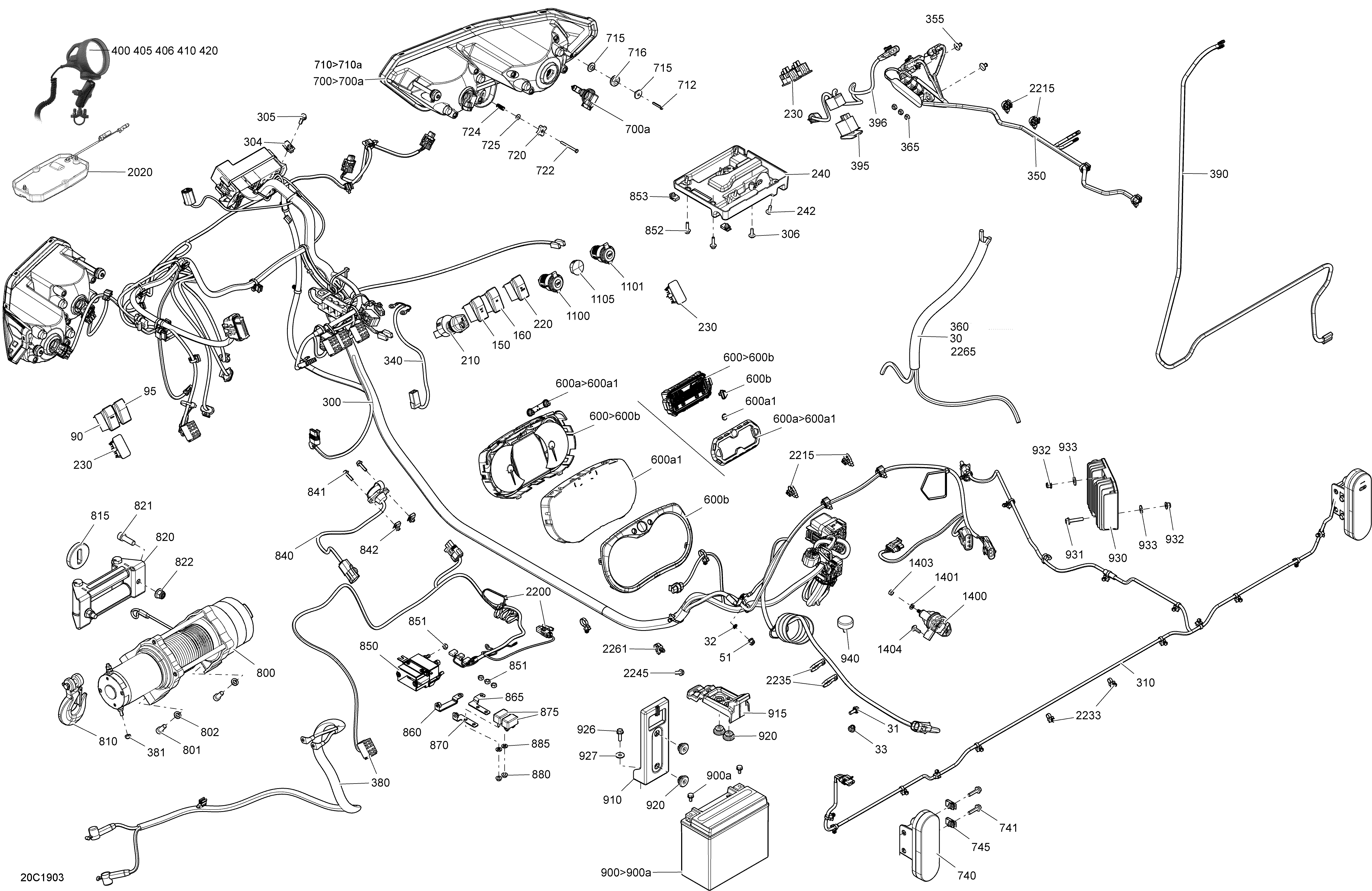

10- Electrical - HD8 для BRP 001 - Traxter HD8 - International - 2019

  • №
    Артикул
    Название
  • 30
    710005512 Negative Cable
    Negative Cable
  • 31
    207501644 Hex. Flanged Screw M10 X 16, Scotch Grip
    Hex. Flanged Screw M10 X 16, Scotch Grip
  • 32
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 33
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 51
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 90
    710004492 Light Switch
    Light Switch
  • 95
    710002052 Switch. Packages CAB & XT
    Switch. Packages CAB & XT
  • 150
    710004814 2 X 4 Switch
    2 X 4 Switch
  • 160
    710005470 Differential Lock Switch
    Differential Lock Switch
  • 210
    710004198 Ignition Switch With Keys
    Ignition Switch With Keys
  • 215
    710005739 Key Switch Protector
    Key Switch Protector
  • 220
    710004532 Driving Mode Switch. Packages CAB & XT
    Driving Mode Switch. Packages CAB & XT
  • 230
    710001999 Plug Carling
    Plug Carling
  • 240
    710004741 Housing Support
    Housing Support
  • 242
    250000959 Screw PT Type K-50 X 16
    Screw PT Type K-50 X 16
  • 300
    710006159 Wiring Harness Main
    Wiring Harness Main
  • 301
    710005760 DPS Connector Cap. Package BASE
    DPS Connector Cap. Package BASE
  • 304
    250100198 Panel Nut , M6 X 1.0
    Panel Nut , M6 X 1.0
  • 305
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 306
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
  • 310
    710004458 Rear Harness
    Rear Harness
  • 340
    710004461 Heater Harness. Package CAB
    Heater Harness. Package CAB
  • 350
    710004462 Window/Wiper Harness. Packages CAB & Pro International
    Window/Wiper Harness. Packages CAB & Pro International
  • 360
    715003094 ROOF HARNESS. Package CAB
    ROOF HARNESS. Package CAB
  • 360
    710005027 Roof Harness. Package Pro International
    Roof Harness. Package Pro International
  • 365
    232561200 Elastic Stop Nut M6, Brass. Packages CAB & Pro International
    Elastic Stop Nut M6, Brass. Packages CAB & Pro International
  • 380
    710004465 Winch Harness. Packages CAB & XT
    Winch Harness. Packages CAB & XT
  • 381
    232561434 Elastic Stop Nut M6. Packages CAB & XT
    Elastic Stop Nut M6. Packages CAB & XT
  • 390
    710004466 Wiper Harness. Packages CAB & Pro International
    Wiper Harness. Packages CAB & Pro International
  • 395
    710004941 Wiper Switch. Packages CAB & Pro International
    Wiper Switch. Packages CAB & Pro International
  • 396
    710004942 Wiper Harness. Packages CAB & Pro International
    Wiper Harness. Packages CAB & Pro International
  • 600
    710005553 Speedometer. Packages BASE, DPS & Pro International. Includes 600 to 600c
    Speedometer. Packages BASE, DPS & Pro International. Includes 600 to 600c
  • 600a
    710001183 Trim Ring Ass'y. Packages BASE, DPS & Pro International. Includes 600a to 600a1
    Trim Ring Ass'y. Packages BASE, DPS & Pro International. Includes 600a to 600a1
  • 600a1
    704904615 BRP Logo, 13 mm. Packages BASE, DPS & Pro International
    BRP Logo, 13 mm. Packages BASE, DPS & Pro International
  • 600b
    715900265 Button. Packages BASE, DPS & Pro International
    Button. Packages BASE, DPS & Pro International
  • 600
    710005719 Speedometer. Packages CAB & XT. Includes 600 to 600c
    Speedometer. Packages CAB & XT. Includes 600 to 600c
  • 600a
    415129349 Lens. Packages CAB & XT
    Lens. Packages CAB & XT
  • 600b
    415129355 Speedometer Button. Packages CAB & XT
    Speedometer Button. Packages CAB & XT
  • 600c
    415129348 Gauge Ring. Packages CAB & XT
    Gauge Ring. Packages CAB & XT
  • 700
    710005729 LH Beam Ass'y. Includes 700 to 700a
    LH Beam Ass'y. Includes 700 to 700a
  • 700a
    219800149 Halogen Bulb H8 12V 35W
    Halogen Bulb H8 12V 35W
  • 710
    710005730 RH Beam Ass'y. Includes 710 to 710a
    RH Beam Ass'y. Includes 710 to 710a
  • 710a
    219800149 Halogen Bulb H8 12V 35W
    Halogen Bulb H8 12V 35W
  • 712
    241152540 Hex. Flanged Screw K50 X 2.24 X 25
    Hex. Flanged Screw K50 X 2.24 X 25
  • 715
    710004749 Shoulder Bushing
    Shoulder Bushing
  • 716
    293720053 Grommet
    Grommet
  • 720
    572106600 Handle
    Handle
  • 722
    250000718 Hex. Screw K40 X 45
    Hex. Screw K40 X 45
  • 724
    517168600 Spring
    Spring
  • 725
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 740
    710004257 Tail Light. Packages CAB & XT
    Tail Light. Packages CAB & XT
  • 740
    710004497 Tail Light. Packages BASE, DPS & Pro International
    Tail Light. Packages BASE, DPS & Pro International
  • 741
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 745
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 800
    710005731 Winch. Packages CAB & XT
    Winch. Packages CAB & XT
  • 801
    205083044 Socket Head Screw M8 X 30. Packages CAB & XT
    Socket Head Screw M8 X 30. Packages CAB & XT
  • 802
    234181401 Lock Washer 8 mm. Packages CAB & XT
    Lock Washer 8 mm. Packages CAB & XT
  • 810
    715003523 Hook and Strap kit. Packages CAB & XT
    Hook and Strap kit. Packages CAB & XT
  • 811
    715003523 Hook and Strap kit. Packages CAB & XT
    Hook and Strap kit. Packages CAB & XT
  • 812
    715003523 Hook and Strap kit. Packages CAB & XT
    Hook and Strap kit. Packages CAB & XT
  • 815
    710005142 Winch Cable Stopper. Packages CAB & XT
    Winch Cable Stopper. Packages CAB & XT
  • 820
    710004822 Winch Cable Guide. Packages CAB & XT
    Winch Cable Guide. Packages CAB & XT
  • 821
    205003044 Socket Screw M10 x 30. Packages CAB & XT
    Socket Screw M10 x 30. Packages CAB & XT
  • 822
    233201414 Hex. Flanged Elastic Nut M10. Packages CAB & XT
    Hex. Flanged Elastic Nut M10. Packages CAB & XT
  • 840
    710004823 Winch Remote Connector. Packages CAB & XT
    Winch Remote Connector. Packages CAB & XT
  • 841
    207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Packages CAB & XT
    Hex. Flanged Screw M5 X 20, Scotch Grip. Packages CAB & XT
  • 842
    250000958 Panel Nut M5 X 0.8. Packages CAB & XT
    Panel Nut M5 X 0.8. Packages CAB & XT
  • 850
    703500947 Solenoid. Packages CAB & XT
    Solenoid. Packages CAB & XT
  • 851
    232561200 Elastic Stop Nut M6, Brass
    Elastic Stop Nut M6, Brass
  • 852
    207552044 Hex. Flanged Screw M5 X 20, Scotch Grip. Packages CAB & XT
    Hex. Flanged Screw M5 X 20, Scotch Grip. Packages CAB & XT
  • 853
    250000958 Panel Nut M5 X 0.8. Packages CAB & XT
    Panel Nut M5 X 0.8. Packages CAB & XT
  • 860
    710004772 Power Bar. Packages CAB & XT
    Power Bar. Packages CAB & XT
  • 865
    710004872 Power Bar. Packages CAB & XT
    Power Bar. Packages CAB & XT
  • 870
    710004873 Power Bar. Packages CAB & XT
    Power Bar. Packages CAB & XT
  • 875
    703500948 Breaker 50 Amp. Packages CAB & XT
    Breaker 50 Amp. Packages CAB & XT
  • 880
    250100071 Hex. Flanged Nut M5. Packages CAB & XT
    Hex. Flanged Nut M5. Packages CAB & XT
  • 885
    234161601 Lock Washer Helical M6. Packages CAB & XT
    Lock Washer Helical M6. Packages CAB & XT
  • 900
    410301203 Battery Ass'y, 18 Amperes. Packages BASE, DPS & Pro International. Includes 900 to 900a
    Battery Ass'y, 18 Amperes. Packages BASE, DPS & Pro International. Includes 900 to 900a
  • 900a
    250000282 Battery Bolt Kit. Packages BASE, DPS & Pro International
    Battery Bolt Kit. Packages BASE, DPS & Pro International
  • 900
    515176151 Battery. Packages CAB & XT. Includes 900 to 900a
    Battery. Packages CAB & XT. Includes 900 to 900a
  • 900a
    515176081 Battery Bolt Kit. Packages CAB & XT
    Battery Bolt Kit. Packages CAB & XT
  • 910
    710004788 Fixation Plate
    Fixation Plate
  • 915
    710004789 Fixation Plate
    Fixation Plate
  • 920
    705003666 Rubber Grommet
    Rubber Grommet
  • 926
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 927
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 930
    710005842 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 931
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 932
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 933
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 940
    708001827 Rubber Stopper
    Rubber Stopper
  • 1100
    710001248 Outlet DC
    Outlet DC
  • 1105
    710004993 Cap. Packages BASE & DPS
    Cap. Packages BASE & DPS
  • 1400
    278003012 Starter Relay
    Starter Relay
  • 1401
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 1403
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 1404
    243141630 Hex. Plastic Screw M4.8 X 16
    Hex. Plastic Screw M4.8 X 16
  • 2020
    715002455 Dome Light. Package CAB
    Dome Light. Package CAB
  • 2025
    241142560 Hex. Flanged Screw K40 X 25. Package CAB
    Hex. Flanged Screw K40 X 25. Package CAB
  • 2245
    210261650 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
