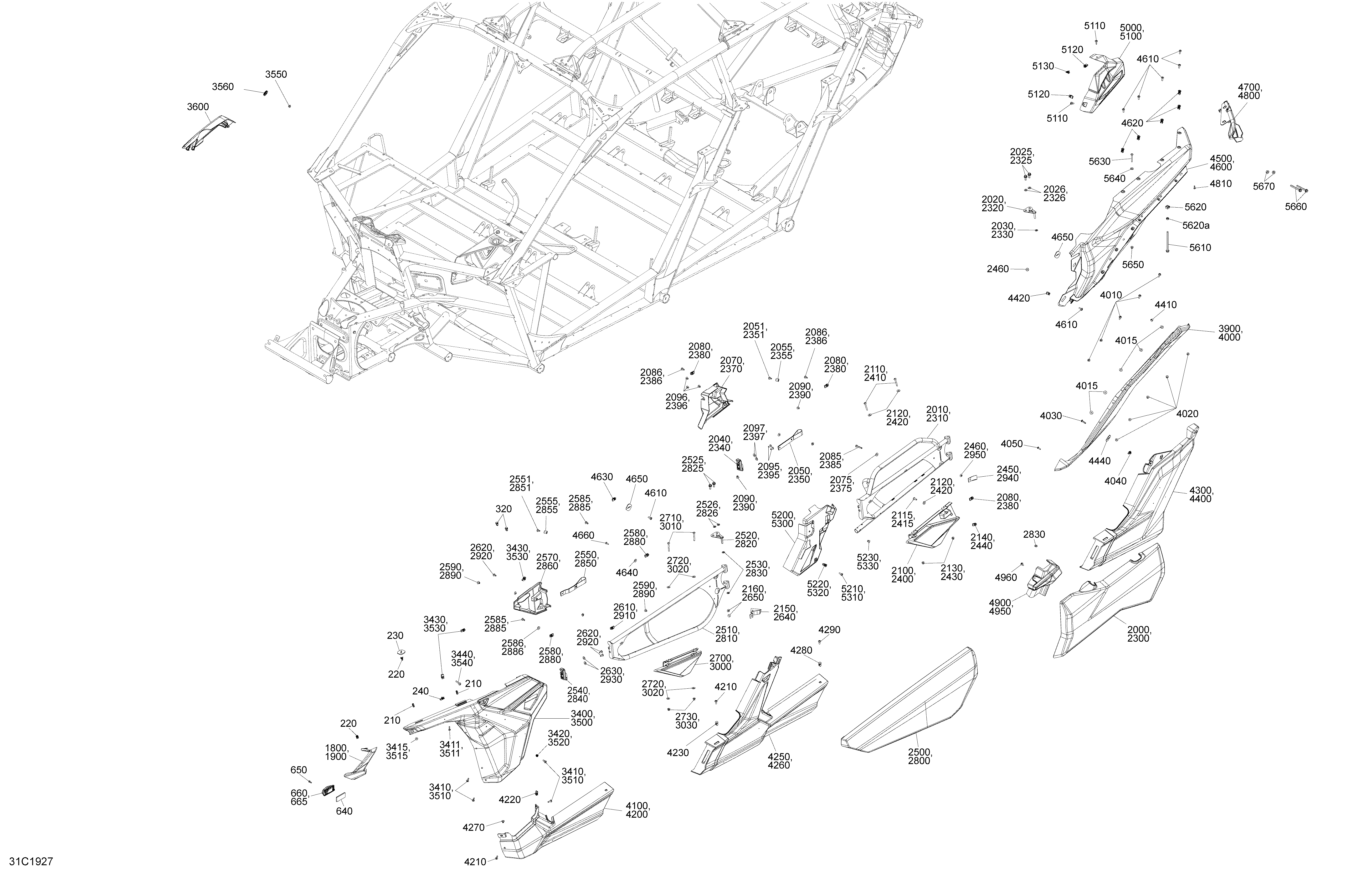

09- Body - Side Section - Hyper Silver для BRP 006 - Maverick MAX Turbo - North America - 2019
-
№АртикулНазвание
-
210705010721 ClipClip
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
320293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
640520000271 Amber, ReflectorAmber, Reflector
-
650250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
660705011806 LH Reflector SupportLH Reflector Support
-
665705011814 RH Reflector SupportRH Reflector Support
-
1800705010628 LH Light CoverLH Light Cover
-
1900705010629 RH Light CoverRH Light Cover
-
2000705012543 Silver, LH Door PanelSilver, LH Door Panel
-
2010705013366 Hyper Silver, LH Rear Door. Package XRSHyper Silver, LH Rear Door. Package XRS
-
2010705013426 Deep Black, LH Rear Door. Package STDDeep Black, LH Rear Door. Package STD
-
2020705011187 Door SupportDoor Support
-
2025207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2026234081430 Flat Washer M8Flat Washer M8
-
2030234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2040705012183 LH LatchLH Latch
-
2050293850135 BeltBelt
-
2051293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2055293900104 BushingBushing
-
2070705011356 LH Latch CoverLH Latch Cover
-
2075234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2080250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2085250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2086250000721 Torx ScrewTorx Screw
-
2090293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2095250000721 Torx ScrewTorx Screw
-
2096293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2097224061121 Flat WasherFlat Washer
-
2100705011358 Left Lower Door CoverLeft Lower Door Cover
-
2110250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2115250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2120234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2130233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2150293850129 Door BeltDoor Belt
-
2160293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2300705012544 Silver, RH Door PanelSilver, RH Door Panel
-
2310705013367 Hyper Silver, RH Rear Door. Package XRSHyper Silver, RH Rear Door. Package XRS
-
2310705013427 Deep Black, RH Rear Door. Package STDDeep Black, RH Rear Door. Package STD
-
2320705011187 Door SupportDoor Support
-
2325207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2326234081430 Flat Washer M8Flat Washer M8
-
2330234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2340705012184 RH LatchRH Latch
-
2350293850135 BeltBelt
-
2351293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2355293900104 BushingBushing
-
2370705011357 RH Latch CoverRH Latch Cover
-
2375234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2380250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2385250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
2386250000721 Torx ScrewTorx Screw
-
2390293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2395250000721 Torx ScrewTorx Screw
-
2396293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2397224061121 Flat WasherFlat Washer
-
2400705011359 Right Lower Door CoverRight Lower Door Cover
-
2410250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2415250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2430233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2450293850129 Door BeltDoor Belt
-
2460293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2500705012466 Silver, LH Door PanelSilver, LH Door Panel
-
2510705012564 Black, LH Door Frame. Package STDBlack, LH Door Frame. Package STD
-
2510705013358 Hyper Silver, LH Front Door. Package XRSHyper Silver, LH Front Door. Package XRS
-
2520705011187 Door SupportDoor Support
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705012183 LH LatchLH Latch
-
2550293850135 BeltBelt
-
2551293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2555293900104 BushingBushing
-
2570705013535 LH Latch CoverLH Latch Cover
-
2580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2585250000721 Torx ScrewTorx Screw
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2590293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2610250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2630224061121 Flat WasherFlat Washer
-
2640293850129 Door BeltDoor Belt
-
2650293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2700705010732 LH Lower Door PanelLH Lower Door Panel
-
2710250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2800705012467 Silver, RH Door PanelSilver, RH Door Panel
-
2810705012565 Black, RH Door Frame. Package STDBlack, RH Door Frame. Package STD
-
2810705013359 Hyper Silver, RH Front Door. Package XRSHyper Silver, RH Front Door. Package XRS
-
2820705011187 Door SupportDoor Support
-
2825207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2826234081430 Flat Washer M8Flat Washer M8
-
2830234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2840705012184 RH LatchRH Latch
-
2850293850135 BeltBelt
-
2851293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2855293900104 BushingBushing
-
2870705013536 RH Latch CoverRH Latch Cover
-
2880250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2885250000721 Torx ScrewTorx Screw
-
2886234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2890293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
2910250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2930224061121 Flat WasherFlat Washer
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000705010733 RH Lower Door PanelRH Lower Door Panel
-
3010250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
3020234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3030233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3400715004064 LH Front Lateral Panel KitLH Front Lateral Panel Kit
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3412250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3430250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3500715004074 RH Front Lateral PanelRH Front Lateral Panel
-
3510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3515233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3540250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3550233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
-
3900705009511 LH Rear Fender DeflectorLH Rear Fender Deflector
-
4000705009512 RH Rear Fender DeflectorRH Rear Fender Deflector
-
4010250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4015234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4020233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
4030250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4200705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4230705010872 InsertInsert
-
4250705011368 LH Rear Central Lateral PanelLH Rear Central Lateral Panel
-
4260705011369 RH Rear Central Lateral PanelRH Rear Central Lateral Panel
-
4270293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4280705010872 InsertInsert
-
4290250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4400705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4500705012468 Silver, LH Rear FenderSilver, LH Rear Fender
-
4600705012469 Silver, RH Rear FenderSilver, RH Rear Fender
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4620705010872 InsertInsert
-
4630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4650705003841 Support PlateSupport Plate
-
4660250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4700705010686 LH Rear Lateral CoverLH Rear Lateral Cover
-
4800705010687 RH Rear Lateral CoverRH Rear Lateral Cover
-
4810250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4900705011579 LH Central Cage TrimLH Central Cage Trim
-
4950705011580 RH Central Cage TrimRH Central Cage Trim
-
4960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5000705010335 LH Rear Cage TrimLH Rear Cage Trim
-
5100705010336 RH Rear Cage TrimRH Rear Cage Trim
-
5110250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5130293650268 ClipClip
-
5200705012601 Silver LH Central Door TrimSilver LH Central Door Trim
-
5210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5220705010872 InsertInsert
-
5230293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
5300705012602 Silver RH Central Door TrimSilver RH Central Door Trim
-
5310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5320705010872 InsertInsert
-
5330293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
5610230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5620269501943 Elastic Nut Housing M8. Includes 5620 to 5620aElastic Nut Housing M8. Includes 5620 to 5620a
-
5620a232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
5630250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5640234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5650233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
5660207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5670233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
Все узлы модели:
- 00- Model Numbers
- 01- Cooling
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder Head
- 01- Engine - Turbo
- 01- Engine Lubrication
- 01- Exhaust - Turbo
- 01- Gear Box And Components Maverick
- 01- Turbocharger
- 01- Valve Cover
- 01- Valve Train
- 02- Air Intake - Turbo
- 02- Air Intake Manifold And Throttle Body
- 02- Fuel - EVAP
- 02- Fuel - No EVAP
- 02- Oil Pump
- 03- Magneto And Electric Starter
- 05- Gear Box - 1
- 05- Gear Box - 2
- 05- Transmission
- 06- Brakes
- 07- Front Drive - Differential Parts - Except Package STD
- 07- Front Drive - Main Parts - Except Package STD
- 07- Front Suspension - Turbo
- 07- Shocks - STD
- 07- Steering - Turbo
- 07- Wheels And Tires - Turbo - STD
- 08- Rear Drive - Turbo
- 08- Rear Suspension - Package STD
- 09- Body - Floor Section - All Colors
- 09- Body - Front Section - Hyper Silver
- 09- Body - Front Section - White
- 09- Body - Rear Section - All Colors
- • 09- Body - Side Section - Hyper Silver
- 09- Body - Side Section - White
- 09- Cab Interior Maverick MAX - North America - Front Upper Section
- 09- Cab Interior Maverick MAX - North America - Lower Section
- 09- Cab Interior Maverick MAX - North America - Rear Upper Section
- 09- Decals - Turbo - Package STD - North America
- 09- Frame
- 09- Seat - Turbo
- 09- Storage Tray
- 10- Electrical - Engine Harness And Electronic Module
- 10- Electrical Turbo
- 10- Main Harness 710006254
