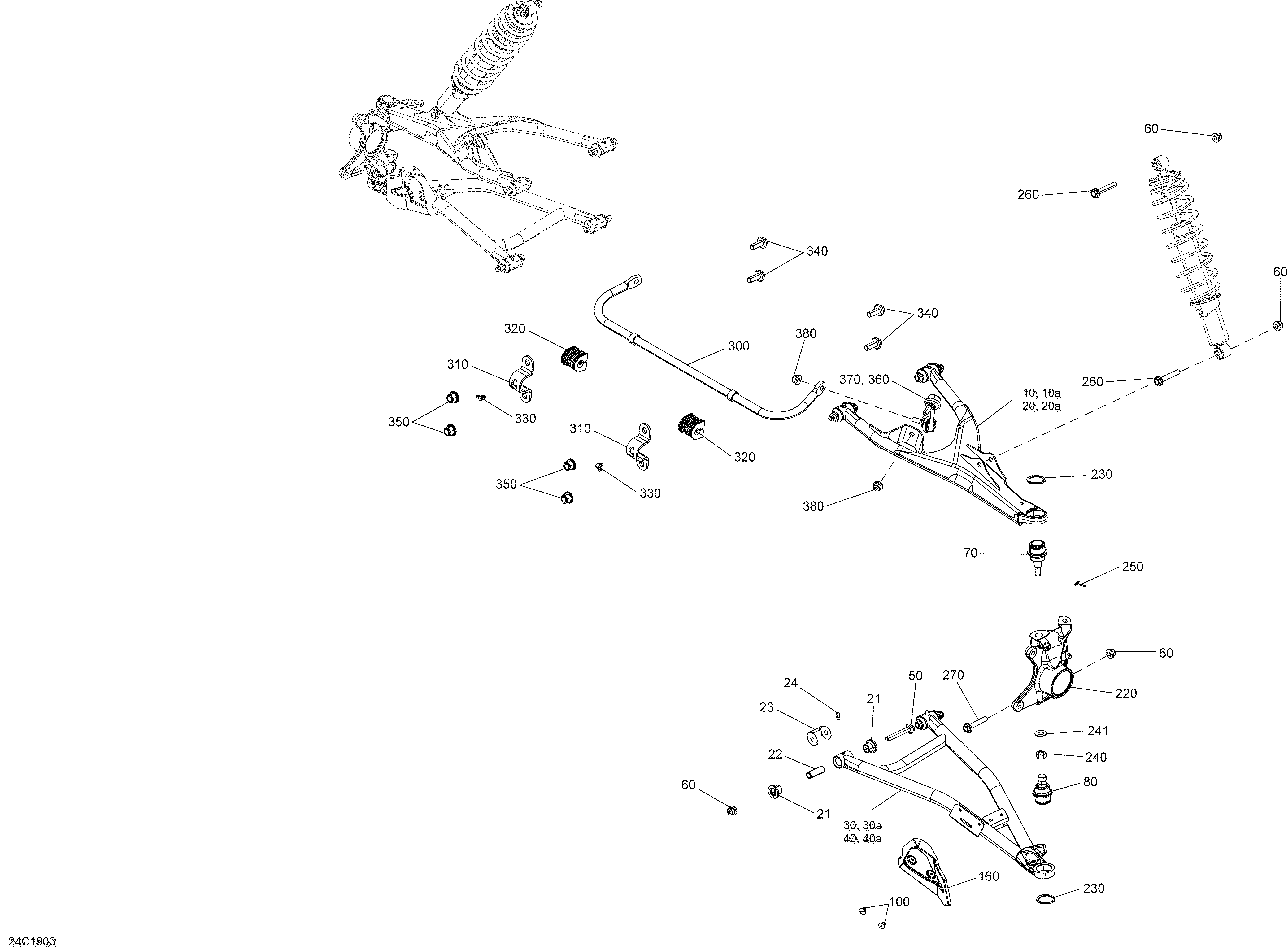

07- Front Suspension - HD8 - XT CAB для BRP 004 - Defender MAX HD8 - North America - 2019
-
№АртикулНазвание
-
10706202977 Front Suspension Upper Arm - Left Hand. Package CABFront Suspension Upper Arm - Left Hand. Package CAB
-
20706202978 RH Front Suspension Upper Arm. Package CABRH Front Suspension Upper Arm. Package CAB
-
21703500875 Bushing KitBushing Kit
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
40706202979 LH Front Suspension Lower Arm. Package CABLH Front Suspension Lower Arm. Package CAB
-
40706202980 RH Front Suspension Lower Arm. Package CABRH Front Suspension Lower Arm. Package CAB
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201436 Flanged Elastic Nut M10. Package CABFlanged Elastic Nut M10. Package CAB
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706203096 LH Front Machined KnuckleLH Front Machined Knuckle
-
220706203097 RH Front Machined KnuckleRH Front Machined Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60. Package CABHex. Flanged Screw M10 X 60. Package CAB
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
300706203167 Sway-Bar. Package CABSway-Bar. Package CAB
-
310706203437 Clamp. Package CABClamp. Package CAB
-
320706002535 Cushion. Package CABCushion. Package CAB
-
330293550056 Grease Fitting 90°. Package CABGrease Fitting 90°. Package CAB
-
340250000951 Screw-Hex.Flange DIN.6921. Package CABScrew-Hex.Flange DIN.6921. Package CAB
-
350233221466 Elastic Flange Nut M12. Package CABElastic Flange Nut M12. Package CAB
-
360706202538 Stabilizer Bar Link LH. Package CABStabilizer Bar Link LH. Package CAB
-
370706202539 Stabilizer Bar Link RH. Package CABStabilizer Bar Link RH. Package CAB
-
380233201436 Flanged Elastic Nut M10. Package CABFlanged Elastic Nut M10. Package CAB
-
390234201474 Conical Spring Washer 10 mm. Package CABConical Spring Washer 10 mm. Package CAB
