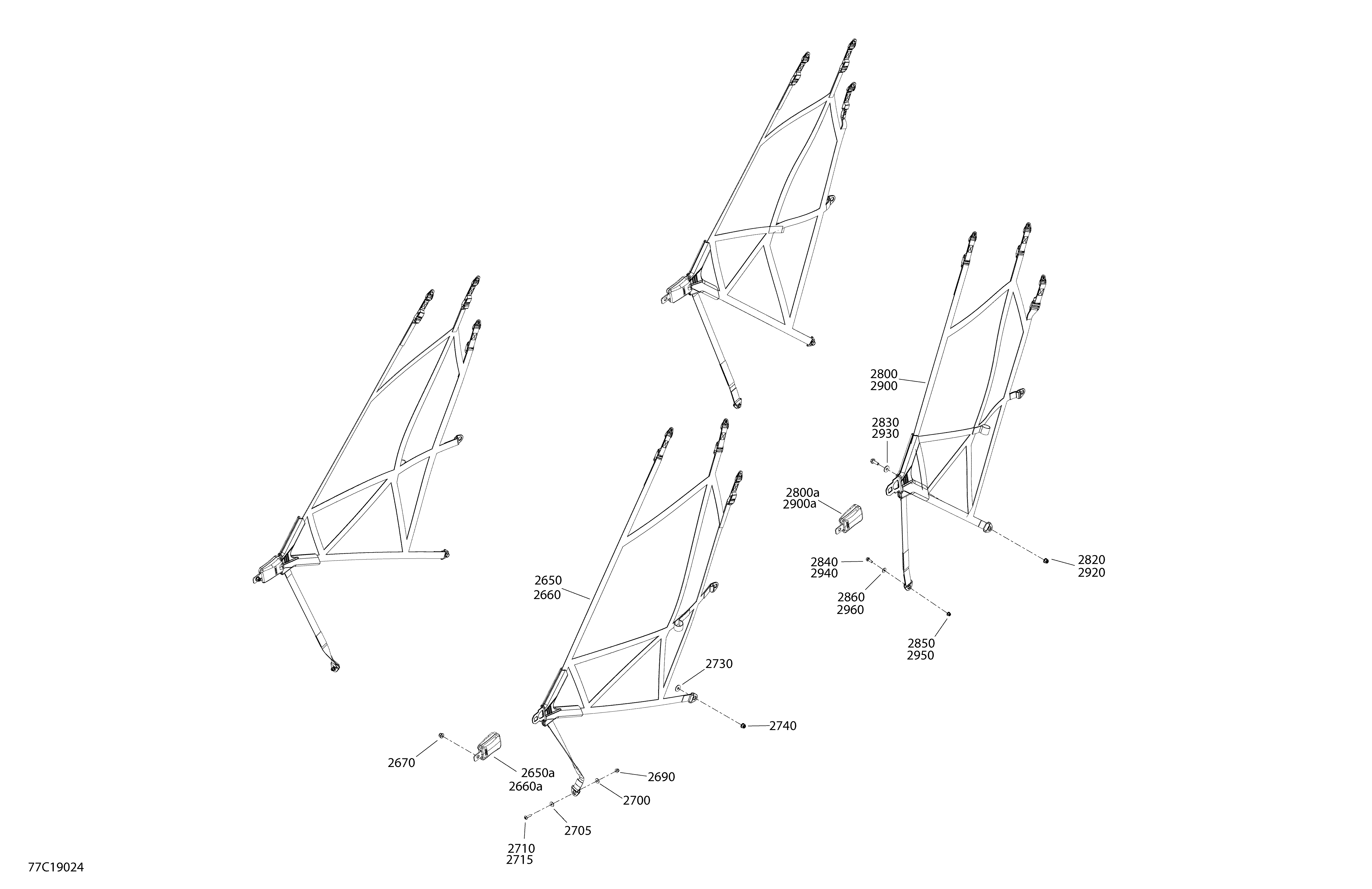

09- Cab Interior Commander MAX - Safety Net для BRP 003 - Commander MAX 800R EFI - North America - 2019

  • №
    Артикул
    Название
  • 2650
    707900237 Front LH Safety Net. Includes 2650 to 2650a
    Front LH Safety Net. Includes 2650 to 2650a
  • 2650a
    715900398 Buckle
    Buckle
  • 2660
    707900238 Front RH Safety Net. Includes 2660 to 2660a
    Front RH Safety Net. Includes 2660 to 2660a
  • 2660a
    715900398 Buckle
    Buckle
  • 2670
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2690
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 2700
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 2705
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2710
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2715
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 2730
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2740
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2800
    707900239 Rear LH Safety Net. Includes 2800 to 2800a
    Rear LH Safety Net. Includes 2800 to 2800a
  • 2800A
    715900398 Buckle
    Buckle
  • 2820
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2830
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2840
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2850
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 2860
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2900
    707900240 Rear RH Safety Net. Includes 2900 to 2900a
    Rear RH Safety Net. Includes 2900 to 2900a
  • 2900a
    715900398 Buckle
    Buckle
  • 2920
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2930
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2940
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2950
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 2960
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3600
    250000742 Torx Screw M5 X 14. Not Shown
    Torx Screw M5 X 14. Not Shown
  • 3610
    250200040 Flat Washer. Not Shown
    Flat Washer. Not Shown
  • 3615
    207562054 Flanged Hex. Screw S.GRIP M6 X 20. Not Shown
    Flanged Hex. Screw S.GRIP M6 X 20. Not Shown
  • 3620
    207682044 Hex. Flanged Screw M8 X 20. Not Shown
    Hex. Flanged Screw M8 X 20. Not Shown
  • 3625
    233281414 Hex. Flanged Elastic Nut M8. Not Shown
    Hex. Flanged Elastic Nut M8. Not Shown
