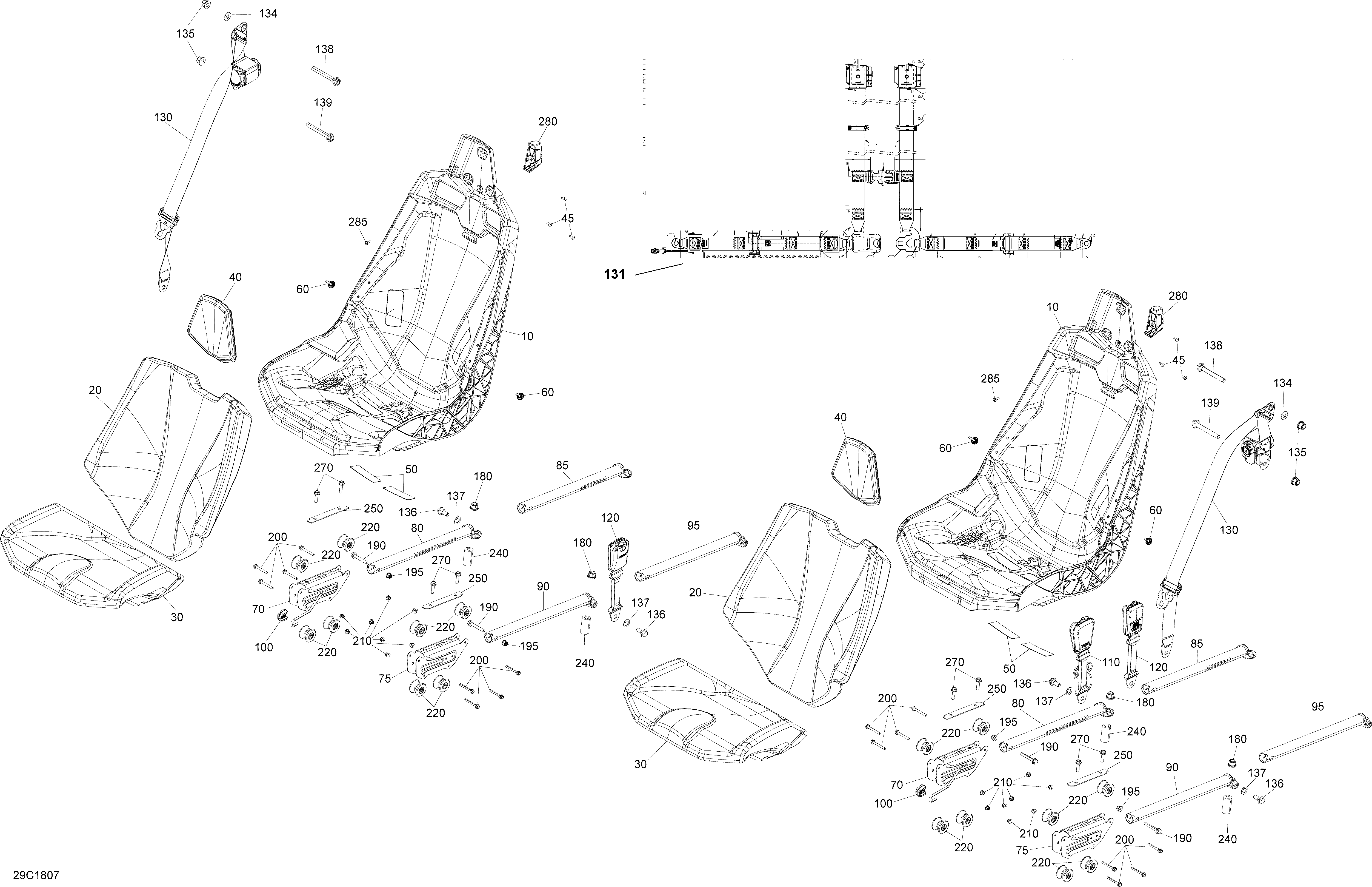

09- Seat Maverick X3 MAX -SML для BRP 92- Maverick X3 MAX Turbo R - XRS DPS - with Smart-Lok - 2018

  • №
    Артикул
    Название
  • 10
    708002065 Seat Shell
    Seat Shell
  • 20
    708002380 Backrest Ass'y
    Backrest Ass'y
  • 30
    708002382 Cushion Ass'y
    Cushion Ass'y
  • 35
    708002670 Stopper. Not Shown
    Stopper. Not Shown
  • 40
    708002131 Headrest
    Headrest
  • 45
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 50
    708002535 Velcro Tape
    Velcro Tape
  • 60
    708002533 Button Head Tie Rap
    Button Head Tie Rap
  • 70
    703500997 Trolley
    Trolley
  • 75
    708002298 Trolley
    Trolley
  • 80
    708002725 Painted Rail
    Painted Rail
  • 85
    708002578 Rail
    Rail
  • 90
    708002724 Painted Rail
    Painted Rail
  • 95
    708002575 Rail
    Rail
  • 100
    708002655 Handle
    Handle
  • 130
    708002654 Safety Belt Passenger. Except Package XRSDPS
    Safety Belt Passenger. Except Package XRSDPS
  • 130
    708002811 Safety Belt Driver Side. Except Package XRSDPS
    Safety Belt Driver Side. Except Package XRSDPS
  • 131
    708002388 4 Points Safety Belt Passenger. Package XRSDPS
    4 Points Safety Belt Passenger. Package XRSDPS
  • 131
    708002387 4 Point Safety Belt Driver Side. Package XRSDPS
    4 Point Safety Belt Driver Side. Package XRSDPS
  • 135
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 136
    708002504 Safety Belt screw
    Safety Belt screw
  • 137
    708000891 Position Washer
    Position Washer
  • 180
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 190
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 195
    233281464 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 200
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 210
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 220
    708002134 Wheel
    Wheel
  • 240
    708002299 Rear Bushing
    Rear Bushing
  • 250
    708002480 Plate
    Plate
  • 270
    207583044 Hex. Flanged Screw M8 X 30, Scotch Grip
    Hex. Flanged Screw M8 X 30, Scotch Grip
