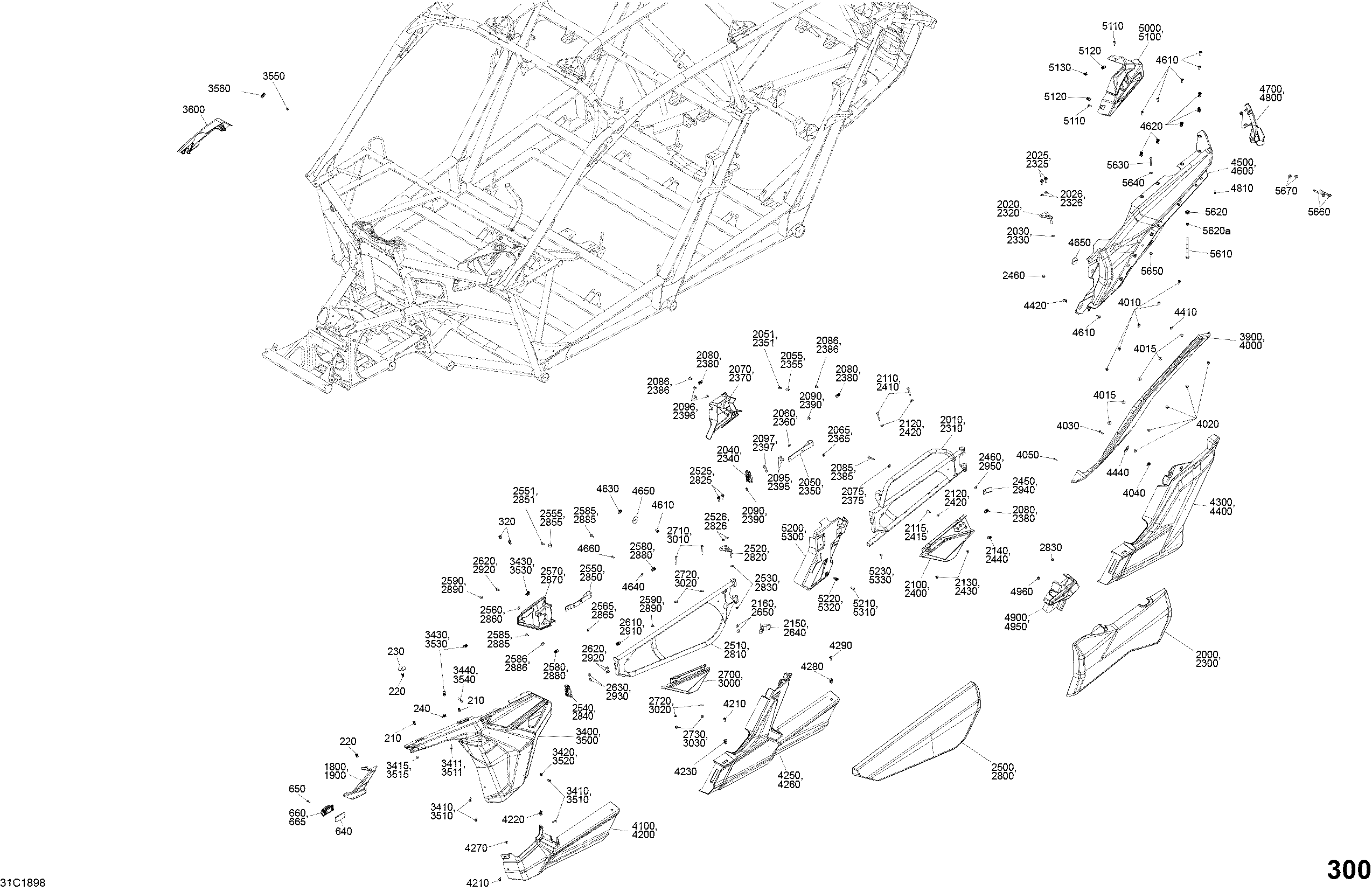

09- Body Parts - Circuit Yellow - Package XDS DPS - Side Section для BRP 91- Maverick X3 MAX Turbo R - STD_XDS DPS_XRS DPS - 2018

  • №
    Артикул
    Название
  • 210
    705010721 Clip
    Clip
  • 220
    517302785 Clip
    Clip
  • 230
    705003841 Support Plate
    Support Plate
  • 240
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 320
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 640
    520000271 Amber Reflector
    Amber Reflector
  • 650
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 660
    705011806 LH Reflector Support
    LH Reflector Support
  • 665
    705011814 RH Reflector Support
    RH Reflector Support
  • 1800
    705010628 LH Light Cover
    LH Light Cover
  • 1900
    705010629 RH Light Cover
    RH Light Cover
  • 2010
    705012246 Black LH Door Frame
    Black LH Door Frame
  • 2020
    705011187 Door Support
    Door Support
  • 2025
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2026
    234081430 Flat Washer M8
    Flat Washer M8
  • 2030
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 2040
    705012183 LH Latch
    LH Latch
  • 2050
    293850126 Belt
    Belt
  • 2051
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2055
    293900112 Bushing
    Bushing
  • 2060
    293730070 Belt Stopper
    Belt Stopper
  • 2065
    293730072 Belt Stopper
    Belt Stopper
  • 2070
    705011356 LH Latch Cover
    LH Latch Cover
  • 2075
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2080
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2085
    250000748 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 2086
    250000721 Torx Screw
    Torx Screw
  • 2090
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2095
    250000721 Torx Screw
    Torx Screw
  • 2096
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2097
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2100
    705011358 Left Lower Door Cover
    Left Lower Door Cover
  • 2110
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 2115
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2120
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2130
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2140
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2150
    293850129 Door Belt
    Door Belt
  • 2160
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2300
    705012251 Yellow RH Door Panel. Not Shown
    Yellow RH Door Panel. Not Shown
  • 2310
    705012247 Black RH Door Frame
    Black RH Door Frame
  • 2310
    705012249 Red RH Door Frame
    Red RH Door Frame
  • 2320
    705011187 Door Support
    Door Support
  • 2325
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2326
    234081430 Flat Washer M8
    Flat Washer M8
  • 2330
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 2340
    705012184 RH Latch
    RH Latch
  • 2350
    293850126 Belt
    Belt
  • 2351
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2355
    293900112 Bushing
    Bushing
  • 2360
    293730070 Belt Stopper
    Belt Stopper
  • 2365
    293730072 Belt Stopper
    Belt Stopper
  • 2370
    705011357 RH Latch Cover
    RH Latch Cover
  • 2375
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2380
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2385
    250000748 Torx Screw M6 X 45
    Torx Screw M6 X 45
  • 2386
    250000721 Torx Screw
    Torx Screw
  • 2390
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2395
    250000721 Torx Screw
    Torx Screw
  • 2396
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2397
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2400
    705011359 Right Lower Door Cover
    Right Lower Door Cover
  • 2410
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 2415
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2420
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2430
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2440
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2450
    293850129 Door Belt
    Door Belt
  • 2460
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2500
    705011113 Yellow LH Door Panel
    Yellow LH Door Panel
  • 2510
    705012562 Red LH Door Frame
    Red LH Door Frame
  • 2510
    705012564 Black LH Door Frame
    Black LH Door Frame
  • 2520
    705011187 Door Support
    Door Support
  • 2525
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2526
    234081430 Flat Washer M8
    Flat Washer M8
  • 2530
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 2540
    705012183 LH Latch
    LH Latch
  • 2550
    293850126 Belt
    Belt
  • 2551
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2555
    293900112 Bushing
    Bushing
  • 2560
    293730070 Belt Stopper
    Belt Stopper
  • 2565
    293730072 Belt Stopper
    Belt Stopper
  • 2570
    705010734 LH Latch Cover
    LH Latch Cover
  • 2580
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2585
    250000721 Torx Screw
    Torx Screw
  • 2586
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2590
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2610
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2620
    250000721 Torx Screw
    Torx Screw
  • 2630
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2640
    293850129 Door Belt
    Door Belt
  • 2650
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2700
    705010732 LH Lower Door Panel
    LH Lower Door Panel
  • 2710
    250000749 Torx Truss Screw M6 X 50
    Torx Truss Screw M6 X 50
  • 2720
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2730
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2800
    705011114 Yellow RH Door Panel
    Yellow RH Door Panel
  • 2810
    705012563 Red Door Frame
    Red Door Frame
  • 2810
    705012565 Black Door Frame
    Black Door Frame
  • 2820
    705011187 Door Support
    Door Support
  • 2825
    207582054 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2826
    234081430 Flat Washer M8
    Flat Washer M8
  • 2830
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 2840
    705012184 RH Latch
    RH Latch
  • 2850
    293850126 Belt
    Belt
  • 2851
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2855
    293900112 Bushing
    Bushing
  • 2860
    293730070 Belt Stopper
    Belt Stopper
  • 2865
    293730072 Belt Stopper
    Belt Stopper
  • 2870
    705010735 RH Latch Cover
    RH Latch Cover
  • 2880
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2885
    250000721 Torx Screw
    Torx Screw
  • 2886
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2890
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 2910
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2920
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2930
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2940
    293850129 Door Belt
    Door Belt
  • 2950
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 3000
    705010733 RH Lower Door Panel
    RH Lower Door Panel
  • 3010
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 3020
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3030
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 3400
    715004064 LH Front Lateral Panel Kit
    LH Front Lateral Panel Kit
  • 3410
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3411
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3415
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 3420
    293450274 Insert
    Insert
  • 3430
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 3440
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 3500
    715004074 RH Front Lateral Panel
    RH Front Lateral Panel
  • 3510
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3511
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 3515
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 3520
    293450274 Insert
    Insert
  • 3530
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 3540
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 3550
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 3560
    517303756 Grommet
    Grommet
  • 3600
    705010334 RH Side Panel Cover
    RH Side Panel Cover
  • 3900
    705009511 LH Rear Fender Deflector
    LH Rear Fender Deflector
  • 4000
    705009512 RH Rear Fender Deflector
    RH Rear Fender Deflector
  • 4010
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 4015
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 4020
    233161464 Hex. Elastic Flange Nut M6
    Hex. Elastic Flange Nut M6
  • 4030
    250000807 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 4040
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 4050
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 4100
    705009513 LH Central Lateral Panel
    LH Central Lateral Panel
  • 4200
    705009514 RH Central Lateral Panel
    RH Central Lateral Panel
  • 4210
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 4220
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 4230
    705010872 Insert
    Insert
  • 4250
    705011368 LH Rear Central Lateral Panel
    LH Rear Central Lateral Panel
  • 4260
    705011369 RH Rear Central Lateral Panel
    RH Rear Central Lateral Panel
  • 4270
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4280
    705010872 Insert
    Insert
  • 4290
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 4300
    705010676 LH Rear Lateral Panel
    LH Rear Lateral Panel
  • 4400
    705010677 RH Rear Lateral Panel
    RH Rear Lateral Panel
  • 4410
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4420
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 4440
    705003841 Support Plate
    Support Plate
  • 4500
    705011119 Yellow LH Rear Fender
    Yellow LH Rear Fender
  • 4600
    705011120 Yellow RH Rear Fender
    Yellow RH Rear Fender
  • 4610
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 4620
    705010872 Insert
    Insert
  • 4630
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 4640
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 4650
    705003841 Support Plate
    Support Plate
  • 4660
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 4700
    705010686 LH Rear Lateral Cover
    LH Rear Lateral Cover
  • 4800
    705010687 RH Rear Lateral Cover
    RH Rear Lateral Cover
  • 4810
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 4900
    705011579 LH Central Cage Trim
    LH Central Cage Trim
  • 4950
    705011580 RH Central Cage Trim
    RH Central Cage Trim
  • 4960
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 5000
    705010335 LH Rear Cage Trim
    LH Rear Cage Trim
  • 5100
    705010336 RH Rear Cage Trim
    RH Rear Cage Trim
  • 5110
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 5120
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 5130
    517302785 Clip
    Clip
  • 5200
    705012267 Yellow LH Central Door Trim
    Yellow LH Central Door Trim
  • 5210
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 5220
    705010872 Insert
    Insert
  • 5230
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 5300
    705012268 Yellow RH Central Door Trim
    Yellow RH Central Door Trim
  • 5310
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 5320
    705010872 Insert
    Insert
  • 5330
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 5610
    230683034 Hex. Flanged Screw M8 X 130
    Hex. Flanged Screw M8 X 130
  • 5630
    250000868 Torx Truss M6 X 50
    Torx Truss M6 X 50
  • 5640
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 5650
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 5660
    207687044 Hex. Flanged Screw M8 X 70
    Hex. Flanged Screw M8 X 70
  • 5670
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 5620>5620a
    269501943 Elastic Nut Housing M8. Includes 5620 to 5620a
    Elastic Nut Housing M8. Includes 5620 to 5620a
  • 5620a
    232581200 Hex. Elastic Nut M8, Brass
    Hex. Elastic Nut M8, Brass

Все узлы модели:
