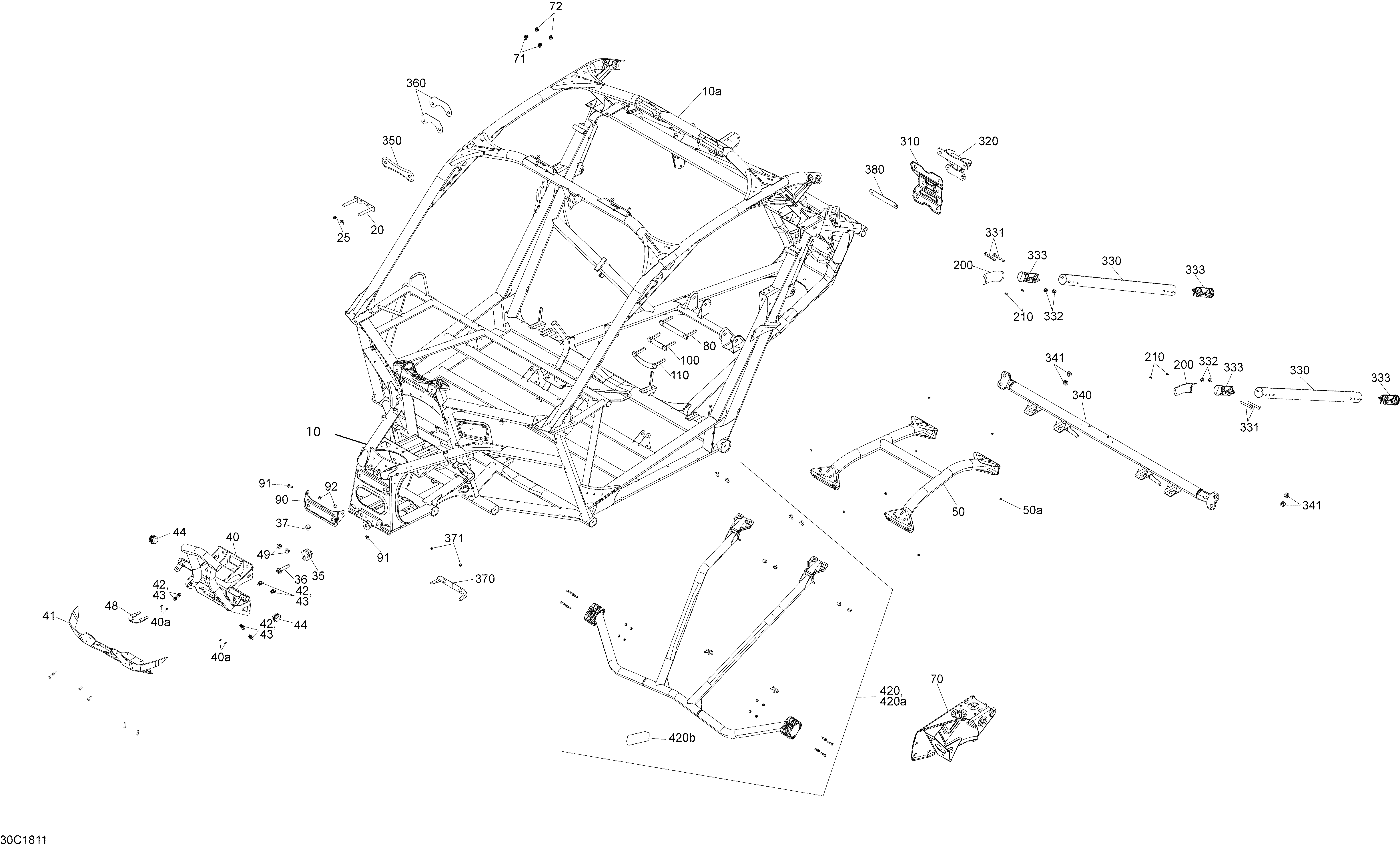

09- Frame - Package XRC для BRP 8- Maverick X3 Turbo R - XRC - 2018

  • №
    Артикул
    Название
  • 10
    715005027 Blue Frame. Includes 10 to 10a
    Blue Frame. Includes 10 to 10a
  • 10a
    715005034 Front Blue Cage Kit
    Front Blue Cage Kit
  • 20
    705206851 E-Coat Front Plate
    E-Coat Front Plate
  • 25
    207561044 Flanged Screw M6 X 10, Scotch Grip
    Flanged Screw M6 X 10, Scotch Grip
  • 35
    705206992 Bumper Link
    Bumper Link
  • 36
    250000987 Screw-Hex.Flange DIN.6921 M12X1.75
    Screw-Hex.Flange DIN.6921 M12X1.75
  • 37
    250000060 Flanged Screw M10 X 16, Scotch Grip
    Flanged Screw M10 X 16, Scotch Grip
  • 40
    705206868 Painted Blue Front Bumper
    Painted Blue Front Bumper
  • 41
    705206871 Front Master Plate
    Front Master Plate
  • 42
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 43
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 44
    705202455 Cap
    Cap
  • 48
    705206983 Painted U-Clamp
    Painted U-Clamp
  • 49
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 50
    705206720 Painted Added Cage
    Painted Added Cage
  • 70
    705206924 Painted DPS Support
    Painted DPS Support
  • 71
    207581244 Hex. Flanged Screw M8 X 12, Scotch Grip
    Hex. Flanged Screw M8 X 12, Scotch Grip
  • 72
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 80
    705206852 E-Coat Front Plate
    E-Coat Front Plate
  • 90
    705205564 Stifner Plate
    Stifner Plate
  • 91
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 92
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 100
    705206853 E-Coat Front Plate
    E-Coat Front Plate
  • 110
    705206854 E-Coat Rear Plate
    E-Coat Rear Plate
  • 200
    705206650 Link Painted Plate
    Link Painted Plate
  • 210
    293730076 Black Dart
    Black Dart
  • 310
    705205750 Rear Plate
    Rear Plate
  • 320
    705206865 Painted Rear Attachment Hook
    Painted Rear Attachment Hook
  • 330
    705206648 Painted Rear C-Member
    Painted Rear C-Member
  • 331
    250000901 Torx Truss M8 X 65
    Torx Truss M8 X 65
  • 332
    250100025 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 333
    705205634 Sleeve
    Sleeve
  • 340
    705205268 Belt Bar
    Belt Bar
  • 341
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 350
    705205294 Upper Link Arm
    Upper Link Arm
  • 360
    705205295 Lower Link Arm
    Lower Link Arm
  • 370
    706203122 Support
    Support
  • 371
    390402000 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 380
    705206069 Front Upper Plate
    Front Upper Plate
  • 420>420b
    715002889 Black Front Intrusion Bar. Turbo R Model. Includes 420 to 420b
    Black Front Intrusion Bar. Turbo R Model. Includes 420 to 420b
  • 420a
    715003531 Common Parts Kit
    Common Parts Kit
  • 420b
    704904566 CAN-AM Decal
    CAN-AM Decal
