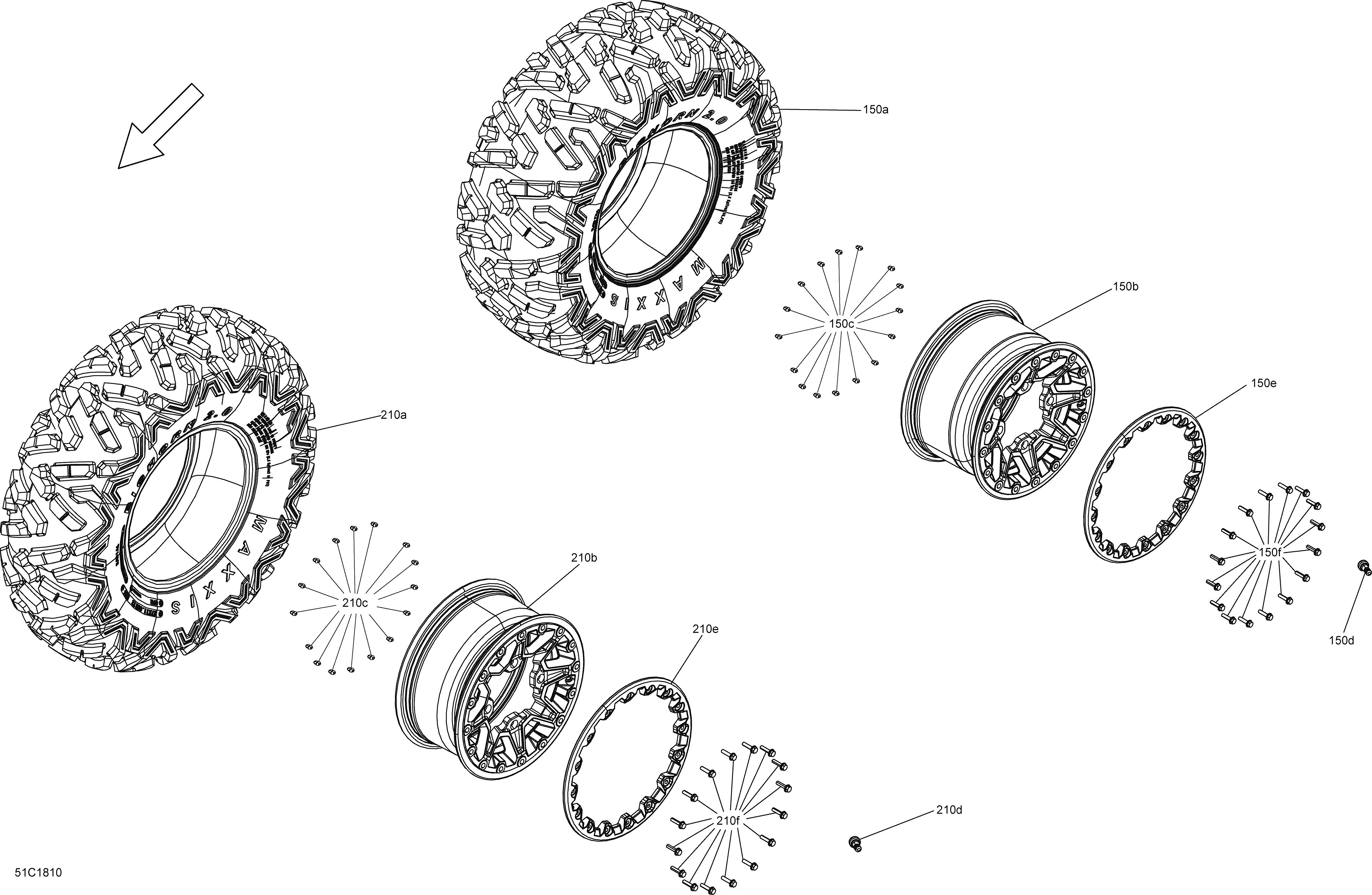

07- Wheels and Tires - Front and Rear - Package STD для BRP 2- Maverick X3 Turbo - STD - 2018
-
№АртикулНазвание
-
210a705402080 Front Tire Maxxis 28X9X14. Engine 903TCFront Tire Maxxis 28X9X14. Engine 903TC
-
210a705402080 Front Tire Maxxis 28X9X14. Engine 903TCICFront Tire Maxxis 28X9X14. Engine 903TCIC
-
210b705401965 Black Front RimBlack Front Rim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
150a705502603 Rear Tire Maxxis 28X11X14. Engine 903TCRear Tire Maxxis 28X11X14. Engine 903TC
-
150a705502603 Rear Tire Maxxis 28X11X14. Engine 903TCICRear Tire Maxxis 28X11X14. Engine 903TCIC
-
150b705502493 Black RimBlack Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
