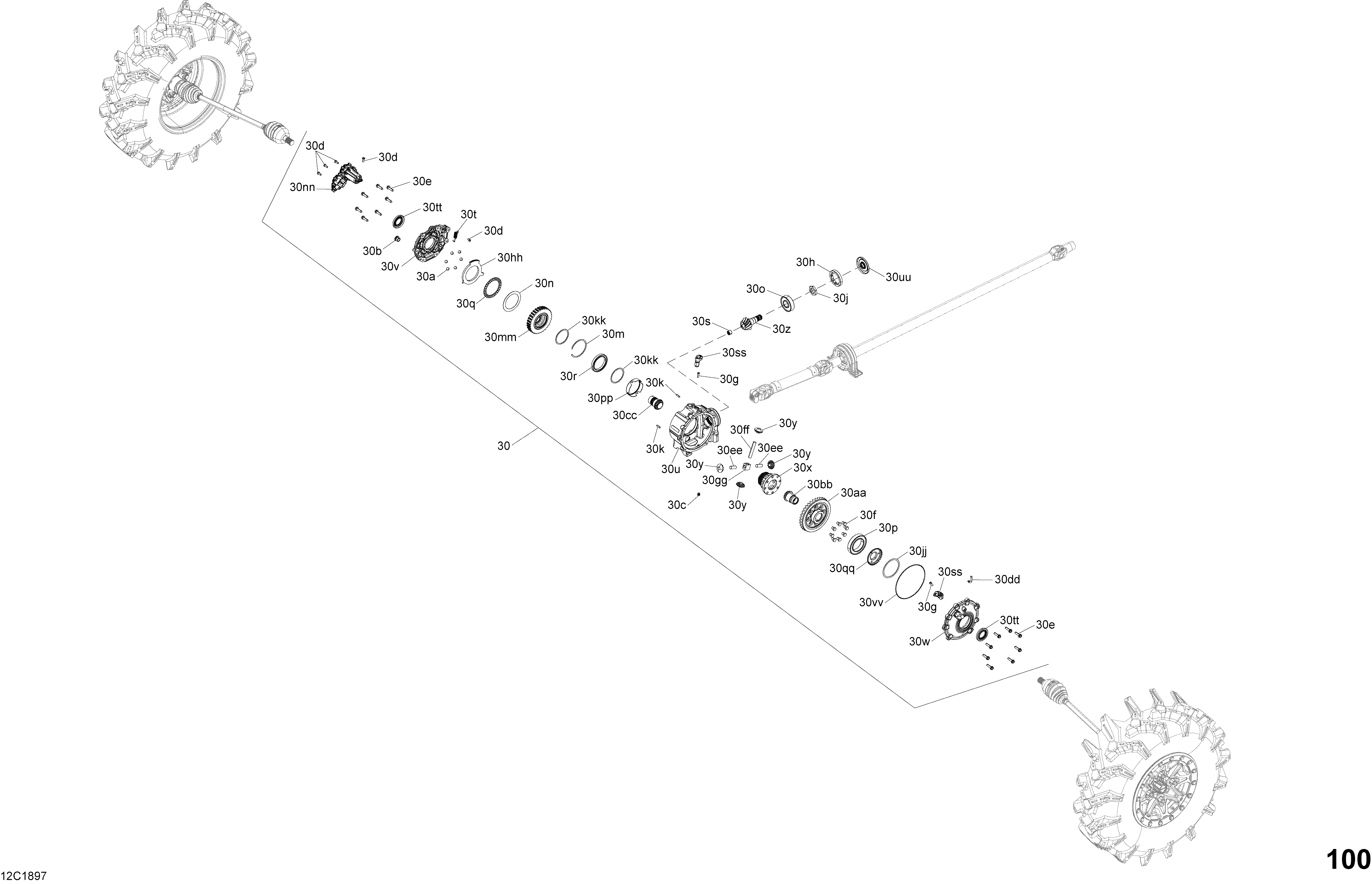

07- Front Drive - Differential Parts - Defender XMR для BRP 5- Defender HD10 - XMR - 2018
‹-+›
-
№АртикулНазвание
-
30705401631 Differential. Includes 30 to 30vvDifferential. Includes 30 to 30vv
-
30a715900564 BallBall
-
30aa715900547 Gear 36TGear 36T
-
30b705501889 Fill Level PlugFill Level Plug
-
30bb715900546 Gear 14TGear 14T
-
30c715900563 Fill Level Plug M10Fill Level Plug M10
-
30cc715900545 Gear 14TGear 14T
-
30d715900562 Torx Screw M6 X 16Torx Screw M6 X 16
-
30dd715900544 Vent TubeVent Tube
-
30e705501886 ScrewScrew
-
30ee715900543 Pinion Pin 0.5 X 1.250Pinion Pin 0.5 X 1.250
-
30f715900561 Screw Hex 3/8 X 0.500Screw Hex 3/8 X 0.500
-
30ff715900542 Pinion Pin 0.5 X 3.000Pinion Pin 0.5 X 3.000
-
30g715900560 Torx Screw M6 X 12Torx Screw M6 X 12
-
30gg715900541 Coupler, PinCoupler, Pin
-
30h705401819 NutNut
-
30hh715900540 Ramp BallRamp Ball
-
30j705401820 NutNut
-
30jj715900539 Shim 74.50 X 66.00Shim 74.50 X 66.00
-
30k715900559 Dowel PinDowel Pin
-
30kk715900538 Shim 3.735 X 3.300Shim 3.735 X 3.300
-
30m715900558 Retainin RingRetainin Ring
-
30mm715900537 Clutch PackClutch Pack
-
30n715900557 Thrust WasherThrust Washer
-
30nn715900536 Actuator AssemblyActuator Assembly
-
30o705401821 Ball BearingBall Bearing
-
30p715900556 Ball Bearing 60 X 95 X 18Ball Bearing 60 X 95 X 18
-
30pp715900535 Cross Pin RetainerCross Pin Retainer
-
30q715900555 Needle BearingNeedle Bearing
-
30qq715900534 Tone Ring 30TTone Ring 30T
-
30r715900554 Ball Bearing 65 X 85 X 10Ball Bearing 65 X 85 X 10
-
30s705401607 Needle BearingNeedle Bearing
-
30ss715900532 Speed SensorSpeed Sensor
-
30t715900553 SpringSpring
-
30tt715900531 Oil SealOil Seal
-
30u715900552 HousingHousing
-
30uu705401827 Oil SealOil Seal
-
30v715900551 Cover RHCover RH
-
30vv715900530 O-RingO-Ring
-
30w715900550 Cover LHCover LH
-
30x715900549 HousingHousing
-
30y715900548 Pinion 10TPinion 10T
-
30z705401933 Pinion 10 th.Pinion 10 th.
