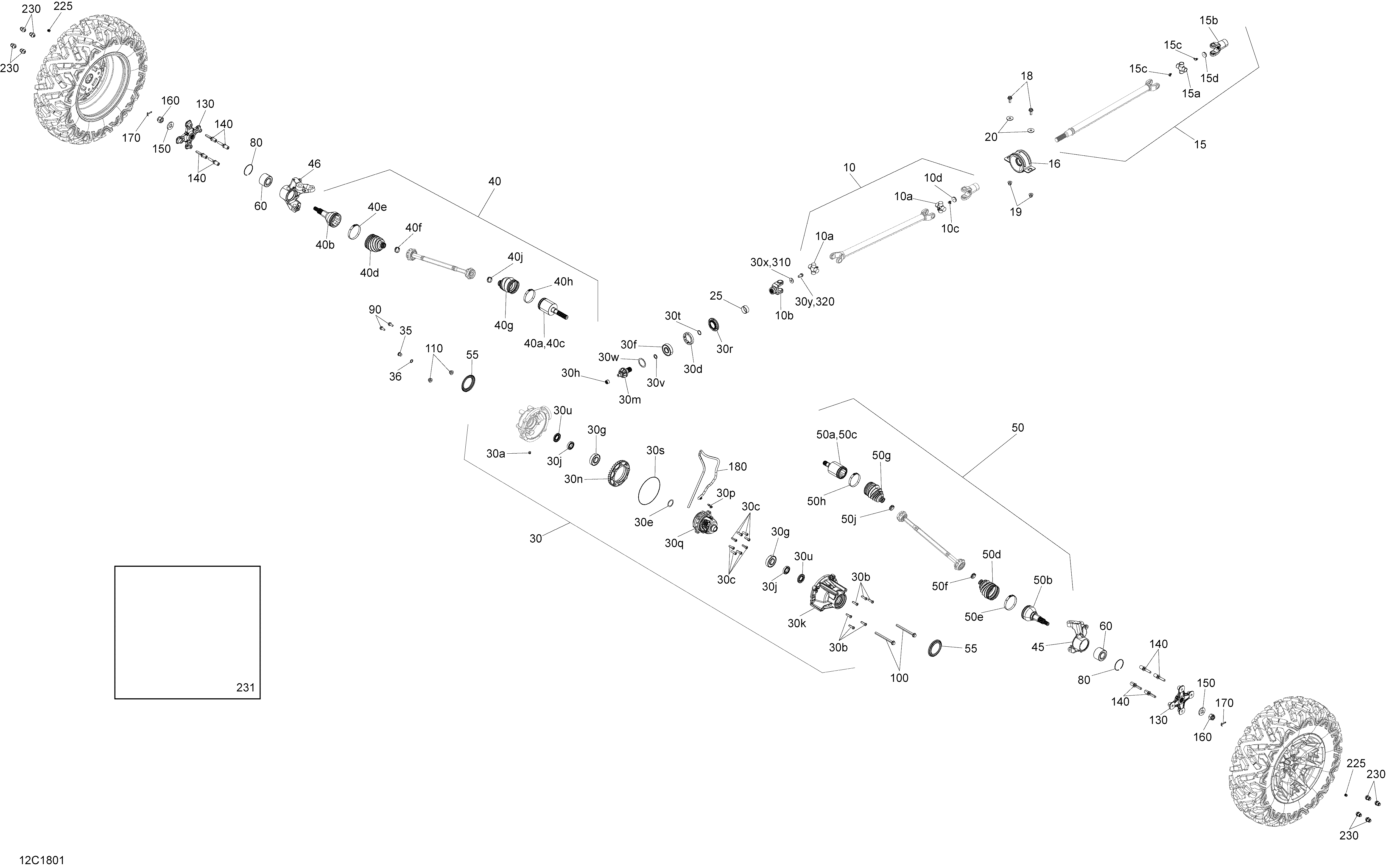

07- Front Drive - Commander для BRP 3- Commander MAX 800R EFI - 2018
-
№АртикулНазвание
-
10>10d705402066 Axle Drive Ass'y. Includes 10 to 10dAxle Drive Ass'y. Includes 10 to 10d
-
10a715900435 U-Joint Cross KitU-Joint Cross Kit
-
10b715900231 Yoke JointYoke Joint
-
10c703500815 Grease FittingGrease Fitting
-
10d715900483 CoverCover
-
15>15d705402041 Drive Axle Ass'y . MAX Models. Includes 15 to 15dDrive Axle Ass'y . MAX Models. Includes 15 to 15d
-
15a715900435 U-Joint Cross Kit. MAX ModelsU-Joint Cross Kit. MAX Models
-
15b715900231 Yoke Joint. MAX ModelsYoke Joint. MAX Models
-
15c703500815 Grease Fitting. MAX ModelsGrease Fitting. MAX Models
-
15d715900483 Cover. MAX ModelsCover. MAX Models
-
16705401646 Ball Bearing. MAX ModelsBall Bearing. MAX Models
-
18207602544 Hex. Flanged Screw M10 X 25. MAX ModelsHex. Flanged Screw M10 X 25. MAX Models
-
19233201414 Hex. Flanged Elastic Nut M10. MAX ModelsHex. Flanged Elastic Nut M10. MAX Models
-
20503032900 Washer. MAX ModelsWasher. MAX Models
-
30>30y703500907 Front Differential. Package STD. Includes 30 to 30yFront Differential. Package STD. Includes 30 to 30y
-
30>30y703500908 Front Differential. Package Hunter. Includes 30 to 30yFront Differential. Package Hunter. Includes 30 to 30y
-
30>30y703500908 Front Differential. Package XT. Includes 30 to 30yFront Differential. Package XT. Includes 30 to 30y
-
30>30y703500908 Front Differential. Package LTD. Includes 30 to 30yFront Differential. Package LTD. Includes 30 to 30y
-
30>30y703500908 Front Differential. Package DPS. Includes 30 to 30yFront Differential. Package DPS. Includes 30 to 30y
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401610 Front CoverFront Cover
-
30m705401791 Pinion 10 TeethPinion 10 Teeth
-
30n705401612 Gear 36 TeethGear 36 Teeth
-
30p705401613 Vent ValveVent Valve
-
30q705401614 Differential. Package STDDifferential. Package STD
-
30q705401506 Differential. Package HunterDifferential. Package Hunter
-
30q705401506 Differential. Package XTDifferential. Package XT
-
30q705401506 Differential. Package LTDDifferential. Package LTD
-
30q705401506 Differential. Package DPSDifferential. Package DPS
-
30r705401615 Oil SealOil Seal
-
30s705401616 SealSeal
-
30t705401617 O'RingO'Ring
-
30u705401618 GasketGasket
-
30v705401769 ShimShim
-
30w705401770 ShimShim
-
30x250200014 Flat Washer M10Flat Washer M10
-
30y250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40>40j705401872 RH Half Shaft. Includes 40 to 40jRH Half Shaft. Includes 40 to 40j
-
40a715900431 RH Plunging JointRH Plunging Joint
-
40b715900427 CV JointCV Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
40e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40g705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
40h715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
40j715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
50>50j705401871 LH Half Shaft. Includes 50 to 50jLH Half Shaft. Includes 50 to 50j
-
50a715900430 LH Plunging JointLH Plunging Joint
-
50b715900427 CV JointCV Joint
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
50e715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50g705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
50h715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
50j715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
55705400780 Wear SleeveWear Sleeve
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
130705401314 Wheel Hub. Engine 800 EFIWheel Hub. Engine 800 EFI
-
130705501900 Wheel Hub. MAX ModelsWheel Hub. MAX Models
-
130705501900 Wheel Hub. Engine 1000 EFIWheel Hub. Engine 1000 EFI
-
140250300060 Wheel Stud. MAX ModelsWheel Stud. MAX Models
-
140250300060 Wheel Stud. Engine 1000 EFIWheel Stud. Engine 1000 EFI
-
140705401964 Wheel Stud. Engine 800 EFIWheel Stud. Engine 800 EFI
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
200705400921 Wheel Cap. Package STDWheel Cap. Package STD
-
200705401541 Wheel Cap. All Package Except STDWheel Cap. All Package Except STD
-
225293000110 Valve CapValve Cap
-
230250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
230250100184 Black Wheel Nut M10 X 1.25. Package LTDBlack Wheel Nut M10 X 1.25. Package LTD
-
230250100184 Black Wheel Nut M10 X 1.25. Package XTBlack Wheel Nut M10 X 1.25. Package XT
-
230250100184 Black Wheel Nut M10 X 1.25. Package DPSBlack Wheel Nut M10 X 1.25. Package DPS
-
231703501006 Side Gear KitSide Gear Kit
-
230250100184 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
