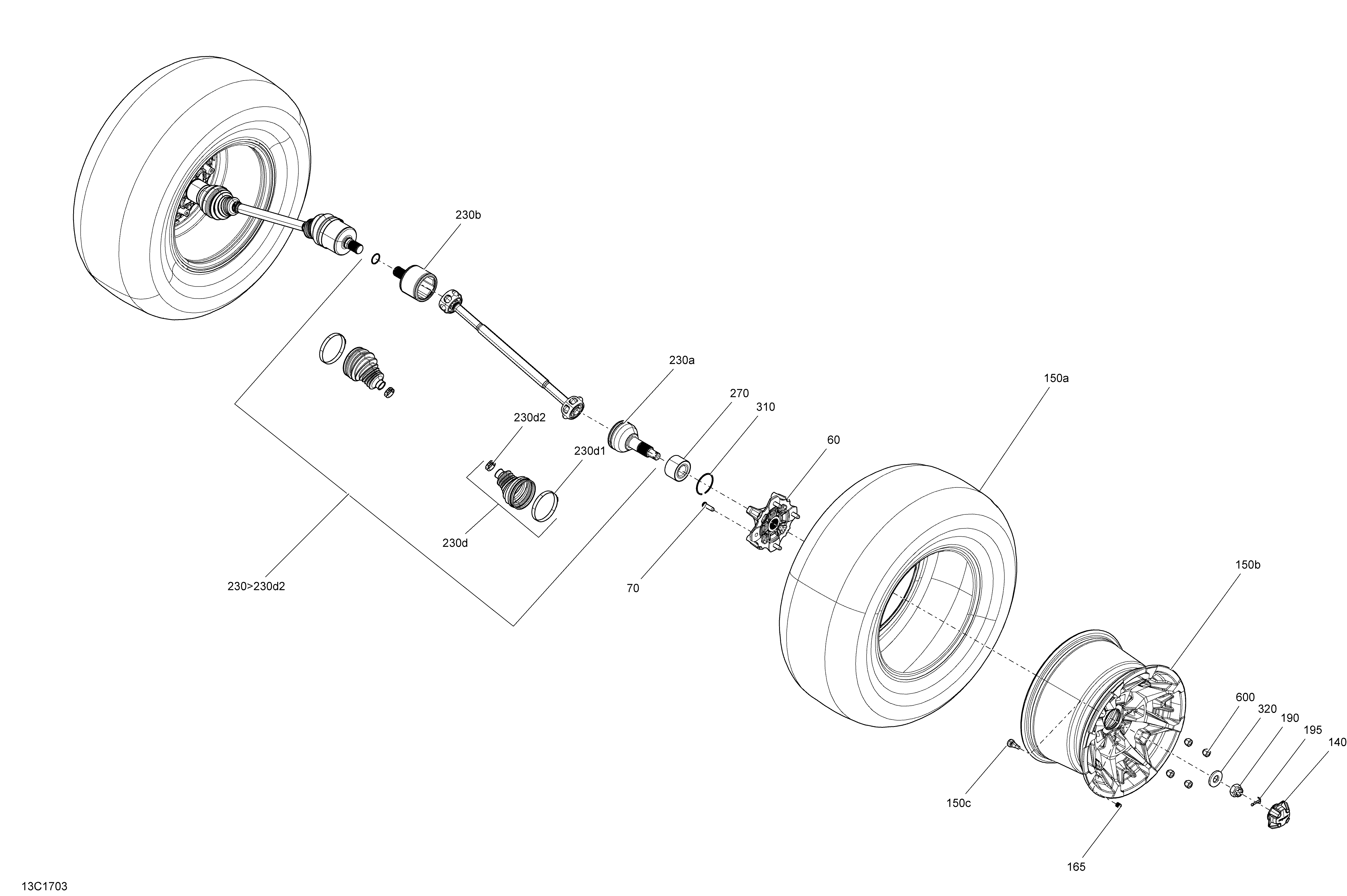

08- Drive System, Rear для BRP Traxter T - 2017
-
№АртикулНазвание
-
60705502338 Wheel HubWheel Hub
-
70250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
140705401541 Wheel CapWheel Cap
-
150a705502576 Rear TireRear Tire
-
150b705502103 Black Rear RimBlack Rear Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
165293000110 Valve CapValve Cap
-
600250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
190250100161 Castle Nut M20Castle Nut M20
-
195250400071 Cotter PinCotter Pin
-
230>230e705502451 CV Joint. Includes 230 to 230d2CV Joint. Includes 230 to 230d2
-
230a715900429 CV JointCV Joint
-
230b715900444 Plunging JointPlunging Joint
-
230c705501781 CirclipCirclip
-
230d705501777 Rubber Boot Kit. Includes 230d to 230d2Rubber Boot Kit. Includes 230d to 230d2
-
230d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230e715900579 O-Ring. Not Illustrated. For Plunging JointO-Ring. Not Illustrated. For Plunging Joint
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200147 Washer M20Washer M20
